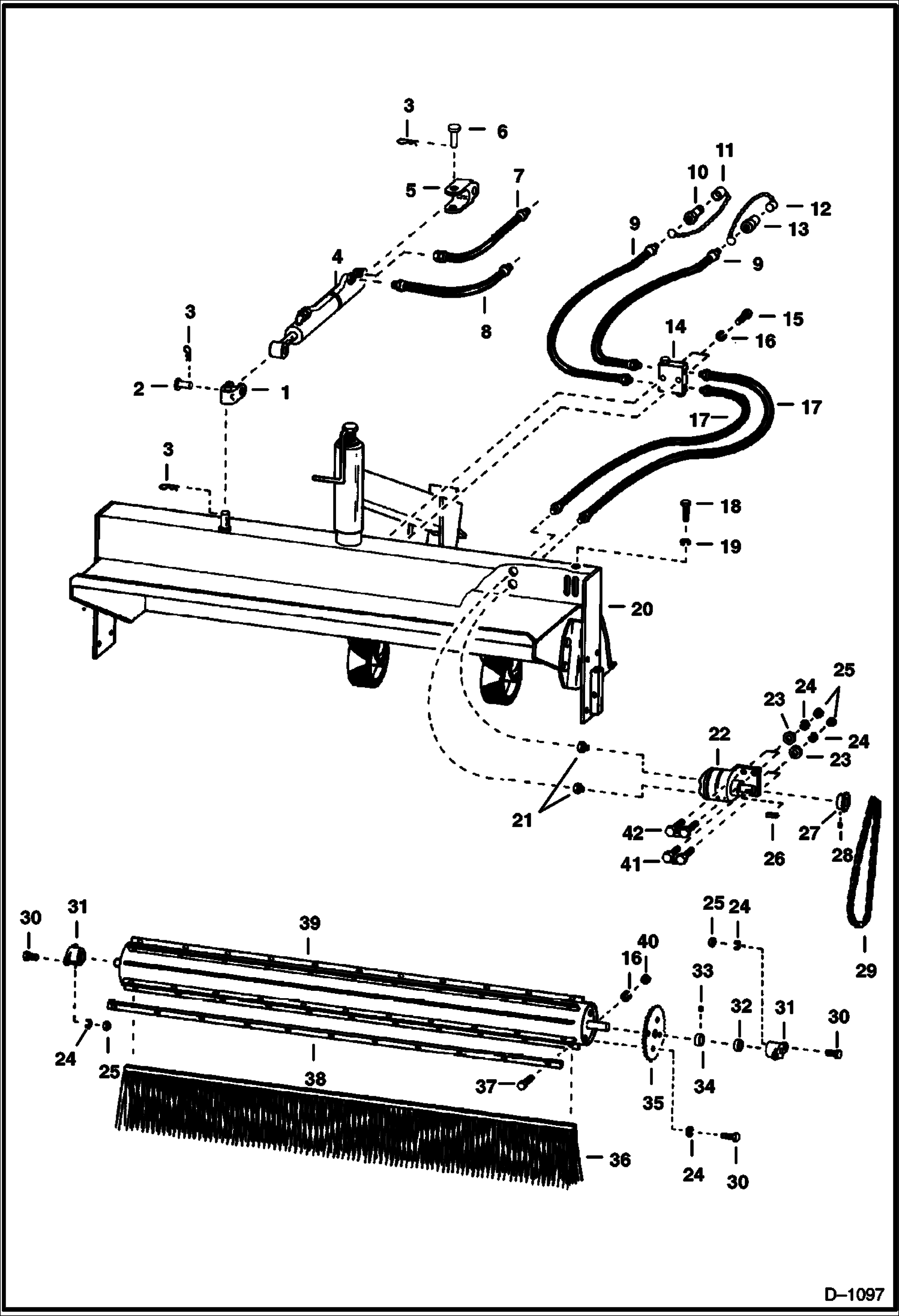

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (A 1014) (A 1015) Loader

1

6508334

BRACKET

2

6520730

PIN

3

1320075

PIN, COTTER

4

CYLINDER See Illustration ANGLE BROOM/ B18032

5

6508333

BRACKET

6

6520729

PIN

7

6501050

HOSE Was 6508336 - A

8

6508337

HOSE

9

6508527

HOSE hydraulic

9

6508345

HOSE

10

6598755

QUICK COUPLER male half

11

6515168

CAP W/Chain

12

6515167

PLUG W/Chain

13

6598756

QUICK COUPLER female half

13

25K40026

O RING 10

14

VALVE See Illustration ANGLE BROOM/ B1154 - cushion

15

17C536

BOLT

16

4E5

WASHER

17

550873

HOSE

18

17C832

BOLT

19

4E8

WASHER

20

MAIN FRAME See Illustration ANGLE BROOM/ D1098

21

19F9

BUSHING

22

6515465

MOTOR See Illustration ANGLE BROOM/ B1141 hydraulic

23

25E19

WASHER

24

4E7

WASHER

25

61D7

NUT

26

7J2104

KEY square

27

6520616

SPROCKET

28

15G406

SCREW

29

6508335

CHAIN No. 40 - 94 pitches - W/Connector Link

29

6564943

LINK connector

30

17C724

BOLT

31

6531100

BEARING W/Ref. 32 - 34 - Was 6518258 - A

32

6518259

BEARING

33

SET SCREW NLA - Was 16G000404B

34

6515095

COLLAR locking - W/Ref. 33

35

6508602

SPROCKET

36

6508338

BRISTLE polypropylene

36

6508596

BRISTLE wire

37

17C520

BOLT 5

38

6508460

STRAP brush retainer

39

6508332

CORE brush

40

61D5

NUT

41

6508344

BRACKET

42

6508331

BRACKET
