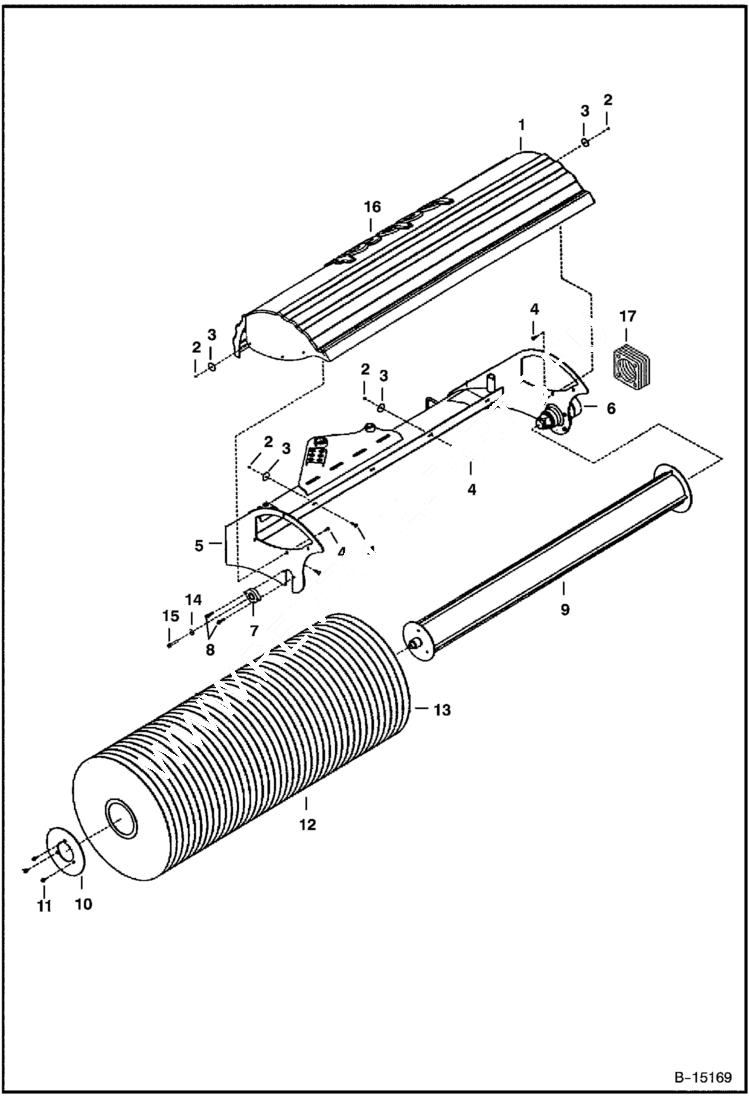

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Brushes & Housing) (84 662700101 & Above) Телескопические мини-погрузчики

1

6714195

COVER

2

NUT NLA - acorn cap - Order 57D6 nut & Ref. 4 (37C620 bolt) - Used W/NLA 37C616 bolt - 25,4 mm (1'') long - Was 7140309 - A

2

57D6

NUT 5 flanged hex - Use W/Ref. 4 (37C620 bolt) 31,75 mm (1.25'') long

3

6705232

WASHER

4

BOLT NLA - 25,4 mm (1'') long - Order 37C620 bolt & Ref. 2 (57D6 nut) - Used W/NLA 7140309 nut - Was 37C616 - B

4

37C620

BOLT 31,75 mm (1.25'') long - Use W/Ref. 2 (57D6 nut)

5

MAIN FRAME See Illustration ANGLE BROOM/ NA6378

6

DRIVE ASSY See Illustration ANGLE BROOM/ B15170

7

6672623

BEARING, FLANGE

8

35C628

BOLT

9

6714201

SHAFT, BROOM 2134 mm (84'') broom

9

7130505

SHAFT 2134 mm (84'') broom

10

6714171

PLATE

11

35C616

BOLT 5

12

6672506

BRUSH, POLY CONVOLUTED 32'' factory option

12

6988135

WAFER, 32' EARTHFORCE CONVOLUTED

12

6989023

BRISTLE, POLY HD 32'' CONVOLUTED

12

BRUSH, STEEL CONVOLUTED 32'' NLA - factory option - broom should not use more than 1/2 steel brushes - Order 6989022 bristle - Was 6672505 - A

12

6989022

BRISTLE, WIRE 32'' CONVOLUTED broom should not use more than 1/2 steel brushes

12

BRUSH, POLY/STEEL CONVOLUTED 32'' NLA - Order 6989143 bristle - Was 6904619 - A

12

6989143

BRISTLE, POLY/WIRE 32'' CONVOLUTED

13

6672504

BRUSH, POLY FLAT 32'' factory option - installed on ends of brush assembly

13

6988134

WAFER, 32' EARTHFORCE FLAT installed on ends of brush assembly

13

6989021

BRISTLE, POLY HD 32'' FLAT installed on ends of brush assembly

14

6905026

WASHER

15

35C820

BOLT Was 35C000816B - B

16

7115620

DECAL logo

17

7121368

SPACER service only - See Serviceletter
