Запчасти Bobcat 3 POINT ATTACHMENTS TINE RAKE (Frame & Tines) (3TR72 A1FT) (3TR84 A1FU) Loader

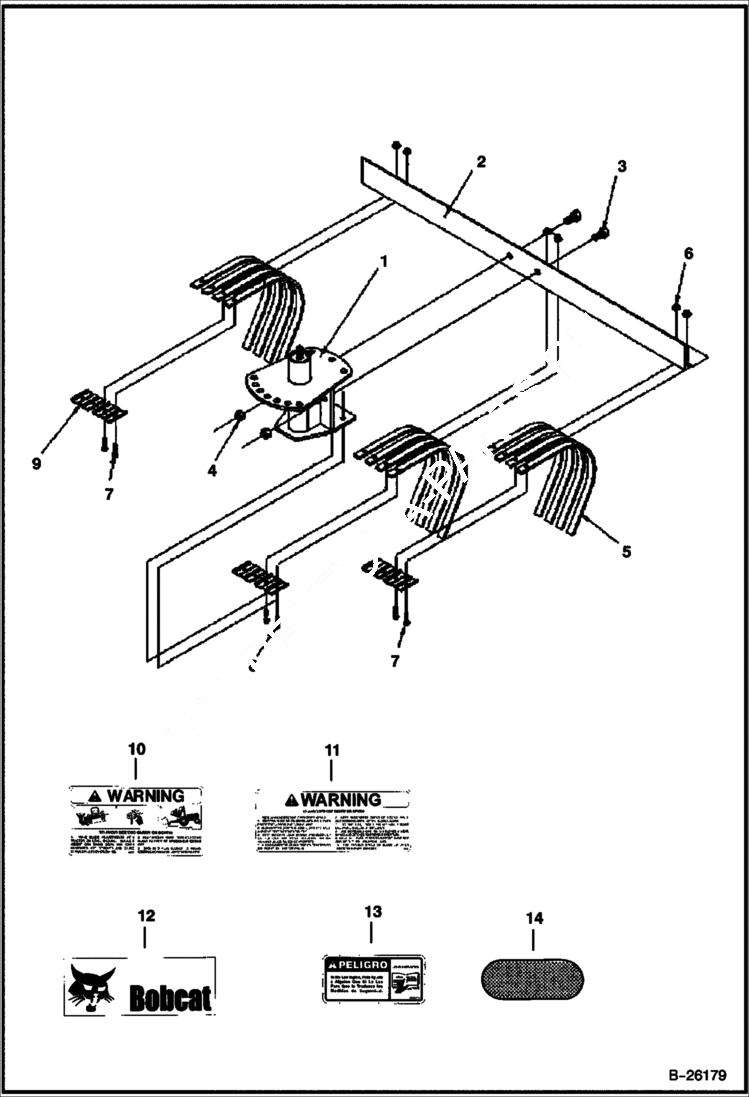

Схема запчастей Bobcat 3 POINT ATTACHMENTS - TINE RAKE (Frame & Tines) (3TR72 A1FT) (3TR84 A1FU) Loader

Артикул

Название

Примечание

Количество

1

6689970

MOUNT

2

6689971

ANGLE 3LR72

2

6689972

ANGLE 3LR84

3

17C1224

BOLT

4

85D12

NUT, 5

5

6689973

TINE Qty. (30) for 3LR73, (36) for 3LR84

6

4528

NUT Qty. (30) for 3LR73, (36) for 3LR84

7

00023100

BOLT Qty. (26) for 3LR73, (32) for 3LR84

8

00007000

BOLT

9

6689974

CLIP Qty. (15) for 3LR73, (18) for 3LR84

10

999000

DECAL Warning - multiple hazard - blades

11

999200

DECAL Warning - multiple hazard

12

7109473

DECAL, LOGO BOBCAT AND HEAD

13

00725746

DECAL translate safety manual

14

2738332

DECAL red reflector

Выбрано товаров: 15
