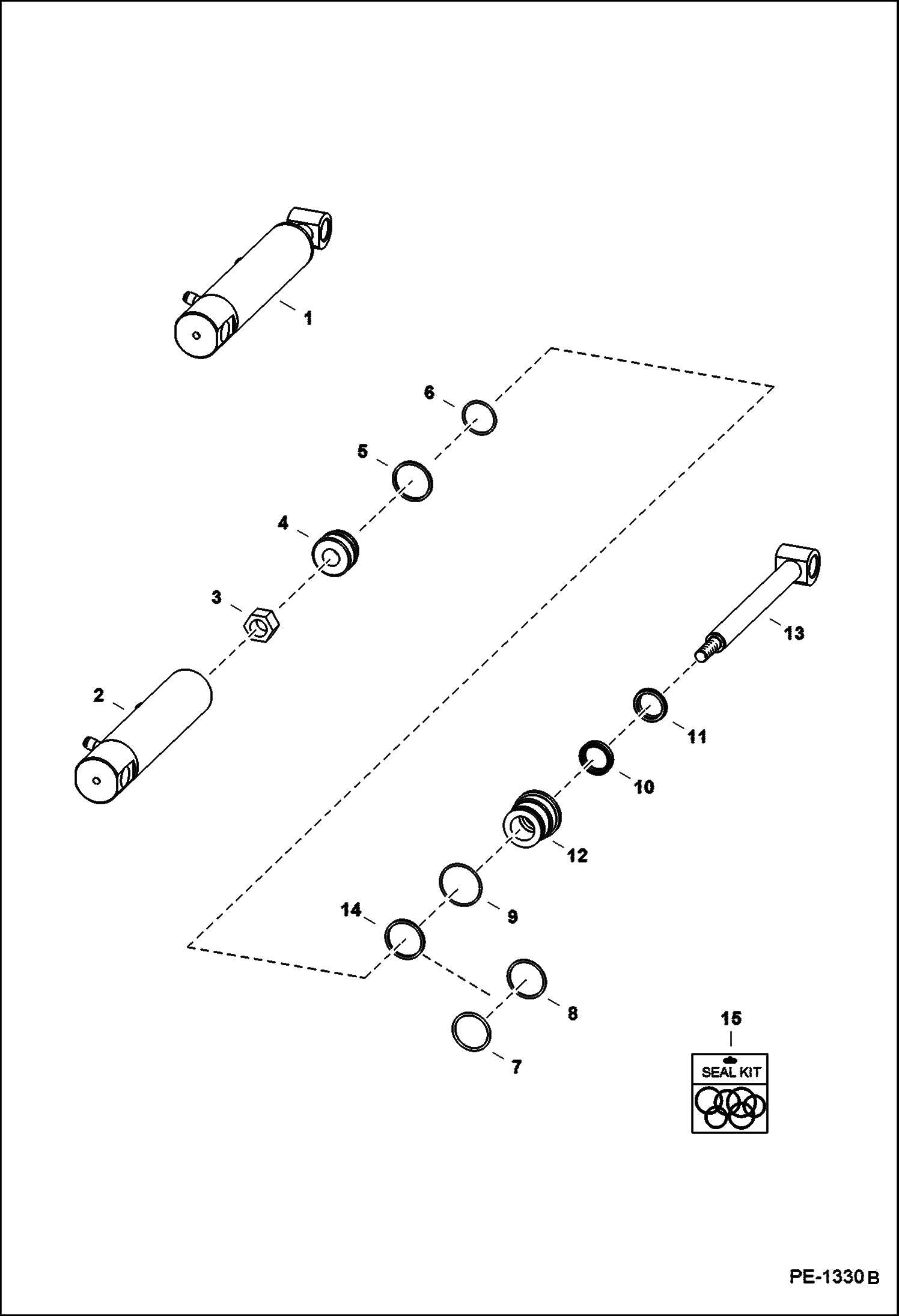

Запчасти Bobcat 3 POINT ATTACHMENTS SOIL CONDITIONER (Cylinder - Angle Control) (3SC60H AH8P) (3SC60M AJKZ) (3SC72H AH8L) (3SC72M AJL4) Loader

1

6809501

CYLINDER Ref. 2-13

2

6807379

CASE

3

92D14

NUT

4

6516231

SEAL

5

54K30118

O-RING

6

6808338

PISTON W/Ref. 4 & 5 - W/non-replaceable wear sleeves

7

54K40124

O-RING

8

73K224

RING back-up

9

82K136

O-RING Was 58K136 - B

10

6667324

SEAL rod

11

6665208

SEAL wiper

12

6539323

HEAD

13

6809580

ROD

14

7008781

SEAL, QUAD

15

7137770

KIT, SEAL CYLINDER Ref. 3-5, 9-11, & 14 - Was 6804927 - A
