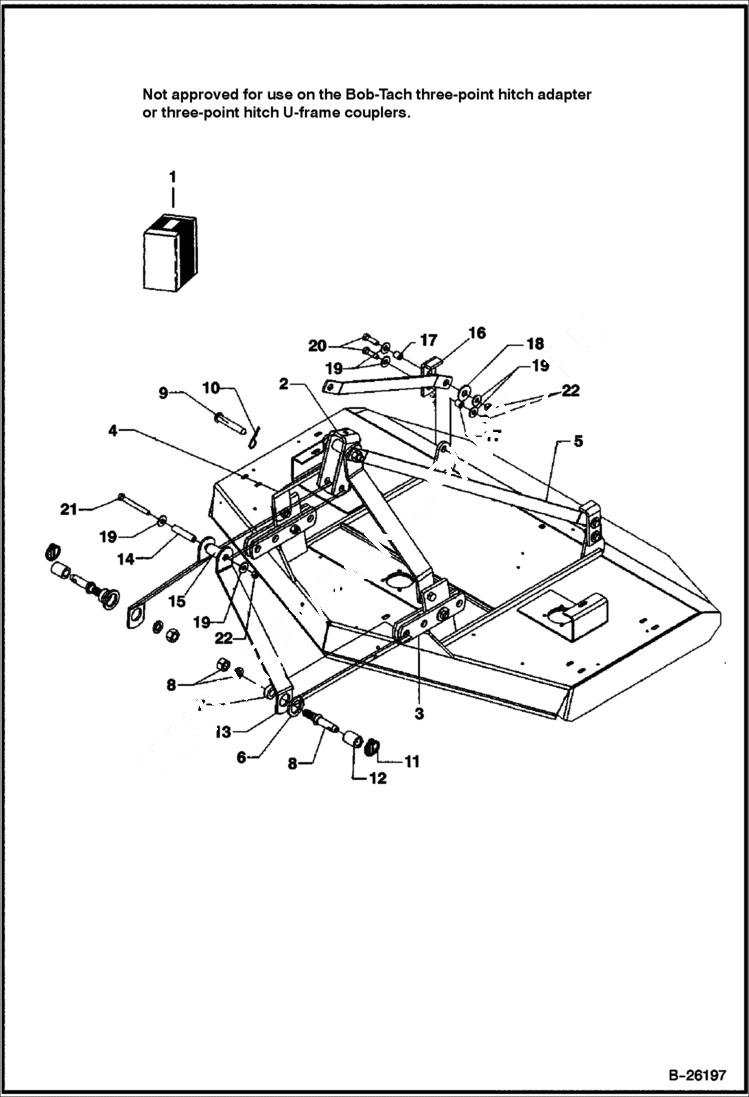

Запчасти Bobcat 3 POINT ATTACHMENTS MOWER (Quick Attach Hitch Kit) (3FM60 A1FR) (3FM72 A1FS) Loader

1

7125089

KIT quick attach hitch - Ref. 6 & 12-22

2

6689815

BAR top link

3

6689816

BAR hitch

4

6689817

BAR A-frame

5

6689818

BAR rear lift strap

6

00777568

SPACER

7

6689874

BUSHING

8

00603500

PIN Cat I - W/washer & nut

9

37107B12

PIN top link Cat I

10

37107B13

PIN

11

2196

PIN

12

6690148

BUSHING lower outside hitch pin

13

6690149

BAR front hitch

14

6690150

BUSHING upper inside hitch pin

15

6690151

BUSHING upper outer hitch pin

16

6690152

BAR toggle

17

6690153

BUSHING rear toggle

18

00002701

WASHER

19

00002700

WASHER

20

17C828

BOLT

21

17C872

BOLT

22

85D8

NUT, 5
