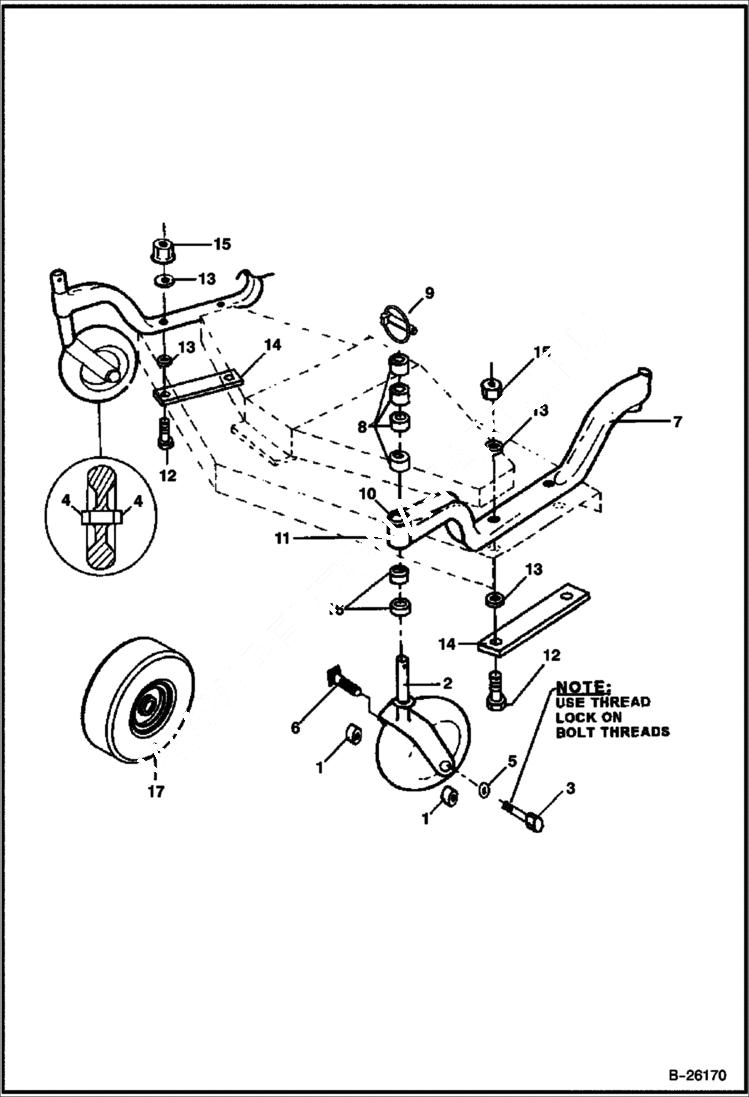

Запчасти Bobcat 3 POINT ATTACHMENTS MOWER (Castor Wheels & Tires) (3FM60 A1FR) (3FM72 A1FS) Loader

1

6689901

SPACER

2

6689843

FORK

3

17C816

BOLT

4

6689904

BUSHING

5

00002700

WASHER

6

00778145

PIN axle

7

6689844

ARM

8

6689905

SPACER

9

4805

PIN

10

6689906

FLANGE bearing

11

4720

GREASE FITTING

12

17C656

BOLT

13

27E6

WASHER 5

14

6689845

PLATE 3FM72

15

83D6

NUT 5

16

6689907

SPACER

17

6689909

TIRE, ASSEMBLY solid tire & wheel assy - complete
