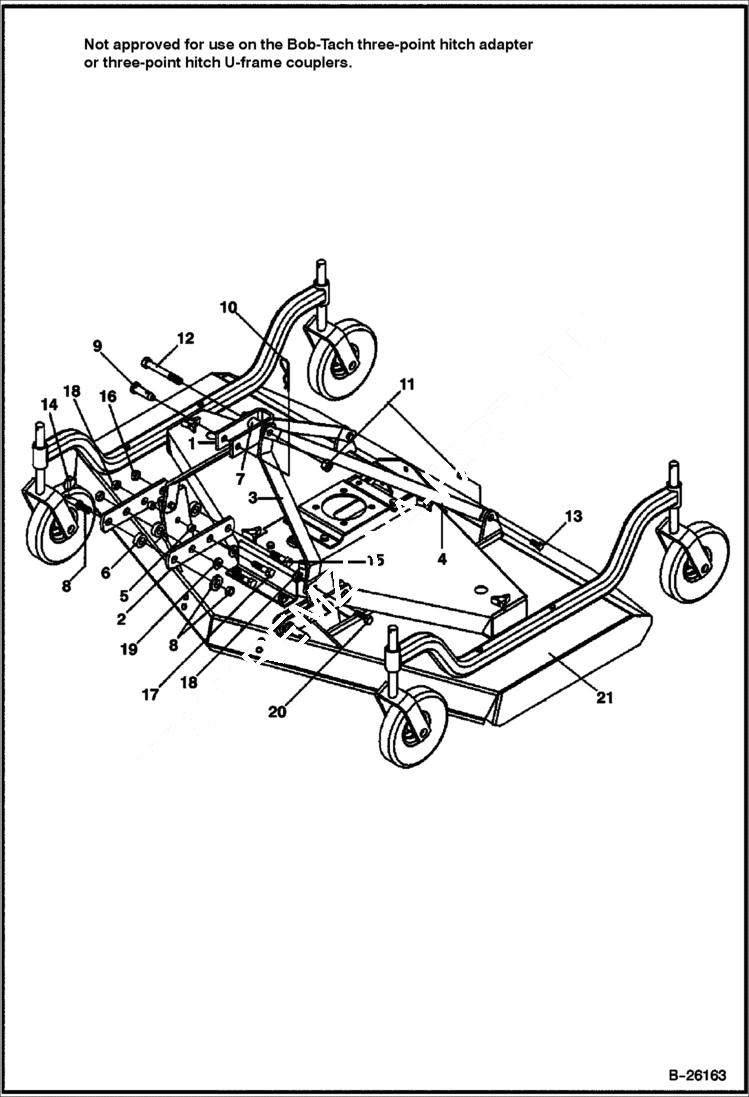

Запчасти Bobcat 3 POINT ATTACHMENTS MOWER (Main Frame & Deck) (3FM60 A1FR) (3FM72 A1FS) Loader

1

6689815

BAR top link

2

6689816

BAR hitch

3

6689817

BAR A-frame

4

6689818

BAR rear lift strap - 3FM60

4

6689819

BAR rear lift strap - 3FM72

5

6689873

BUSHING

6

6689874

BUSHING

7

6689820

BUSHING

8

00603500

PIN hitch - Cat I

9

37107B12

PIN top link Cat I

10

37107B13

PIN

11

00037200

NUT

12

17C1288

BOLT

13

17C1224

BOLT

14

2196

PIN

15

02793900

BOLT

16

85D14

NUT

17

17C1040

BOLT

18

00695100

NUT

19

00001400

WASHER

20

00008300

BOLT

21

6689821

DECK 3FM60

21

6689822

DECK
