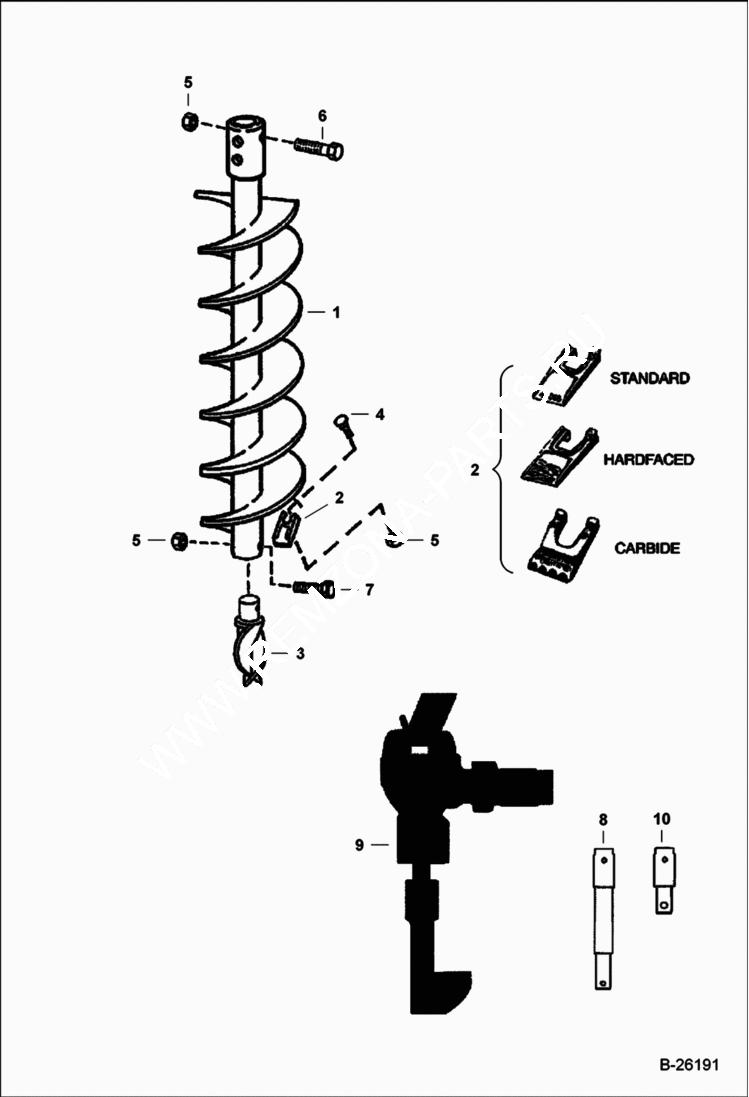

Запчасти Bobcat 3 POINT ATTACHMENTS AUGER (Auger Bits & Teeth) (3PTA A1G3) (3PTA AMJS) Loader

1

7122435

AUGER 6'' (152mm) - 2 teeth

1

7122436

AUGER 9'' (229mm) - 4 teeth

1

7122437

AUGER 12'' (305mm) - 4 teeth

1

7122438

AUGER 15'' (381mm) - 5 teeth

1

7122439

AUGER 18'' (457mm) - 6 teeth

1

7122440

AUGER 24'' (610mm) - 8 teeth

2

6667489

TOOTH 40/50 standard

2

6674955

TOOTH 40/50 hardfaced

2

6675275

TOOTH 40/50 carbide

3

6674952

POINT pilot - standard

3

6674953

POINT pilot - hardfaced

3

6674954

POINT pilot - carbide

4

37C824

BOLT

5

87D8

NUT

6

17C856

BOLT

7

17C856

BOLT 3.50'' long - used with 6'' & 9'' augers

7

17C864

BOLT 4.00'' long - used with 12'', 15'', 18'' & 24'' augers

8

6690056

EXTENSION 7''

8

6690057

EXTENSION 14''

9

6690058

SHIELD plastic extension - used with Ref 8

10

7192125

ADAPTER necessary to mount auger to gearbox - 2.54'' (64,5 mm) OD 2.06'' (52,3 mm) ID
