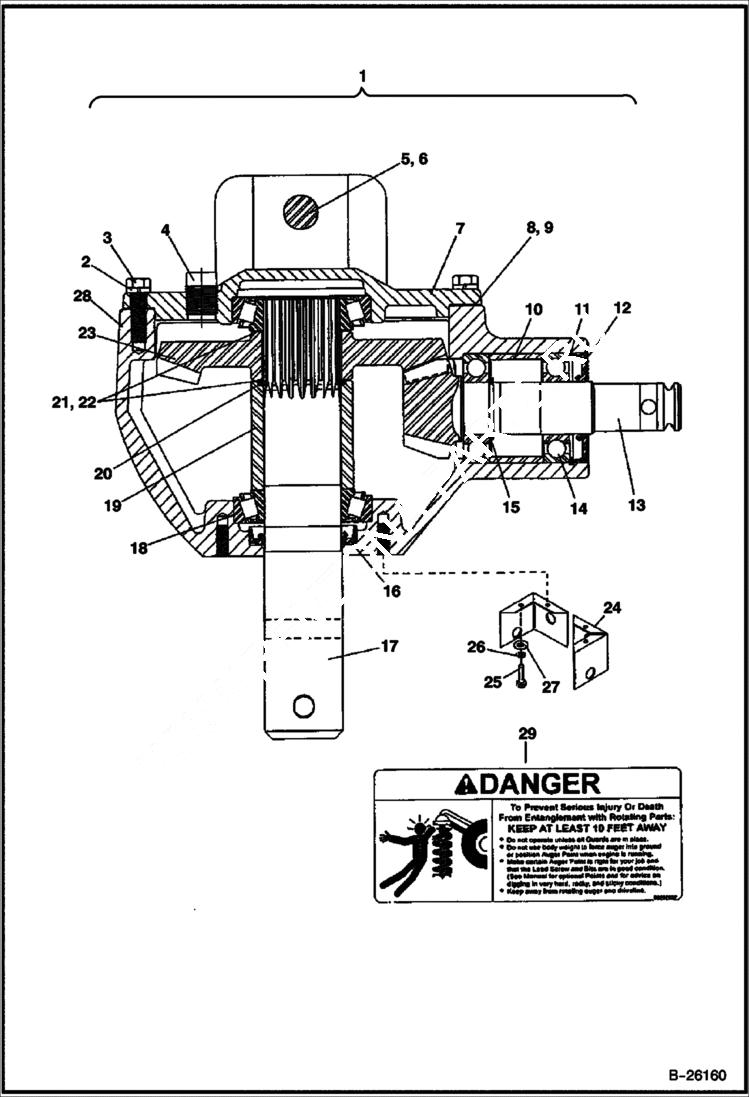

Запчасти Bobcat 3 POINT ATTACHMENTS AUGER (Gearbox) (3PTA A1G3) Loader

1

6689808

GEARBOX W/Ref. 2 - 23

2

00755954

WASHER

3

00758659

BOLT

4

00749508

PLUG

5

6689855

SHAFT hanger

6

00606000

COTTER PIN

7

6689810

CAP hanger

8

6689856

GASKET output cap - 0.10

9

6689857

GASKET output cap - 0.30

10

6689858

SPACER bearing

11

6689859

RING retaining

12

6689860

SEAL input

13

6689862

SHAFT shaft & pinion assy - 11 tooth

14

6689863

BEARING

15

6689864

RING retaining

16

6689865

SEAL output

17

6689866

SHAFT output

18

6689867

BEARING

19

6690263

SPACER

20

6690262

RING retaining

21

6689868

SHIM gear adjusting - 0.30

22

6689869

SHIM gear adjusting - 0.50

23

6689870

GEAR output - 38 tooth

24

6689811

SHIELD

25

00035900

BOLT

26

00011700

WASHER

27

00023500

WASHER

28

6689809

HOUSING

29

00767037

DECAL danger
