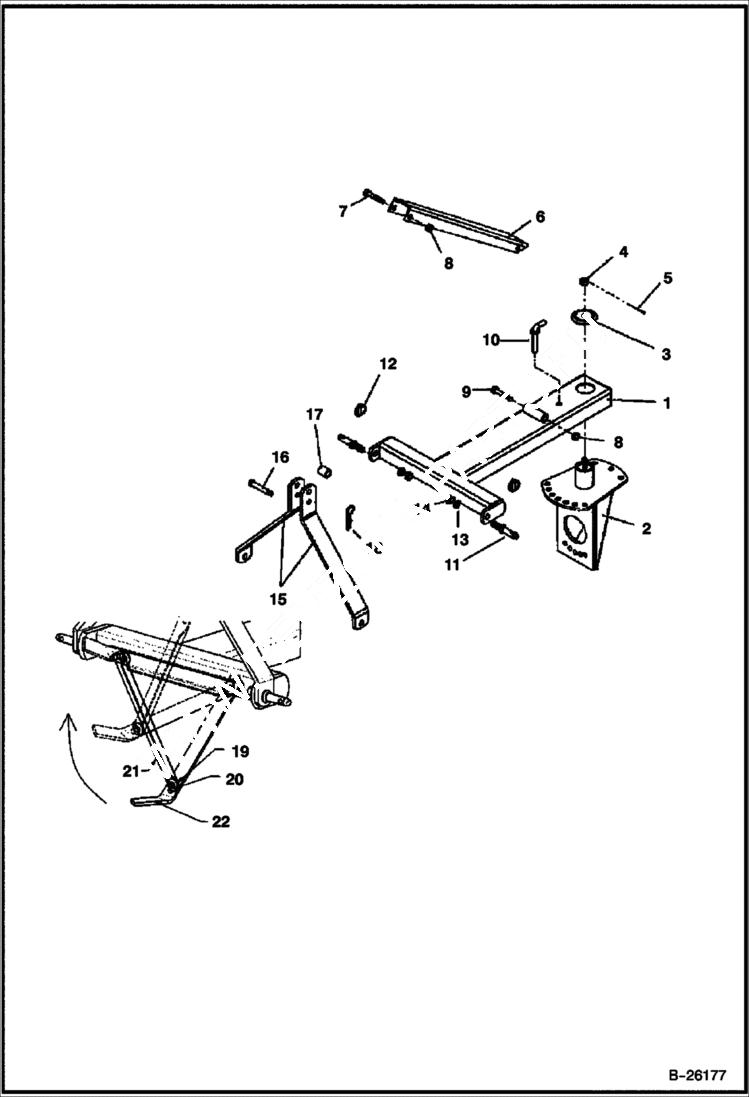

Запчасти Bobcat 3 POINT ATTACHMENTS ANGLE BLADE (Main Frame) (3AB84 A1G0) Loader

1

6689950

MOUNT 3AB84

2

6689951

MOUNT 3AB84

3

6689948

PLATE

4

5D12100

NUT 3AB84

5

COTTERPIN NLA - Was 1F432 - A

6

6689952

CHANNEL 3AB84

7

00009500

BOLT

8

00037200

NUT

9

17C1296

BOLT

10

6689946

PIN

11

00603500

PIN Cat I - W/washer & nut

12

2196

PIN

13

00603600

NUT

14

00012200

WASHER

15

6689953

BAR 3AB84

16

37107B12

PIN

17

6689954

TUBE

18

37107B13

PIN

19

27E8

WASHER 10

20

1F416

PIN

21

6689955

BRACKET

22

6689956

BRACKET
