Запчасти Bobcat CT450 PISTON & CRANKSHAFT GROUP POWER UNIT

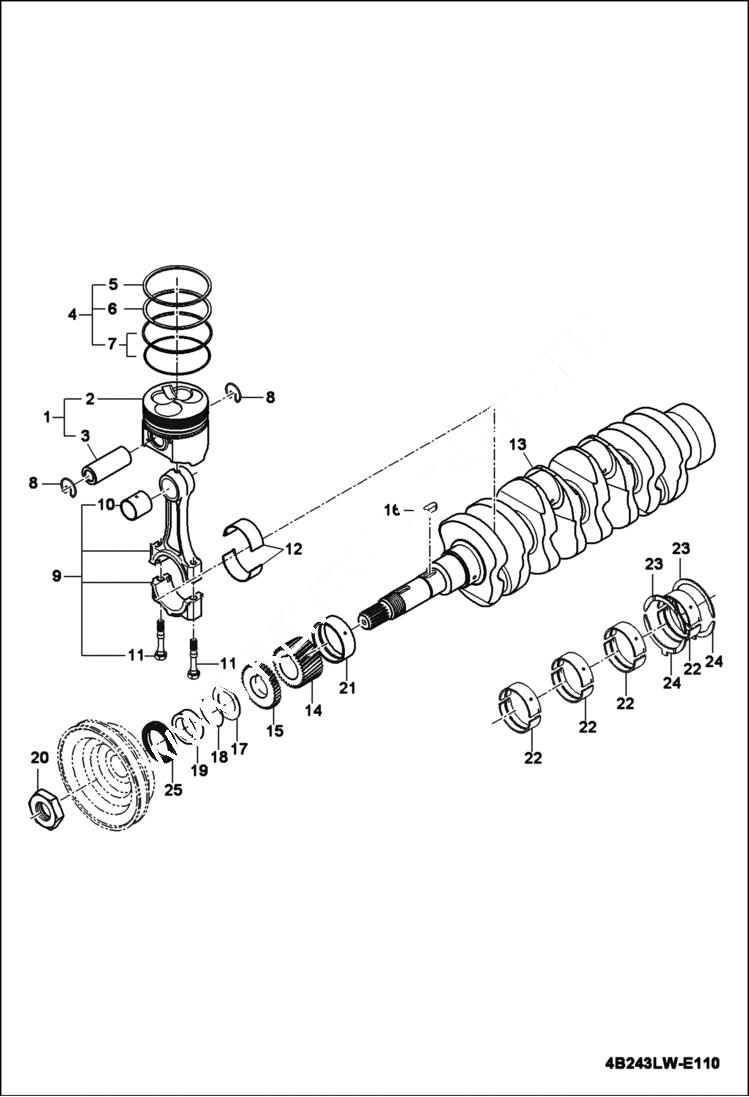

Схема запчастей Bobcat CT450 - PISTON & CRANKSHAFT GROUP POWER UNIT

Артикул

Название

Примечание

Количество

1

PISTON, ENG NLA - Order Ref. 2 & 3

2

7002150

PISTON, ENG

3

7000236

PIN, PISTON

4

7002309

RING, PISTON set - Ref. 5-7

5

7002310

RING, PISTON

6

7002311

RING, PISTON

7

7000233

RING, OIL ENG

8

6695721

CLIP CIR

9

6695792

CONNECTOR, ASSY W/Ref. 10 & 11

10

6695660

BUSHING PISTON PIN

11

6697076

BOLT ROD

12

6695852

BEARING CRANK PIN

13

7002967

CRANKSHAFT, ENG

14

7002156

GEAR, ENG CRANKSHAFT

15

7002139

GEAR, DRIVE

16

7002369

KEY, SHAFT

17

6696298

PUMP, SLINGER OIL

18

6696273

O-RING

19

6695855

COLLAR

20

6695858

NUT CRANKSHAFT

21

7002154

BEARING, ENG CRANKSHAFT

22

7002155

BEARING, ENG CRANKSHAFT

23

7002432

WASHER, THRUST

24

7002433

WASHER, THRUST

25

6696296

SEAL OIL

Выбрано товаров: 25
