Запчасти Bobcat CT450 FUEL CAMSHAFT GROUP POWER UNIT

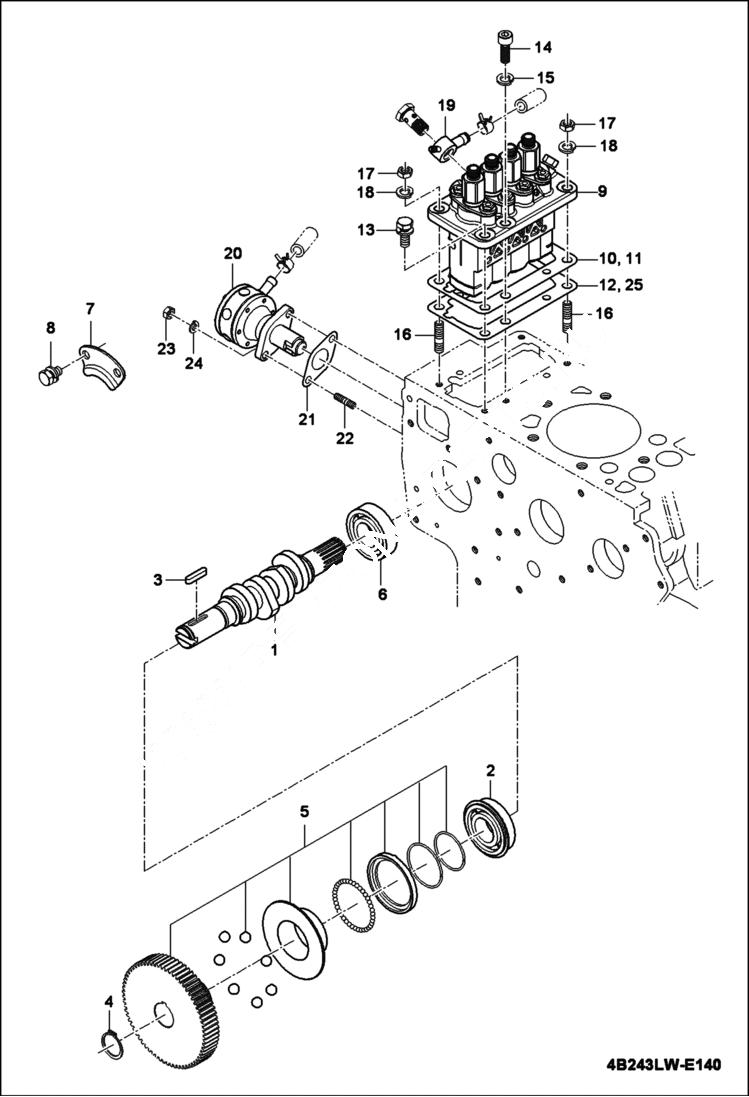

Схема запчастей Bobcat CT450 - FUEL CAMSHAFT GROUP POWER UNIT

Артикул

Название

Примечание

Количество

1

7002968

CAMSHAFT, FUEL

2

7002055

BEARING, BALL

3

6696168

KEY

4

6696688

RING SNAP

5

6695325

GEAR INJECTION PUMP

6

7002054

BEARING, BALL

7

7002072

RETAINER, BEARING

8

6693964

BOLT

9

7002970

PUMP, INJ FUEL

10

7002810

SHIM, PUMP INJ 0.30 mm thick

11

7002809

SHIM, PUMP INJ 0.15 mm thick

12

7002816

SHIM, PUMP INJ 0.45 mm thick

13

6697055

BOLT

14

7002966

BOLT

15

6697775

WASHER SPRING

16

6694011

STUD

17

6694053

NUT

18

6697775

WASHER SPRING

19

6694767

JOINT, HOSE FUEL

20

6694329

PUMP, FUEL

21

6694759

GASKET, PUMP FUEL

22

6694007

STUD

23

6694040

NUT

24

6694092

WASHER SPRING

25

7002825

SHIM, PUMP INJ

Выбрано товаров: 25
