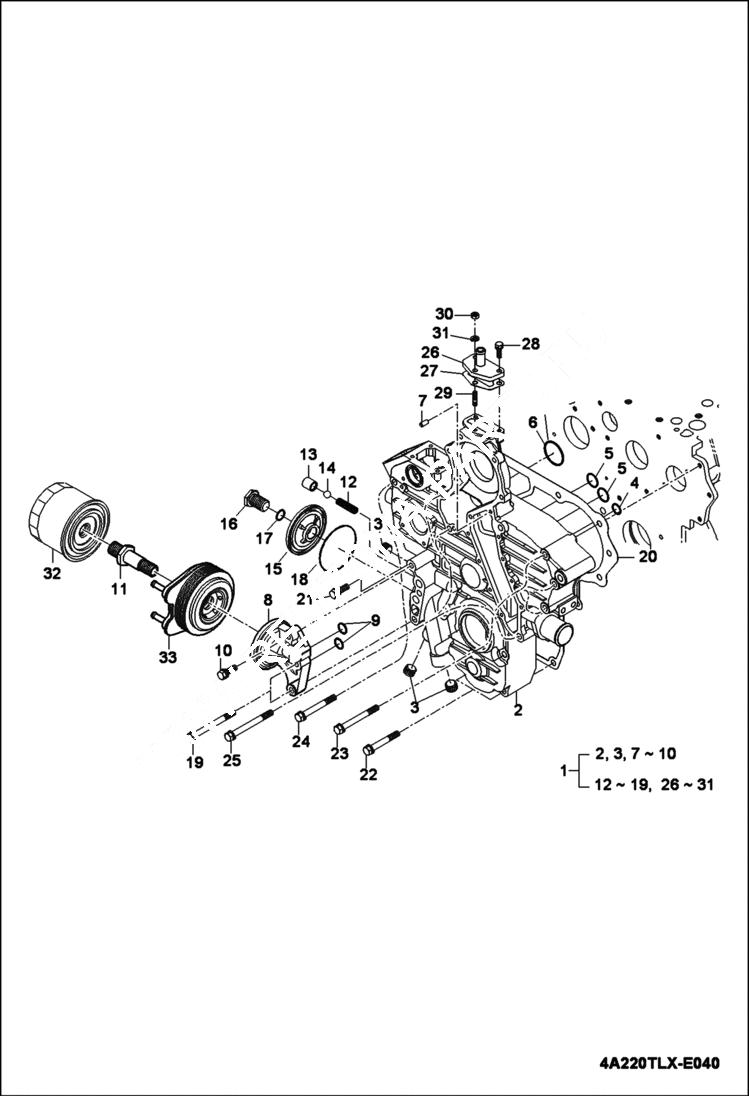

Запчасти Bobcat CT450 GEAR CASE GROUP POWER UNIT

1

7002198

HOUSING, GEAR ASSY Ref. 2, 3, 7-10, 12-19 & 26-31

2

7002201

HOUSING, GEARCASE

3

6694756

PLUG

4

6694146

O-RING

5

6696268

O-RING

6

6696270

SEAL O RING

7

6696389

PIN STRAIGHT

8

7002171

SUPPORT, FILTER OIL

9

6694146

O-RING

10

6693967

BOLT

11

7002530

CONNECTOR

12

6694318

SPRING

13

6696590

SEAT VALVE

14

6694233

BALL STEEL

15

7002535

COVER

16

7002474

BOLT

17

6694146

O-RING

18

7002592

ORING

19

6695559

SCREW

20

7002200

GASKET, GEARCASE

21

6693967

BOLT

22

6693969

BOLT

23

6695504

BOLT

24

6695505

BOLT

25

6695507

BOLT

26

6696930

FLANGE, WATER RETURN

27

6697244

GASKET

28

6693946

BOLT

29

6697678

STUD

30

6694040

NUT

31

6694092

WASHER SPRING

32

6696286

FILTER OIL

33

7002295

EXCHANGER, OIL COOLER
