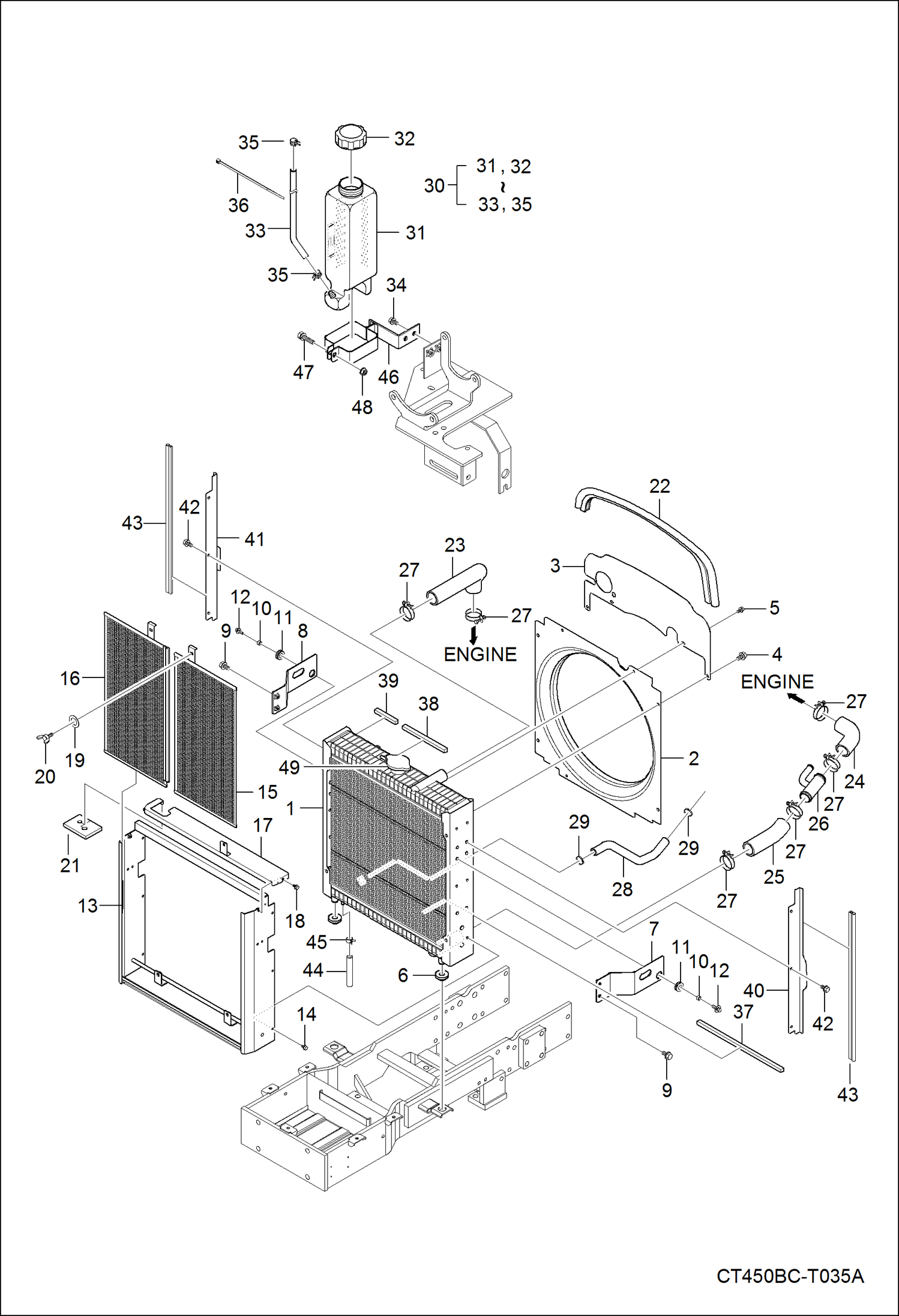

Запчасти Bobcat CT450 RADIATOR GROUP POWER UNIT

1

7013126

EXCHANGER, WATER RADIATOR W/Ref. 49 - Was 7002450 - A

2

7002963

SHROUD, FAN

3

7003087

PLATE

4

6695586

BOLT FLANGE

5

6695570

BOLT, FLANGE

6

7000278

CUSHION

7

7003437

PLATE, LH

8

7003438

PLATE, RH

9

6695569

BOLT FLANGE

10

6695127

SPACER

11

6695128

GROMMET

12

6693977

BOLT

13

7003082

GUAGE, OIL

14

6695586

BOLT FLANGE

15

7003080

SCREEN, DEBRIS

16

7003081

SCREEN, DEBRIS

17

7003083

COVER

18

6695586

BOLT FLANGE

19

6697779

WASHER

20

7000306

BOLT

21

7003088

FOAM

22

7002652

SEAL

23

7003084

HOSE, WATER FORMED

24

7003085

HOSE, WATER FORMED

25

7003086

HOSE, WATER FORMED

26

7003079

PIPE, WATER

27

6695444

CLAMP HOSE

28

7001990

HOSE, HEATER FORMED

29

7012856

CLAMP, HOSE Was 7000282 - A

30

7002449

TANK, WATER assy - Ref. 31-34

31

7002294

TANK, WATER

32

7002187

CAP

33

7002216

HOSE, HEATER

34

6694027

BOLT FLANGE

35

6694323

CLAMP, HOSE

36

6695446

BAND

37

7002550

FOAM

38

7002551

FOAM

39

7002552

FOAM

40

7002376

COVER, SIDE LH

41

7002379

COVER, SIDE RH

42

6695586

BOLT FLANGE

43

7002653

SEAL

44

7000815

HOSE 1, FUEL

45

6694297

CLAMP, HOSE Was 7002219 - A

46

7002504

BRACKET

47

6693975

BOLT

48

7002174

NUT, FLANGE

49

7002330

CAP, RADIATOR
