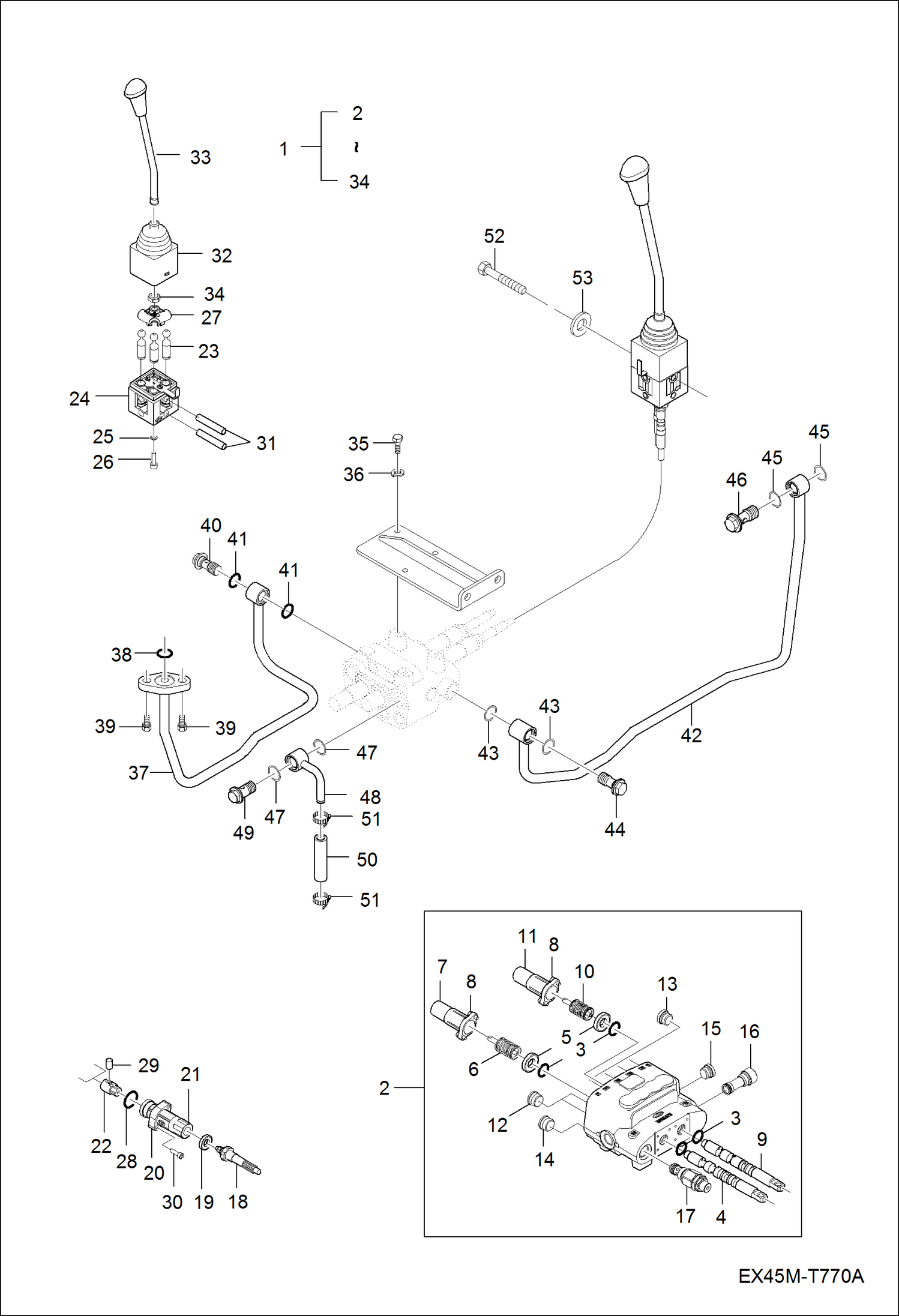

Запчасти Bobcat CT445 JOYSTICK VALVE GROUP ACCESSORIES & OPTIONS

1

7012953

VALVE, JOYSTICK ASSY Ref. 2-34

2

7012835

VALVE, JOYSTICK Ref. 3-17

3

7012837

ORING

4

SPOOL NLA - Order Ref. 2 - Was 7012836 - A

5

7012843

COLLAR

6

7012839

KIT, SPRING

7

7012838

CAP, END ASSY

8

7012850

BOLT, HEX SOCKET

9

SPOOL NLA - Order Ref. 2 - Use W/O front aux hyd - Was 7012840 - A

9

7178632

SPOOL, VALVE Use W/front aux hyd

10

7012842

KIT, SPRING

11

7012841

CAP, END ASSY Use W/O front aux hyd

11

7192353

BONNET, DETENT HYD VALVE Use W/front aux hyd

12

7012848

VALVE, CHECK

13

7012844

PLUG

14

7012845

PLUG

15

7012846

PLUG

16

7012847

PLUG

17

7012852

VALVE, RELIEF

18

7012851

CABLE, PUSH-PULL

19

7000813

WASHER, SEAL

20

7000824

FLANGE, MOUNTING

21

7000823

ENDCAP

22

7000826

CONNECTOR

23

7000827

PISTON, VALVE JOYSTICK

24

7002250

HOUSING, JOYSTICK

25

7000822

WASHER, SPRING

26

7000821

BOLT

27

7000825

SELECTOR

28

7000818

O RING

29

6696332

PIN

30

7000820

BOLT

31

7000819

RING

32

7000828

BOOT, RUBBER

33

7002252

HANDLE, JOYSTICK

34

6697462

NUT

35

6695575

BOLT

36

6697775

WASHER SPRING

37

7013034

TUBELINE, HYD

38

6694136

O-RING

39

6697056

BOLT

40

6696165

BOLT JOINT

41

6694137

O-RING

42

7013036

TUBELINE, HYD

43

6694137

O-RING

44

6696165

BOLT JOINT

45

6694137

O-RING

46

6696165

BOLT JOINT

47

6694137

O-RING

48

7013032

TUBELINE, HYD

49

6695562

BOLT JOINT

50

7002230

HOSE, RETURN

51

7000814

CLAMP, HOSE

52

6695506

BOLT, W/WASHER

53

6697774

WASHER
