Запчасти Bobcat CT445 RADIATOR GROUP POWER UNIT

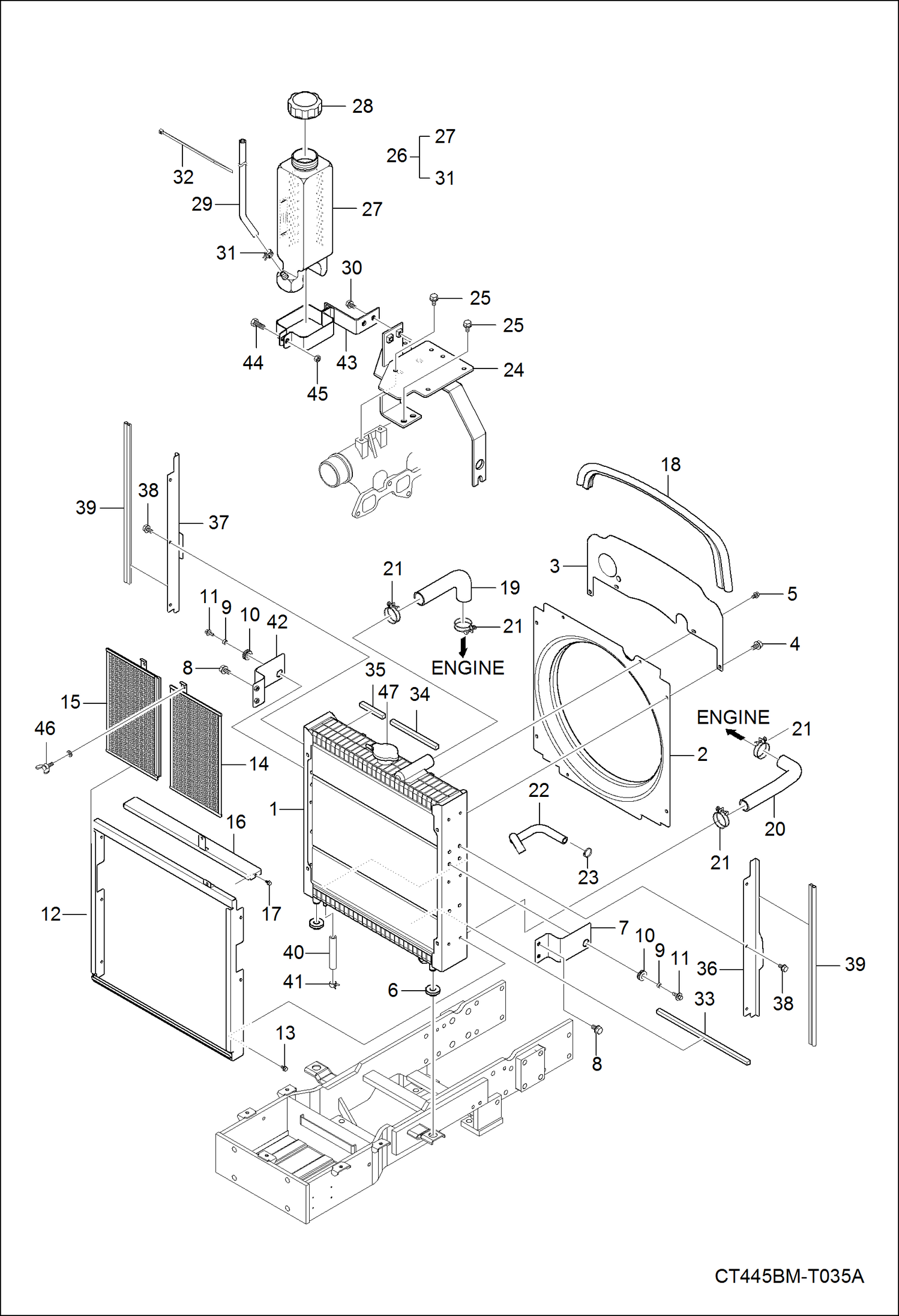

Схема запчастей Bobcat CT445 - RADIATOR GROUP POWER UNIT

Артикул

Название

Примечание

Количество

1

7013126

EXCHANGER, WATER RADIATOR W/Ref. 47

2

7002963

SHROUD, FAN

3

7013039

PLATE

4

6695586

BOLT FLANGE

5

6695570

BOLT, FLANGE

6

7000278

CUSHION

7

7002977

PLATE, LH

8

6695569

BOLT FLANGE

9

6695127

SPACER

10

6695128

GROMMET

11

6693977

BOLT

12

7013087

GUIDE, SCREEN

13

6695586

BOLT FLANGE

14

7002129

SCREEN, DEBRIS

15

7002130

SCREEN, DEBRIS

16

7002536

COVER

17

6695586

BOLT FLANGE

18

7002652

SEAL

19

7001991

HOSE, WATER FORMED

20

7001992

HOSE, WATER FORMED

21

6695444

CLAMP HOSE

22

7002868

HOSE, WATER RETURN

23

7012856

CLAMP, HOSE

24

7002907

BRACKET Was 7013303 - D

25

6697054

BOLT

26

7002449

TANK, WATER

27

7002294

TANK, WATER

28

7002187

CAP

29

7002216

HOSE, HEATER

30

6694027

BOLT FLANGE

31

6694323

CLAMP, HOSE

32

6695800

BAND, CORD

33

7002550

FOAM

34

7002551

FOAM

35

7002552

FOAM

36

7002376

COVER, SIDE LH

37

7002379

COVER, SIDE RH

38

6695586

BOLT FLANGE

39

7002653

SEAL

40

7000815

HOSE 1, FUEL

41

6694297

CLAMP, HOSE

42

7002978

PLATE, RH

43

7002504

BRACKET

44

6693975

BOLT

45

7002174

NUT, FLANGE

46

7000306

BOLT

47

7002330

CAP, RADIATOR

Выбрано товаров: 47
