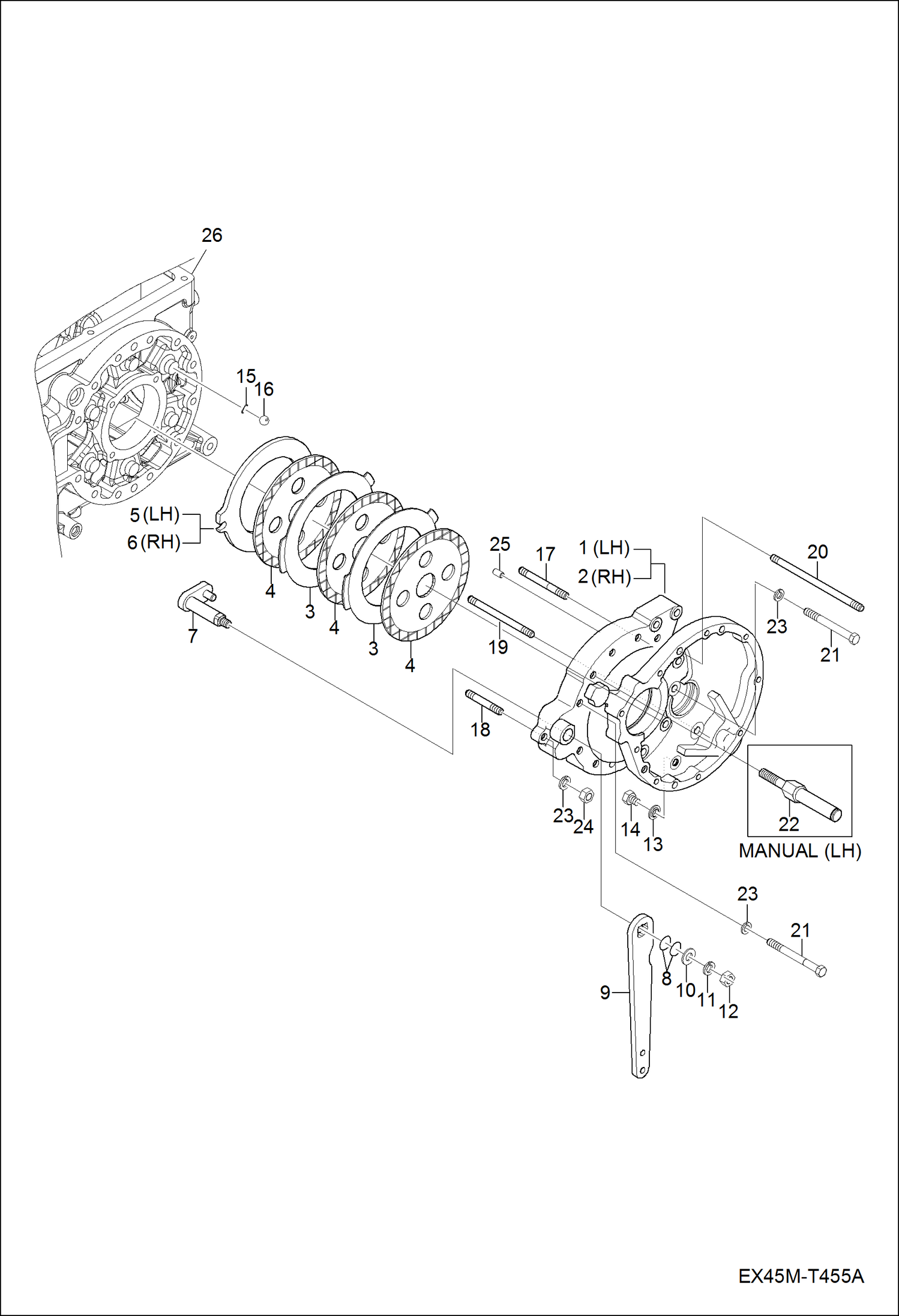

Запчасти Bobcat CT445 BRAKE CASE GROUP DRIVE TRAIN

1

7002947

HOUSING, BRAKE LH

2

7002948

HOUSING, BRAKE RH

3

6696412

PLATE

4

6697211

DISC BRAKE

5

6696418

PLATE CAM (LH)

6

6696419

PLATE, CAM RH

7

7002949

CAM, BRAKE

8

6696268

O-RING

9

7001977

LEVER, CAM BRAKE

10

6694082

WASHER PLAIN

11

6694094

WASHER SPRING

12

6696242

NUT

13

6694128

WASHER SEAL

14

6694360

PLUG, FILL

15

7002063

SEAT, BALL

16

6694230

BALL STEEL

17

7002946

STUD

18

7002685

STUD

19

7002803

STUD

20

7002796

BOLT

21

7002797

BOLT

22

7013015

SHAFT, LEVER

23

6697776

WASHER SPRING

24

6694060

NUT

25

6696392

PIN STRAIGHT

26

CASE, TRANSMISSION See Illustration TRANSMISSION CASE GROUP/ CT445BS-T165A
