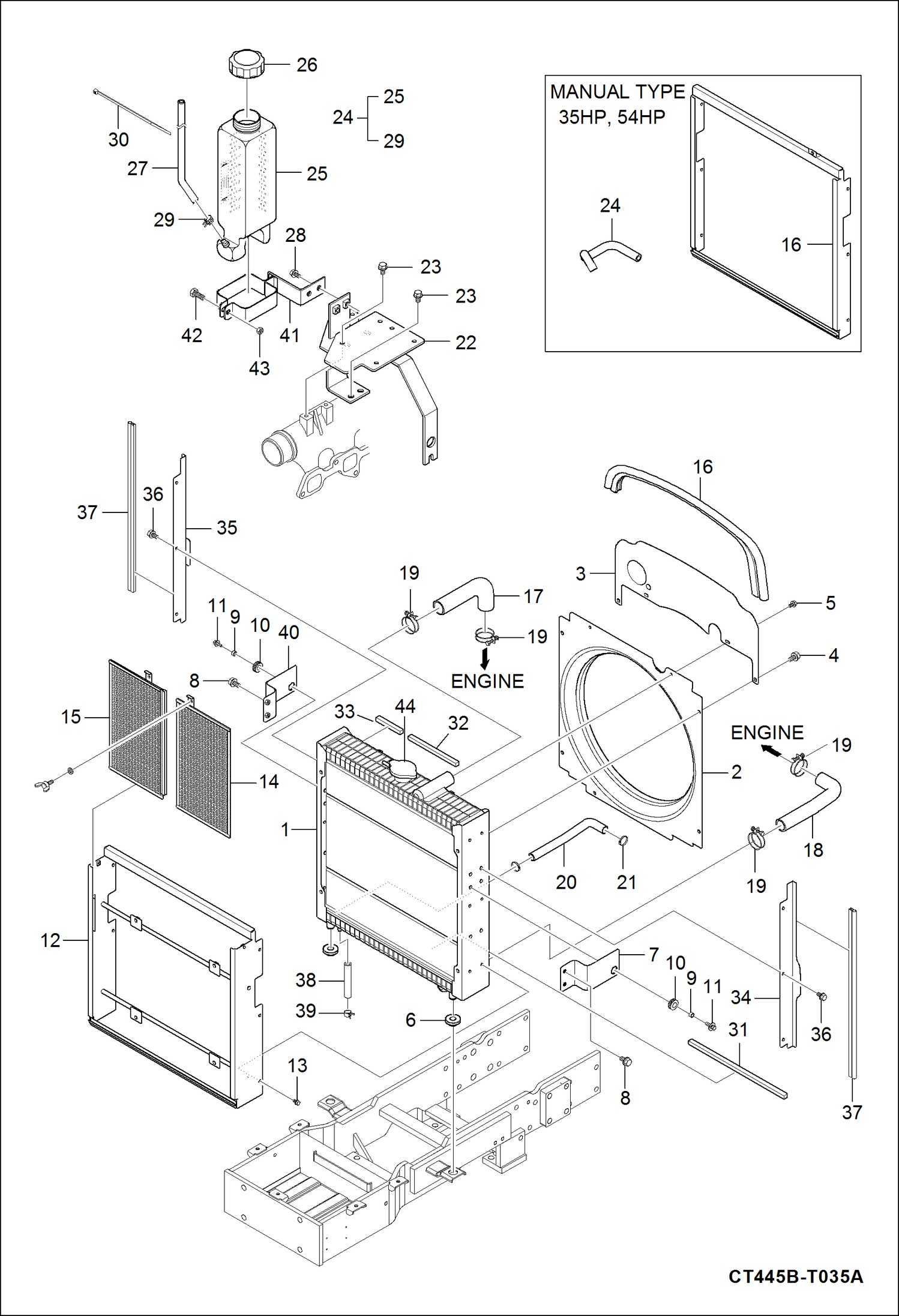

Запчасти Bobcat CT445 RADIATOR GROUP POWER UNIT

1

7013126

EXCHANGER, WATER RADIATOR W/Ref. 44 - Was 7002450 - A

2

7002963

SHROUD, FAN

3

7002622

PLATE

4

6695586

BOLT FLANGE

5

6695570

BOLT, FLANGE

6

7000278

CUSHION

7

7002977

PLATE, LH Was 7002898 - A

8

6695569

BOLT FLANGE

9

6695127

SPACER

10

6695128

GROMMET

11

6693977

BOLT

12

7002282

GUIDE, NET

13

6695586

BOLT FLANGE

14

7002129

SCREEN, DEBRIS

15

7002130

SCREEN, DEBRIS

16

7002652

SEAL

17

7001991

HOSE, WATER FORMED

18

7001992

HOSE, WATER FORMED

19

6695444

CLAMP HOSE

20

7002868

HOSE, WATER RETURN

21

7012856

CLAMP, HOSE Was 7000282 - A

22

7002907

BRACKET

23

6697053

BOLT

24

7002449

TANK, WATER assy - Ref. 25-29

25

7002294

TANK, WATER

26

7002187

CAP

27

7002216

HOSE, HEATER

28

6694027

BOLT FLANGE

29

6694323

CLAMP, HOSE

30

6695446

BAND

31

7002550

FOAM

32

7002551

FOAM

33

7002552

FOAM

34

7002376

COVER, SIDE LH

35

7002379

COVER, SIDE RH

36

6695586

BOLT FLANGE

37

7002653

SEAL

38

7000815

HOSE 1, FUEL

39

6694297

CLAMP, HOSE Was 7002219 - A

40

7002978

PLATE, RH Was 7002899 - A

41

7002504

BRACKET

42

6693975

BOLT

43

7002174

NUT, FLANGE

44

7002330

CAP, RADIATOR
