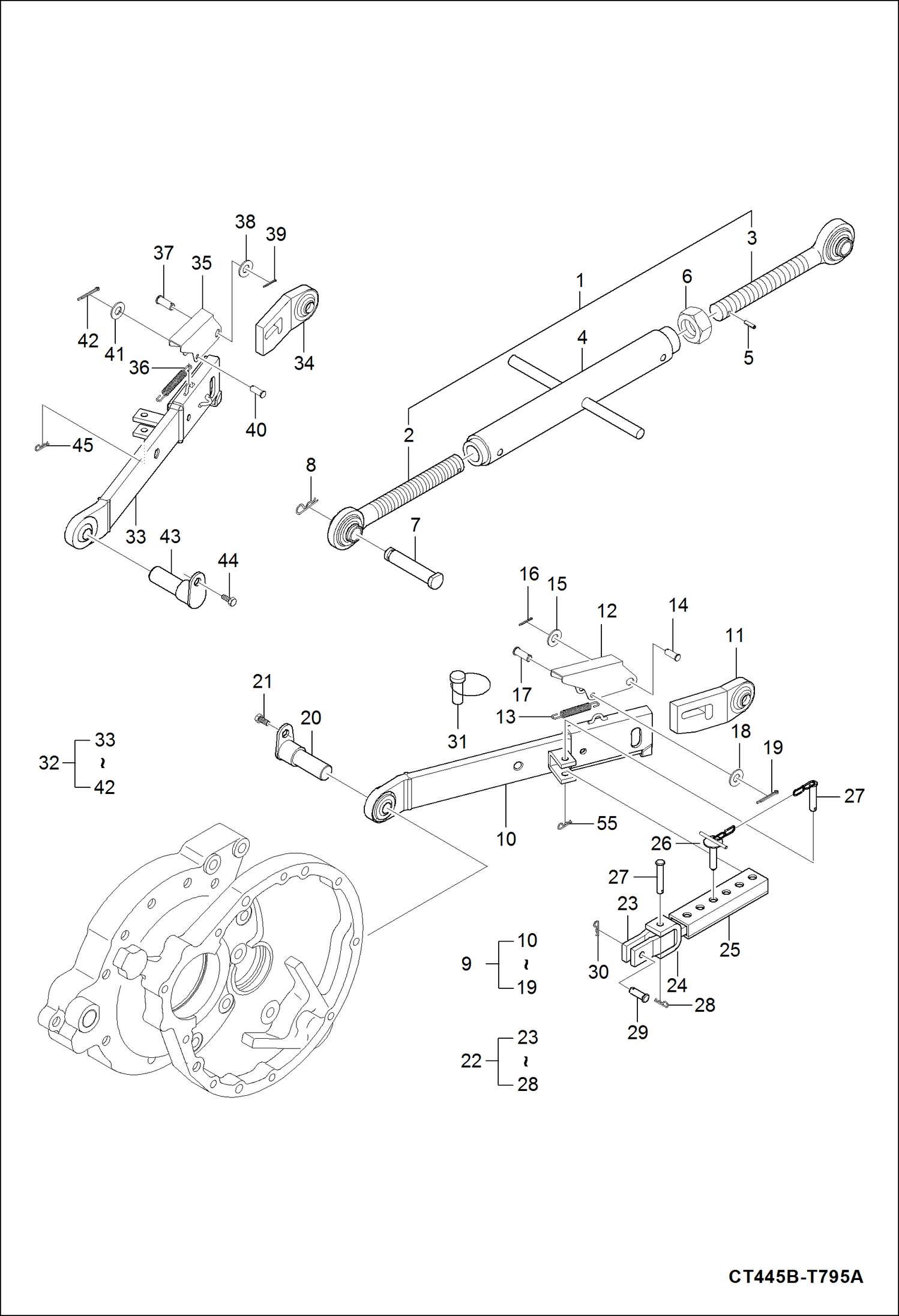

Запчасти Bobcat CT440 THREE POINT LINK SYSTEM GROUP 1 HYDRAULIC SYSTEM

1

7002945

LINK, TOP Ref. 2-6

2

6694356

JOINT, LINK TOP RH RH thread

3

6694357

JOINT, LINK TOP LH LH thread

4

7002438

LINK, TOP

5

7002805

PIN, SPRING

6

7002585

NUT

7

7002034

PIN, LINK

8

6694213

PIN SNAP

9

7002855

LINK, LOWER LH assy - Ref. 10-19

10

7002856

LINK, LOWER LH

11

7001961

HOUSING, LOWER LINK LH

12

7002537

COVER

13

6696745

SPRING

14

6696345

PIN

15

6696915

WASHER PLAIN

16

6696918

PIN, SPLIT

17

6696363

PIN JOINT

18

6696912

WASHER PLAIN

19

6696380

PIN SPLIT

20

7002944

PIN, LINK LOWER

21

7002485

BOLT

22

7002913

SWAYBAR assy - Ref. 23-28

23

6695355

BRACKET

24

6695294

BRACKET ASSY Was 7002914 - A

25

7002575

HOUSING

26

6697347

PIN LOCK 1 pin W/chain

27

6696365

PIN JOINT

28

6696375

PIN SNAP

29

6696329

PIN

30

6696372

PIN SNAP

31

6697495

PIN, SET

32

7002857

LINK, LOWER RH assy - Ref. 33-42

33

7002858

LINK, LOWER RH

34

7002262

HOUSING, LINK LOWER RH

35

7002537

COVER

36

6696745

SPRING

37

6696345

PIN

38

6696915

WASHER PLAIN

39

6696918

PIN, SPLIT

40

6696363

PIN JOINT

41

6696912

WASHER PLAIN

42

6696380

PIN SPLIT

43

7002944

PIN, LINK LOWER

44

7002485

BOLT

45

6696375

PIN SNAP
