Запчасти Bobcat CT440 POSITION CONTROL LEVER GROUP HYDRAULIC SYSTEM

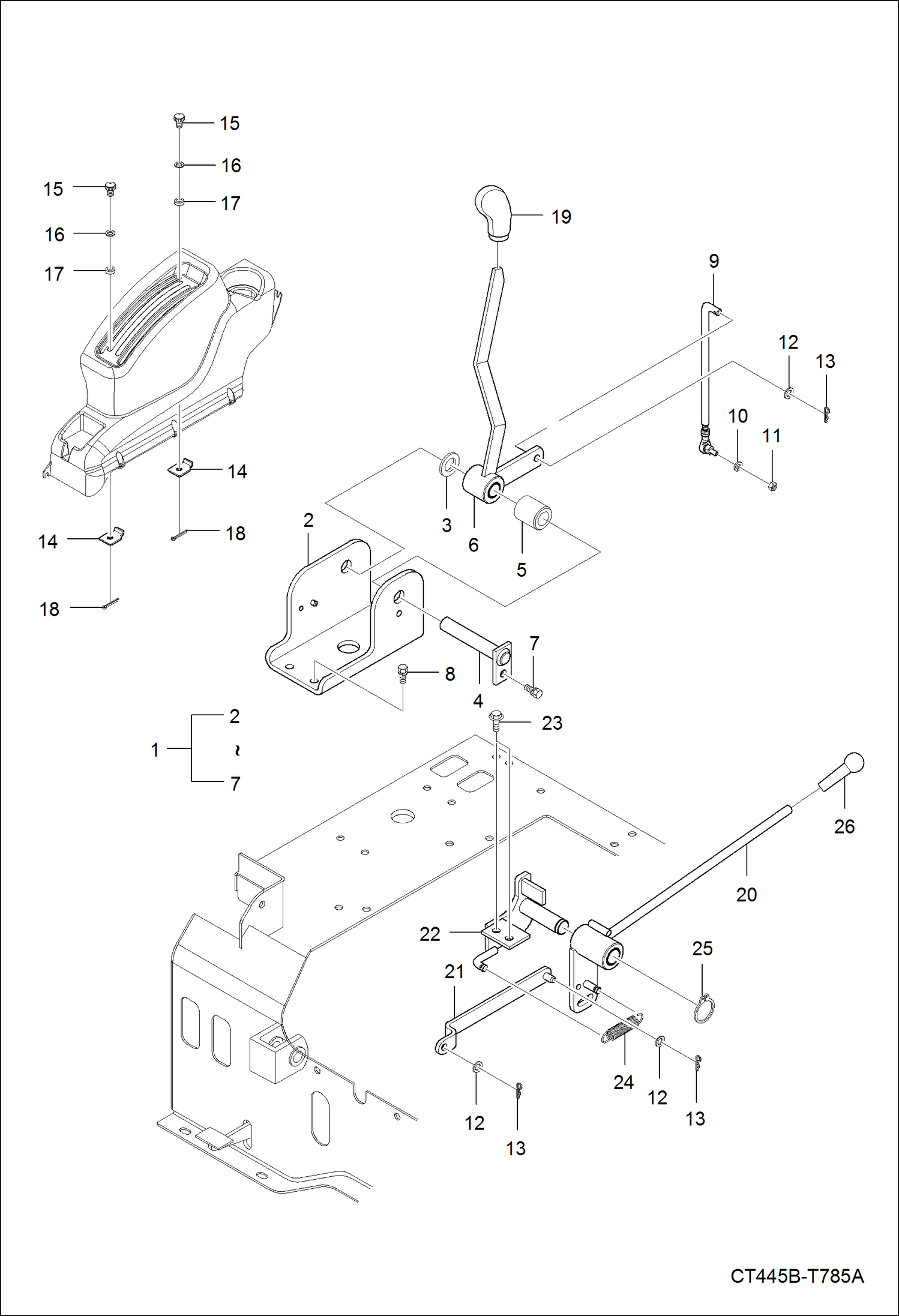

Схема запчастей Bobcat CT440 - POSITION CONTROL LEVER GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7002933

LEVER, HYD ASSY Ref. 2-7

2

7002506

BRACKET

3

6696901

WASHER

4

7002659

SHAFT

5

7002934

SPACER

6

7002901

LEVER, ADJUSTING

7

6697053

BOLT

8

6697054

BOLT

9

7002109

ROD, CONNECTING

10

6694092

WASHER SPRING

11

6694040

NUT

12

6694079

WASHER PLAIN

13

6694211

PIN, SNAP

14

6696772

STOP

15

6697069

BOLT

16

6694087

WASHER PLAIN

17

6696713

SPACER

18

6694204

PIN, SPLIT

19

6697300

HANDLE GRIP

20

7002112

LEVER, CONTROL

21

7002164

ARM, FEEDBACK

22

7002507

BRACKET

23

6694027

BOLT FLANGE

24

7002306

SPRING, PEDAL LOCK

25

6694107

RING SNAP

26

7002209

GRIP, HANDLE

Выбрано товаров: 26
