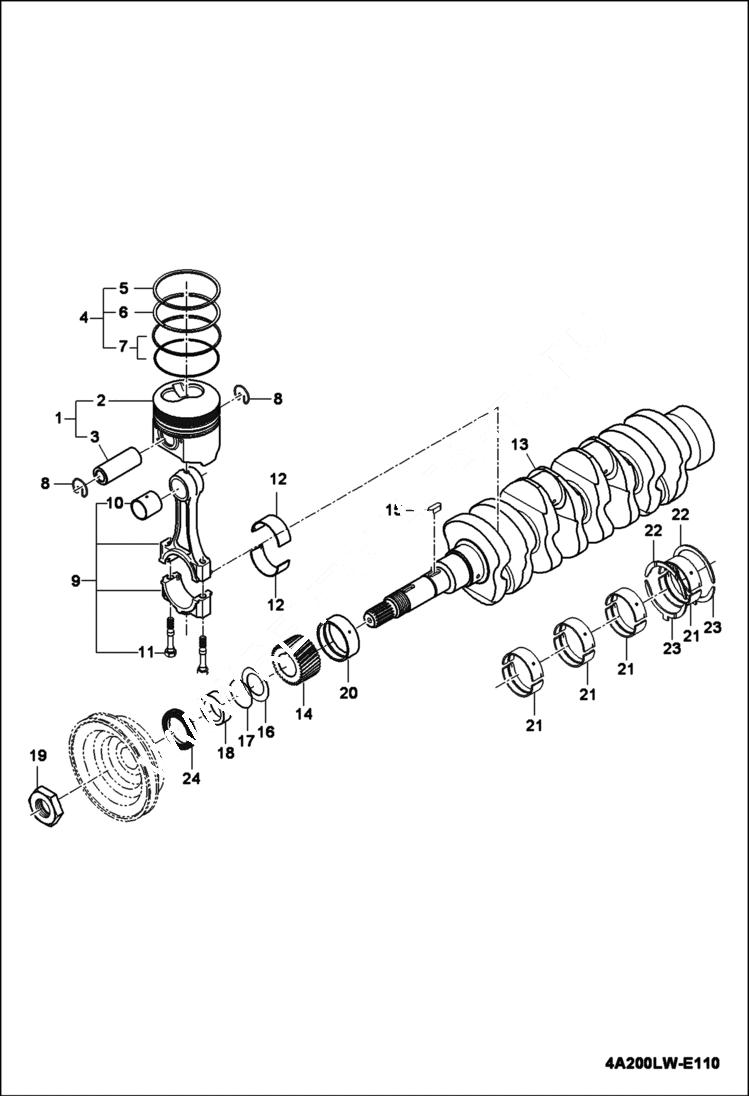

Запчасти Bobcat CT440 PISTON & CRANKSHAFT GROUP POWER UNIT

1

7000286

PISTON, ENG

2

PISTON ENG Order Ref. 1

3

6696403

PISTON, PIN

4

6695337

RING, PISTON ASSY Ref. 5-7

5

6696482

RING PISTON

6

6696484

RING PISTON

7

6695422

RING ASSY OIL

8

6695721

CLIP CIR

9

6695792

CONNECTOR, ASSY W/Ref. 10 & 11

10

6695660

BUSHING PISTON PIN

11

6697076

BOLT ROD

12

6695852

BEARING CRANK PIN

13

7002835

CRANKSHAFT, ENG

14

6696010

GEAR CRANKSHAFT

15

6696169

KEY

16

6696298

PUMP, SLINGER OIL

17

6696273

O-RING

18

6695758

BUSHING, CRANKSHAFT

19

6695858

NUT CRANKSHAFT

20

6695856

BEARING CRANKSHAFT

21

6695857

BEARING CRANKSHAFT

22

6696679

BEARING, THRUST

23

6696680

BEARING THRUST

24

6696296

SEAL OIL
