Запчасти Bobcat CT440 HST EXTERNAL HYDRAULIC LINE GROUP HYDRAULIC SYSTEM

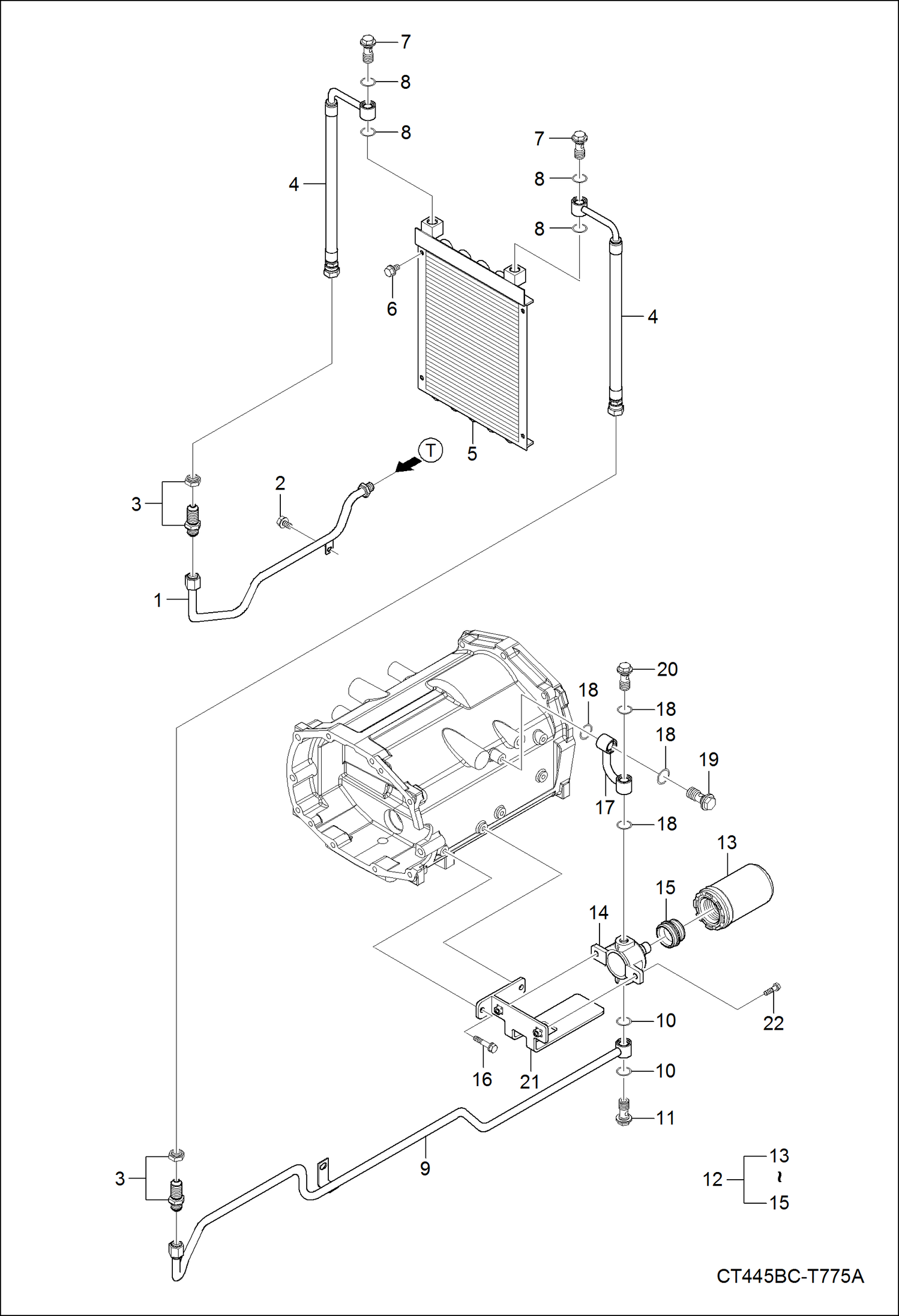

Схема запчастей Bobcat CT440 - HST EXTERNAL HYDRAULIC LINE GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7003093

TUBELINE, HYD See Illustration POWER STEERING UNIT GROUP/ CT445BC-T1025C

2

7002479

BOLT

3

6695785

CONNECTOR

4

7002224

HOSE, HYD

5

7002861

EXCHANGER, OIL COOLER

6

7002479

BOLT

7

6696165

BOLT JOINT

8

6694137

O-RING

9

7003424

TUBELINE, HYD Note: Replacement part may have mounting tab in different location.

10

6694137

O-RING

11

6696165

BOLT JOINT

12

7002222

FILTER, HYD Ref. 13-15

13

7002299

FILTER, OIL HYDROSTAT

14

7002505

BRACKET

15

7002531

CONNECTOR

16

6693980

BOLT

17

7002888

TUBELINE, HYD

18

6694137

O-RING

19

6696165

BOLT JOINT

20

6695562

BOLT JOINT

21

7002891

SUPPORT, FILTER OIL

22

6693980

BOLT

Выбрано товаров: 22
