Запчасти Bobcat CT440 HOOD (Engine) MAIN FRAME

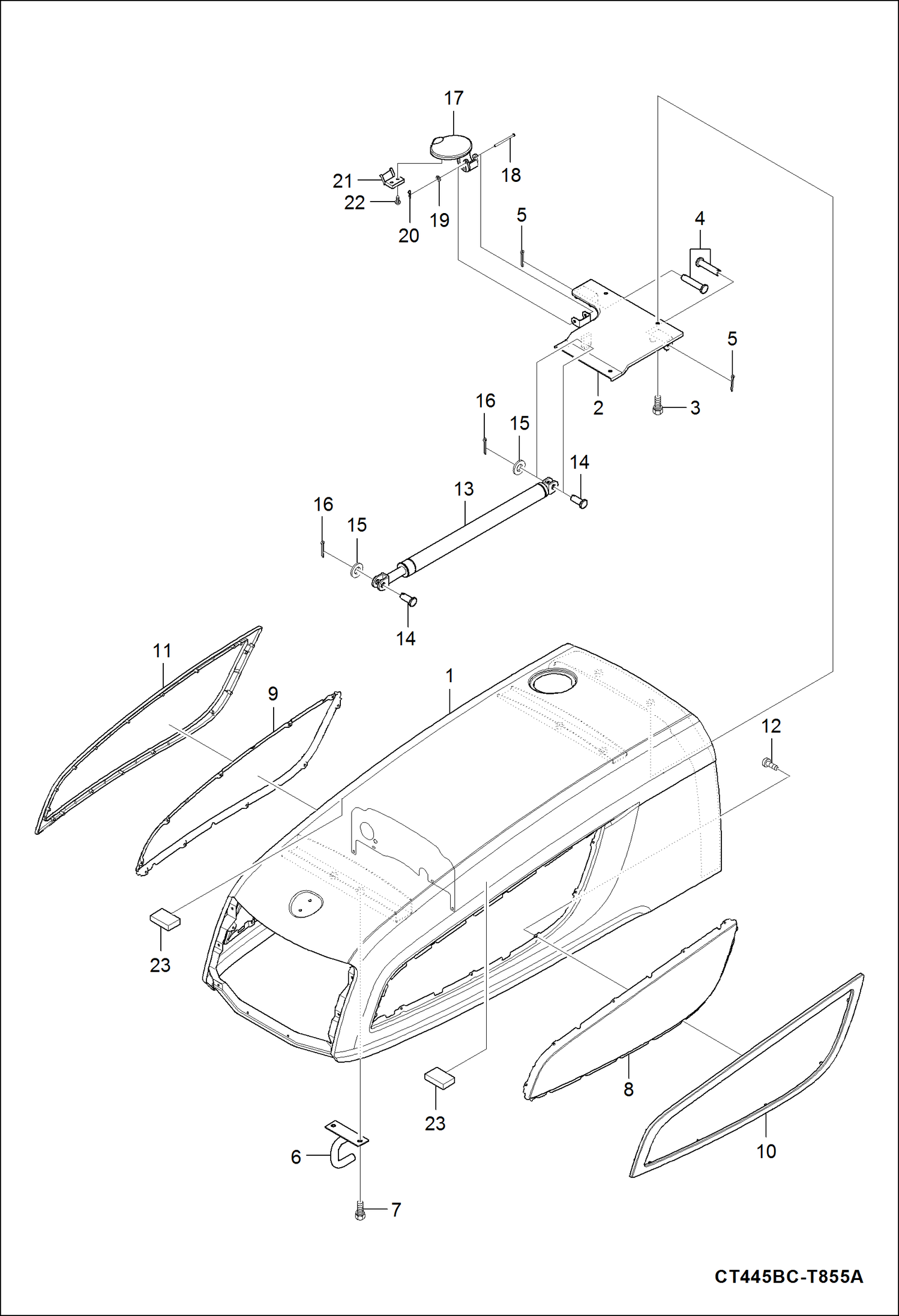

Схема запчастей Bobcat CT440 - HOOD (Engine) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7010619

COVER, HOOD Was 7002863 - A

2

7002080

HINGE, COVER

3

6694027

BOLT FLANGE

4

7002248

PIN, JOINT

5

6694212

PIN SNAP

6

7002962

HOLDER, HOOD

7

6694028

BOLT FLANGE

8

7002259

SCREEN, LH

9

7002346

SCREEN, RH

10

7002378

FRAME, SIDE LH

11

7002381

FRAME, SIDE RH

12

6697611

SCREW

13

7002040

GAS SPRING

14

6694186

PIN JOINT

15

6697780

WASHER

16

6694212

PIN SNAP

17

6695838

COVER, FUEL

18

6696357

PIN JOINT

19

6697779

WASHER

20

6694214

PIN SNAP Was 6696373 - A

21

6695731

CLIP

22

6697611

SCREW

23

6695126

FOAM

Выбрано товаров: 23
