Запчасти Bobcat CT440 STEP GROUP MAIN FRAME

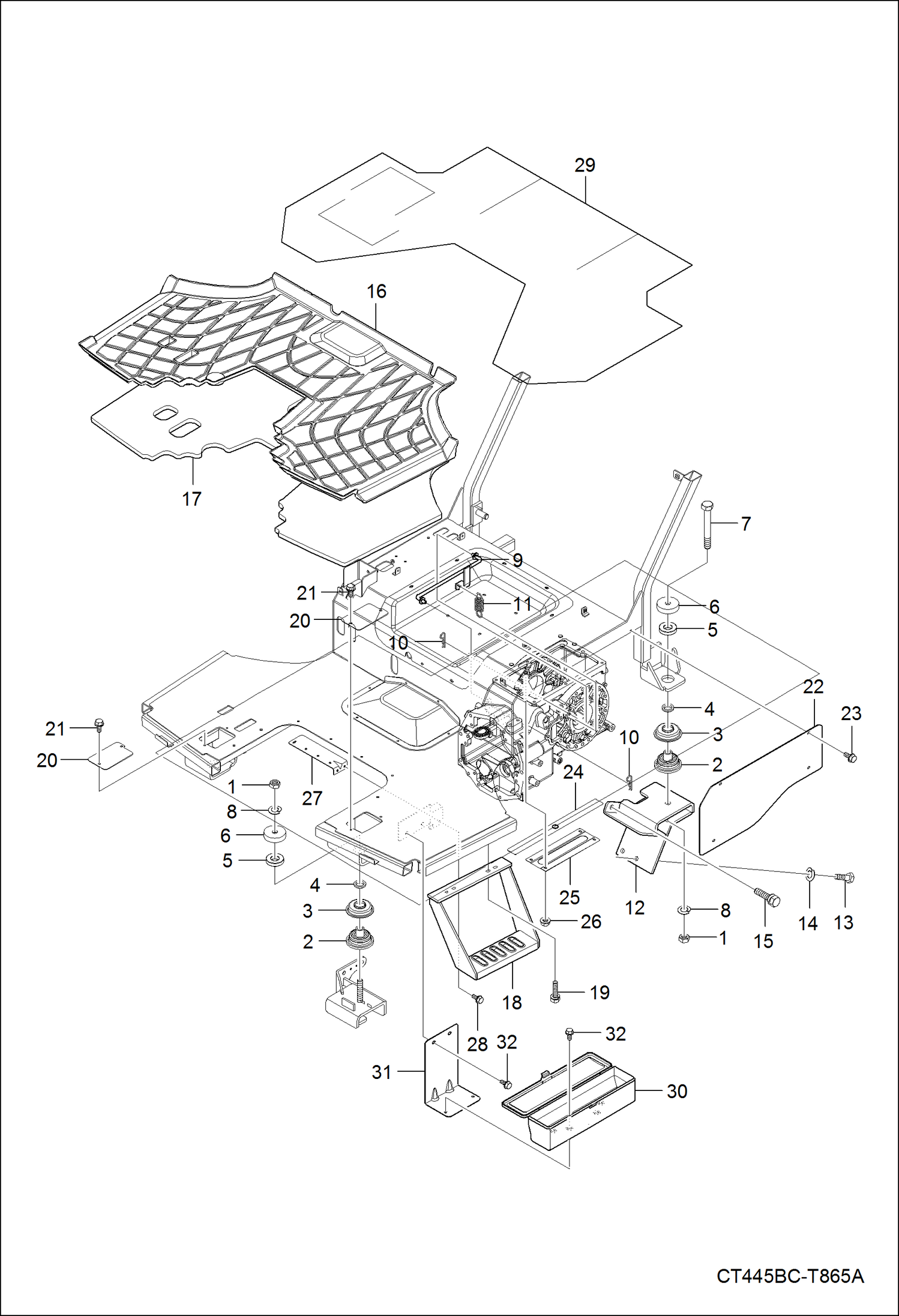

Схема запчастей Bobcat CT440 - STEP GROUP MAIN FRAME

Артикул

Название

Примечание

Количество

1

6694061

NUT

2

7003248

MOUNT, RUBBER

3

7003249

MOUNT, RUBBER

4

7003250

MOUNT, RUBBER

5

7003251

MOUNT, RUBBER

6

7003252

WASHER, CUSHION

7

7003430

BOLT

8

6694095

WASHER SPRING

9

7003114

ROD, DIFF SET

10

6694211

PIN, SNAP

11

7002307

SPRING, RETURN PEDAL

12

7003401

HOLDER, CHECK CHAIN

13

6695549

BOLT

14

6694094

WASHER SPRING

15

7003393

BOLT

16

7003196

MAT, STEP

17

7003130

INSULATION, FLOOR

18

7003129

STEP, CAB

19

6693982

BOLT

20

7003210

COVER

21

6695586

BOLT FLANGE

22

7003214

COVER

23

6695586

BOLT FLANGE

24

7003102

PLATE, GUIDE

25

7003103

PLATE, SLIDE

26

6696258

NUT FLANGE

27

7003131

BRACKET, HARNESS

28

6694024

BOLT FLANGE

29

7002176

PAD

30

7002437

BOX, TOOL

31

7003132

BRACKET

32

6694027

BOLT FLANGE

Выбрано товаров: 32
