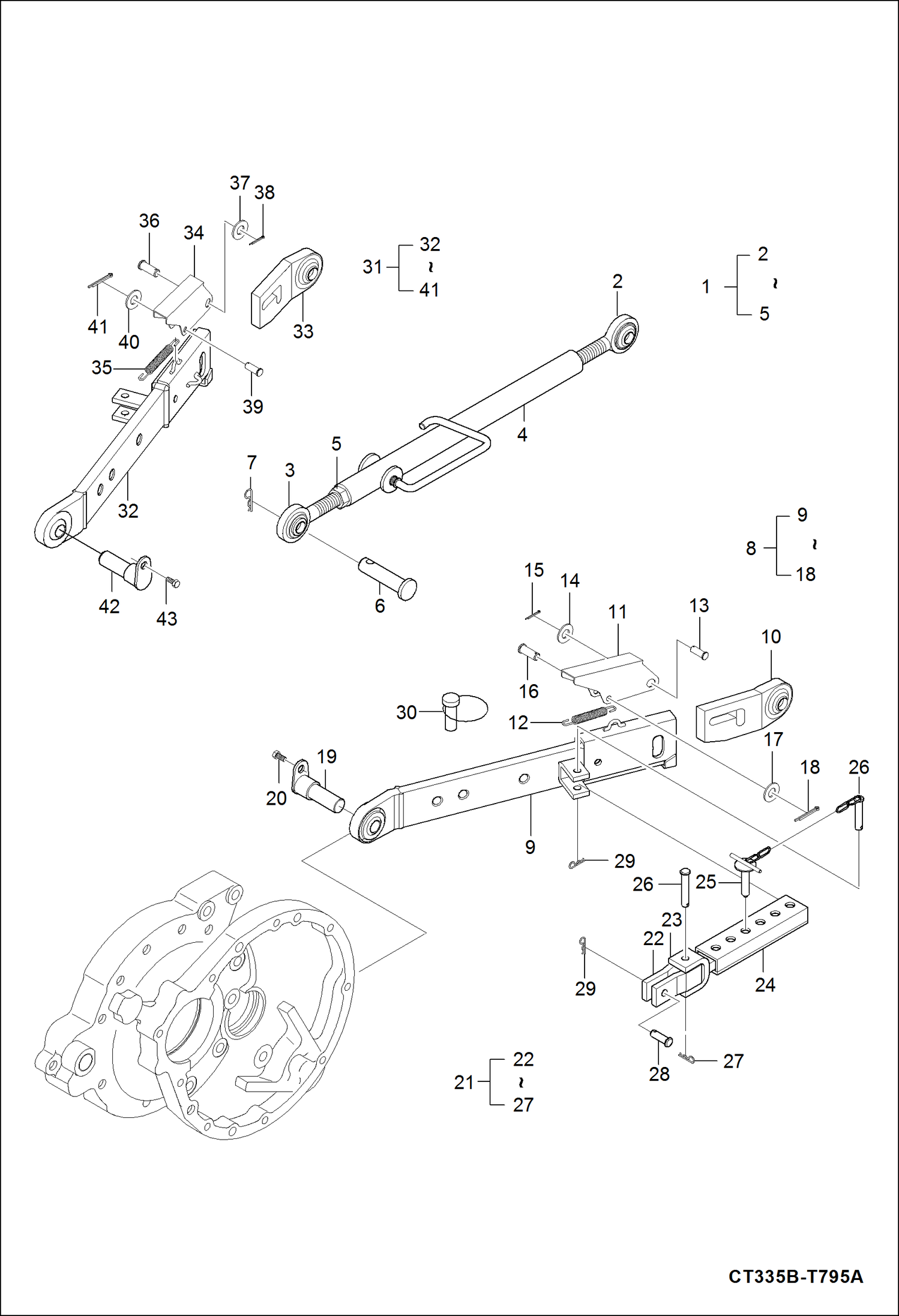

Запчасти Bobcat CT335 THREE POINT LINK SYSTEM GROUP 1 HYDRAULIC SYSTEM

1

7002439

LINK, TOP ASSY Ref. 2-5

2

6694356

JOINT, LINK TOP RH RH thread

3

6694357

JOINT, LINK TOP LH LH thread

4

7002438

LINK, TOP

5

7002585

NUT

6

7002034

PIN, LINK

7

6694213

PIN SNAP

8

6697445

LINK, LOWER LH Ref. 9-18

9

LINK, LOWER LH NLA - Order Ref. 8 - Was 7002264 - A

10

7001961

HOUSING, LOWER LINK LH

11

7002537

COVER

12

6696745

SPRING

13

6696345

PIN

14

6696915

WASHER PLAIN

15

6696918

PIN, SPLIT

16

6696363

PIN JOINT

17

6696912

WASHER PLAIN

18

6696380

PIN SPLIT

19

6696368

PIN, LINK LOWER

20

6697053

BOLT

21

7001973

BAR, SWAY ASSY assy - Ref. 22-27

22

6695354

BRACKET

23

6695294

BRACKET ASSY

24

7002575

HOUSING

25

6697347

PIN LOCK 1 pin W/chain

26

6696365

PIN JOINT

27

6696375

PIN SNAP

28

6696329

PIN

29

6696372

PIN SNAP

30

6697495

PIN, SET

31

6697446

LINK, LOWER RH assy - Ref. 32-41

32

LINK, LOWER RH NLA - Order Ref. 31 - Was 7002265 - A

33

7002262

HOUSING, LINK LOWER RH

34

7002537

COVER

35

6696745

SPRING

36

6696345

PIN

37

6696915

WASHER PLAIN

38

6696918

PIN, SPLIT

39

6696363

PIN JOINT

40

6696912

WASHER PLAIN

41

6696380

PIN SPLIT

42

6696368

PIN, LINK LOWER

43

6697053

BOLT
