Запчасти Bobcat CT335 MAIN DISTRIBUTOR V/V GROUP HYDRAULIC SYSTEM

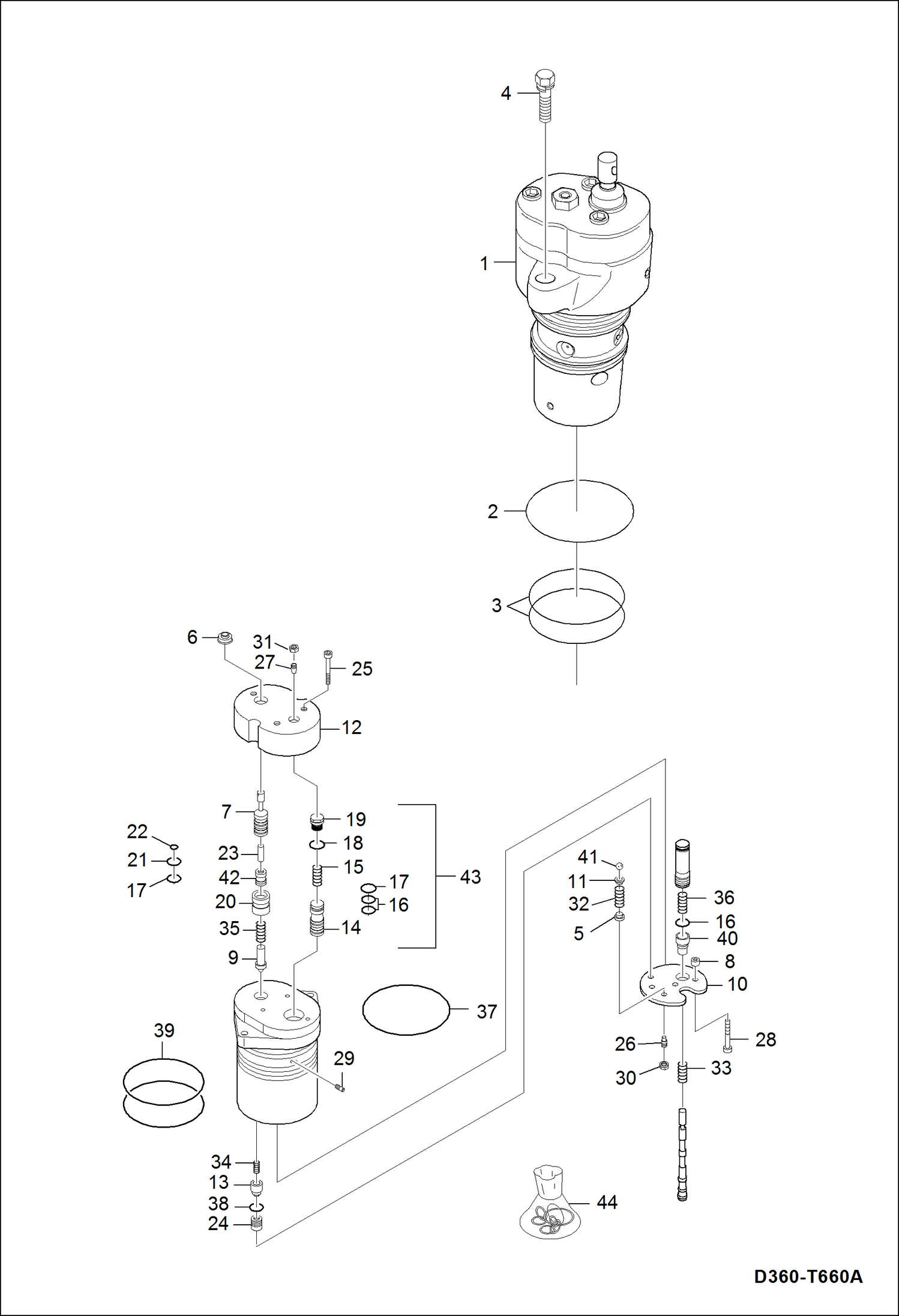

Схема запчастей Bobcat CT335 - MAIN DISTRIBUTOR V/V GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7000303

VALVE, MLS (MORE STEPS)

2

7002598

ORING

3

7002599

ORING

4

6693967

BOLT

5

6694281

SPACER

6

6694282

GUIDE, RUBBER

7

6697826

KIT, LEVER lever assy

8

6694283

SPACER

9

6694284

VALVE

10

6694285

PLATE

11

6694287

SPACER

12

6694288

COVER

13

6694289

VALVE

14

6694290

VALVE

15

6694367

SPRING

16

6694375

O-RING

17

6694376

O-RING

18

6694378

O-RING

19

6696442

PLUG

20

6694291

VALVE, SEAT

21

6694373

O-RING

22

6694374

O-RING

23

6694393

PIN

24

6694292

VALVE SEAT

25

6694343

SCREW, ADJUSTING

26

6694344

SCREW ADJUSTING

27

6694345

SCREW

28

6694346

SCREW ADJUSTING

29

6696554

SCREW

30

6694348

NUT

31

6694349

NUT

32

6694363

SPRING

33

6694364

SPRING

34

6694365

SPRING

35

6694366

SPRING

36

6694368

SPRING

37

6694372

PIN 10X65 DIN1481

38

6694377

O-RING

39

6694379

O-RING

40

6694390

PLUG

41

6694392

BALL

42

6694286

VALVE

43

6697820

VALVE assy - Ref. 14-19

44

7002360

KIT, SEAL

Выбрано товаров: 44
