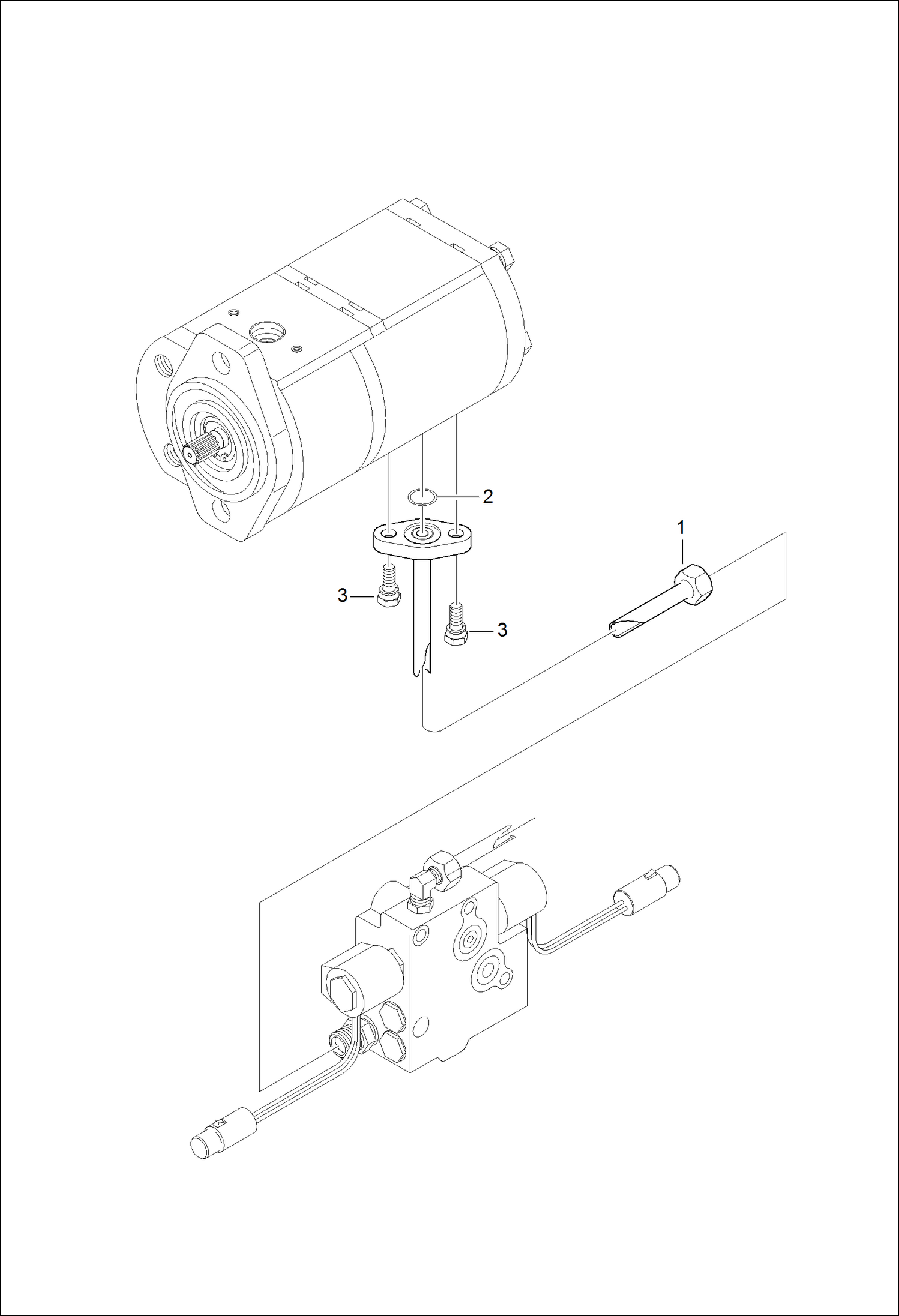

Запчасти Bobcat CT335 PTO HYDRAULIC TUBE GROUP HYDRAULIC SYSTEM

1

TUBELINE, HYD See Illustration MODULATE VALVE GROUP/ CT445B-T750A - NLA - W/flared nut - Order 7009054 fitting & 7009055 tubeline - Was 7002238 - A

1

7009055

TUBELINE W/flat O-ring seal face nut

2

6694136

O-RING

3

6697054

BOLT 8 mm x 20 mm long

3

6697056

BOLT 8 mm x 25 mm long
