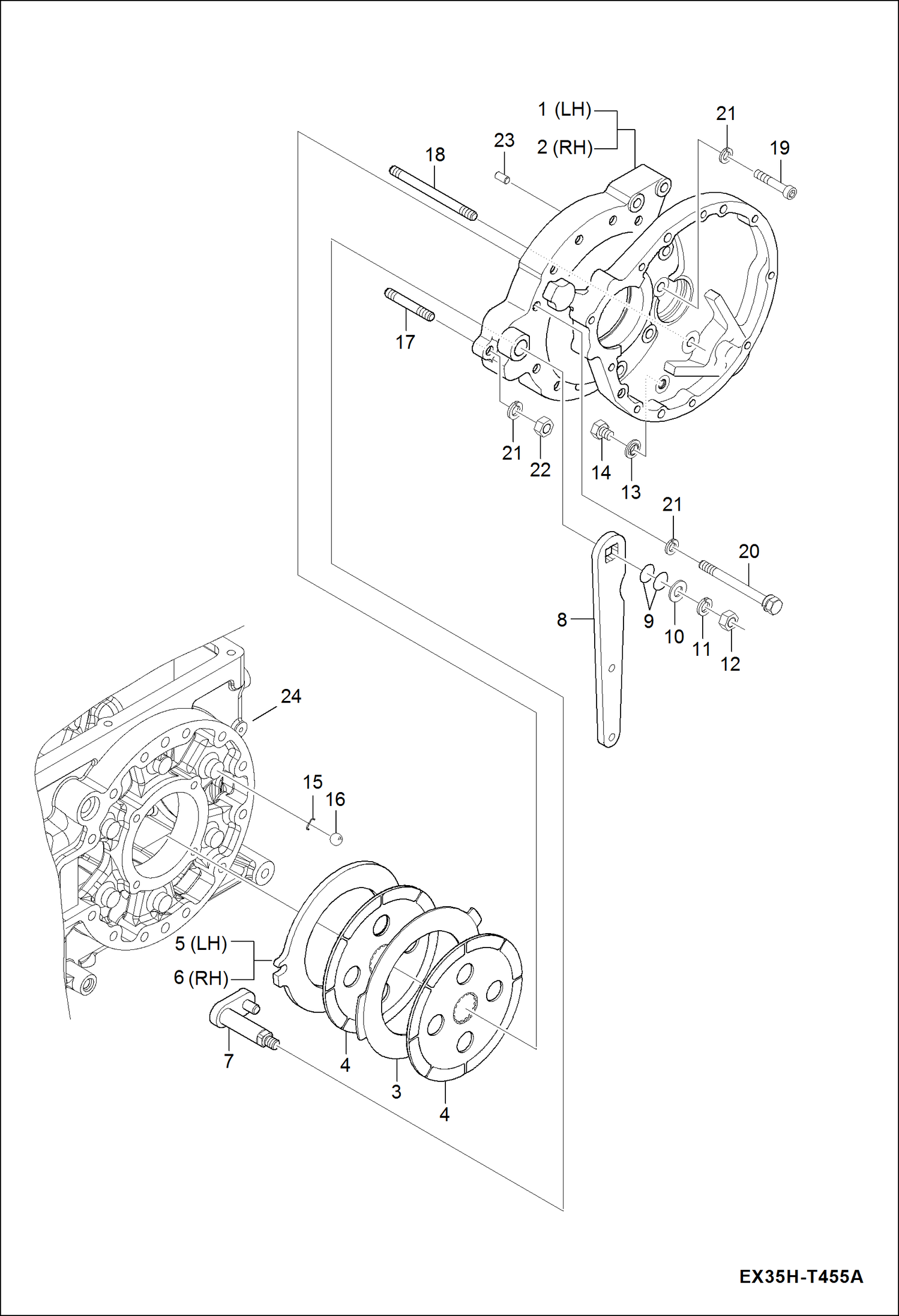

Запчасти Bobcat CT335 BRAKE CASE GROUP DRIVE TRAIN

1

7002005

HOUSING, BRAKE LH

2

7002021

HOUSING, BRAKE RH

3

6696412

PLATE

4

6697211

DISC BRAKE

5

6696418

PLATE CAM (LH)

6

6696419

PLATE, CAM RH

7

7002082

CAM, BRAKE

8

7001977

LEVER, CAM BRAKE

9

6696268

O-RING

10

6694082

WASHER PLAIN

11

6694094

WASHER SPRING

12

6696242

NUT

13

6694128

WASHER SEAL

14

6694360

PLUG, FILL

15

7002063

SEAT, BALL

16

6694230

BALL STEEL

17

7002688

STUD

18

6696786

STUD

19

6695571

BOLT HEX SOCKET

20

6695519

BOLT

21

6697776

WASHER SPRING

22

6694060

NUT

23

6696392

PIN STRAIGHT

24

CASE, TRANSMISSION See Illustration TRANSMISSION CASE GROUP/ CT445BS-T165A
