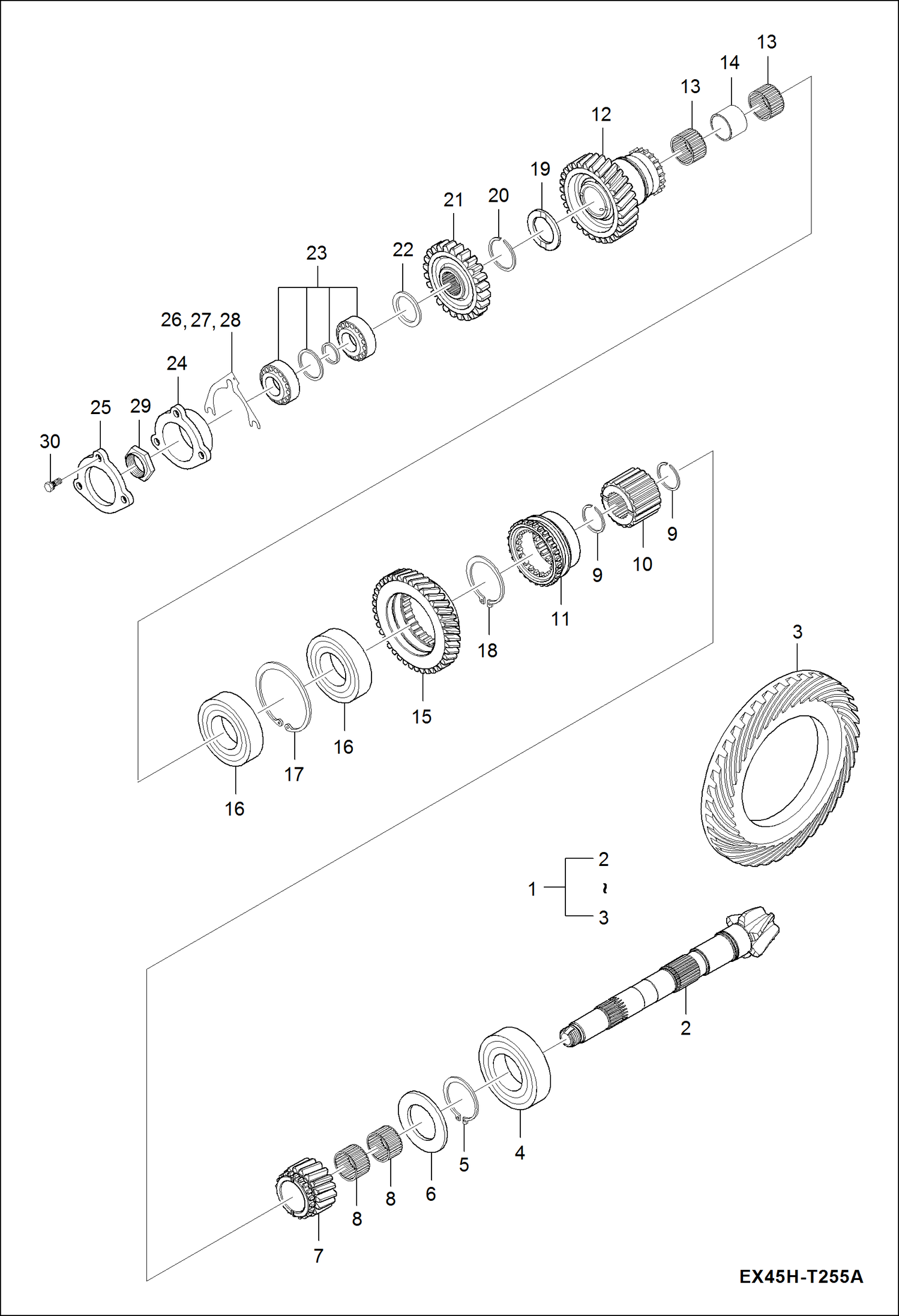

Запчасти Bobcat CT335 SPIRAL BEVEL PINION GROUP DRIVE TRAIN

1

7002873

GEAR, SPIRAL BEVEL ASSY Ref. 2-3

2

GEAR, SPIRAL BEVEL NLA - Order Ref. 1 - Was 7002403 - A

3

PINION, SPIRAL BEVEL NLA - Order Ref. 1 - Was 7002869 - A

4

7002351

BEARING, ROLLER

5

6694114

RING SNAP

6

7002428

COLLAR, THRUST

7

7002565

GEAR high

8

7002281

BEARING, NEEDLE

9

7002097

RETAINER, CIR-CLIP EXTERNAL

10

7002405

COUPLER, SPLINE

11

7002872

COLLAR, SHIFT Was 7002372 - A

12

7002866

SHAFT, GEAR Was 7002368 - A

13

7002280

BEARING, NEEDLE

14

7002671

SPACER

15

7002566

GEAR low

16

7002058

BEARING, BALL

17

6696493

RING SNAP

18

7002096

RETAINER, CIR-CLIP EXTERNAL

19

7002429

COLLAR, THRUST

20

7002095

RETAINER, CIR-CLIP

21

7002892

GEAR, BEVEL

22

6695737

COLLAR

23

7002423

BEARING, TAPERED ROLLER

24

7002070

HOUSING, BEARING

25

7002069

COVER, BEARING

26

7002453

SHIM 0,1 mm

27

7002455

SHIM 0,2 mm

28

7002460

SHIM 0,5 mm

29

6694352

NUT

30

6695514

BOLT
