Запчасти Bobcat CT335 FRONT DRIVE SYSTEM GROUP DRIVE TRAIN

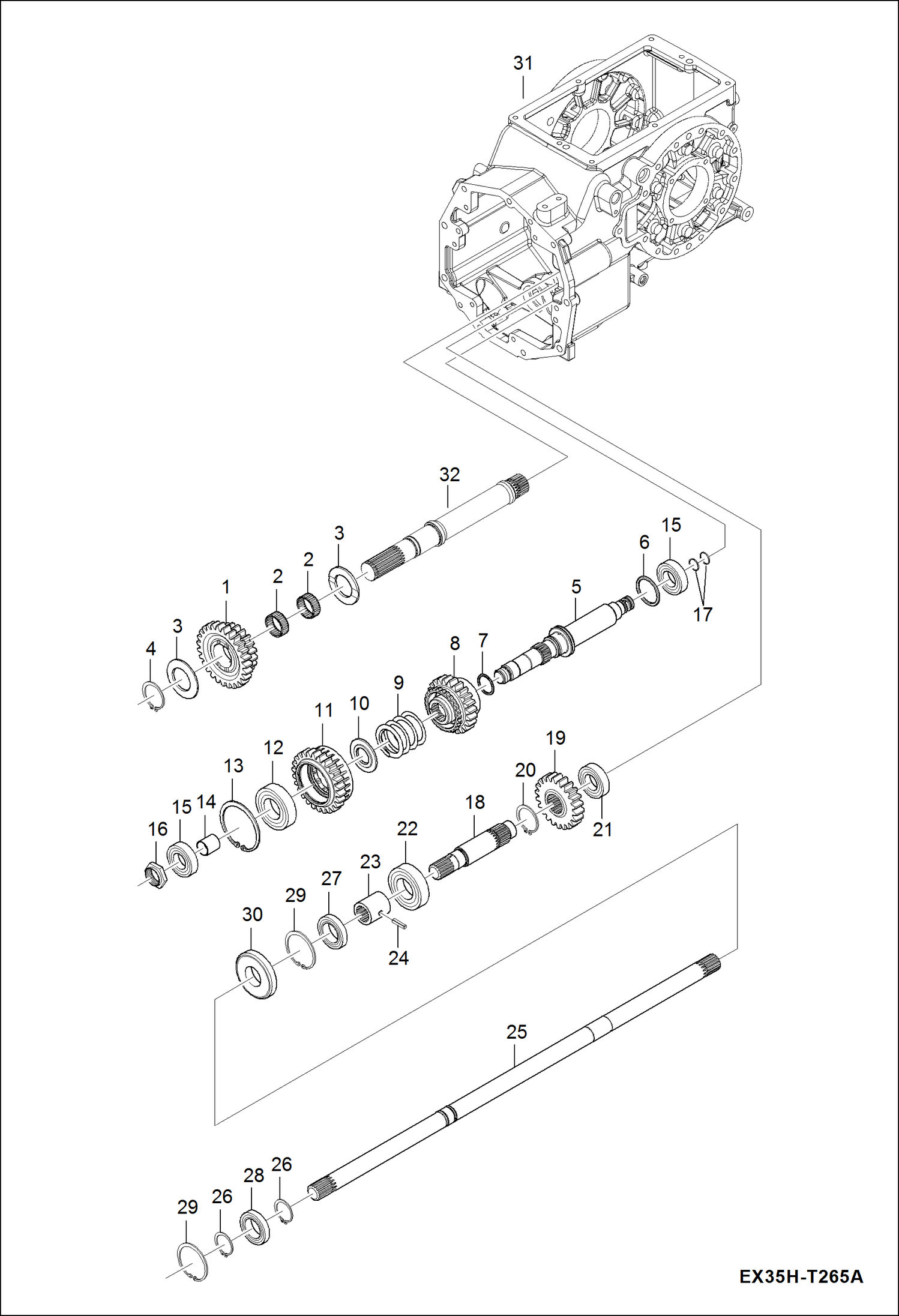

Схема запчастей Bobcat CT335 - FRONT DRIVE SYSTEM GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7002560

GEAR

2

7002278

BEARING, NEEDLE

3

7002428

COLLAR, THRUST

4

7002386

RING, SNAP

5

7002245

SHAFT, IDLE

6

7002638

RING

7

7002312

RING, PISTON

8

7002562

GEAR

9

7002675

SPRING

10

7002529

SPACER

11

7002561

GEAR

12

6694248

BEARING BALL

13

6694102

RING SNAP

14

7002666

SPACER

15

6694241

BEARING BALL

16

6694352

NUT

17

7002362

RING, SEAL

18

7002142

SHAFT, DRIVE

19

7002032

GEAR, 21

20

6694112

RING SNAP

21

6694241

BEARING BALL

22

6694248

BEARING BALL

23

6695805

COUPLER

24

6694199

PIN SPRING

25

7002143

SHAFT, DRIVE

26

6694110

RING SNAP

27

6694236

BEARING BALL

28

6695460

BEARING BALL

29

6694099

RING SNAP

30

6696576

SEAL OIL

31

CASE, TRANSMISSION See Illustration TRANSMISSION CASE GROUP/ CT445BS-T165A

32

SHAFT, PTO See Illustration PTO SHAFT GROUP/ EX45H-T285A

Выбрано товаров: 32
