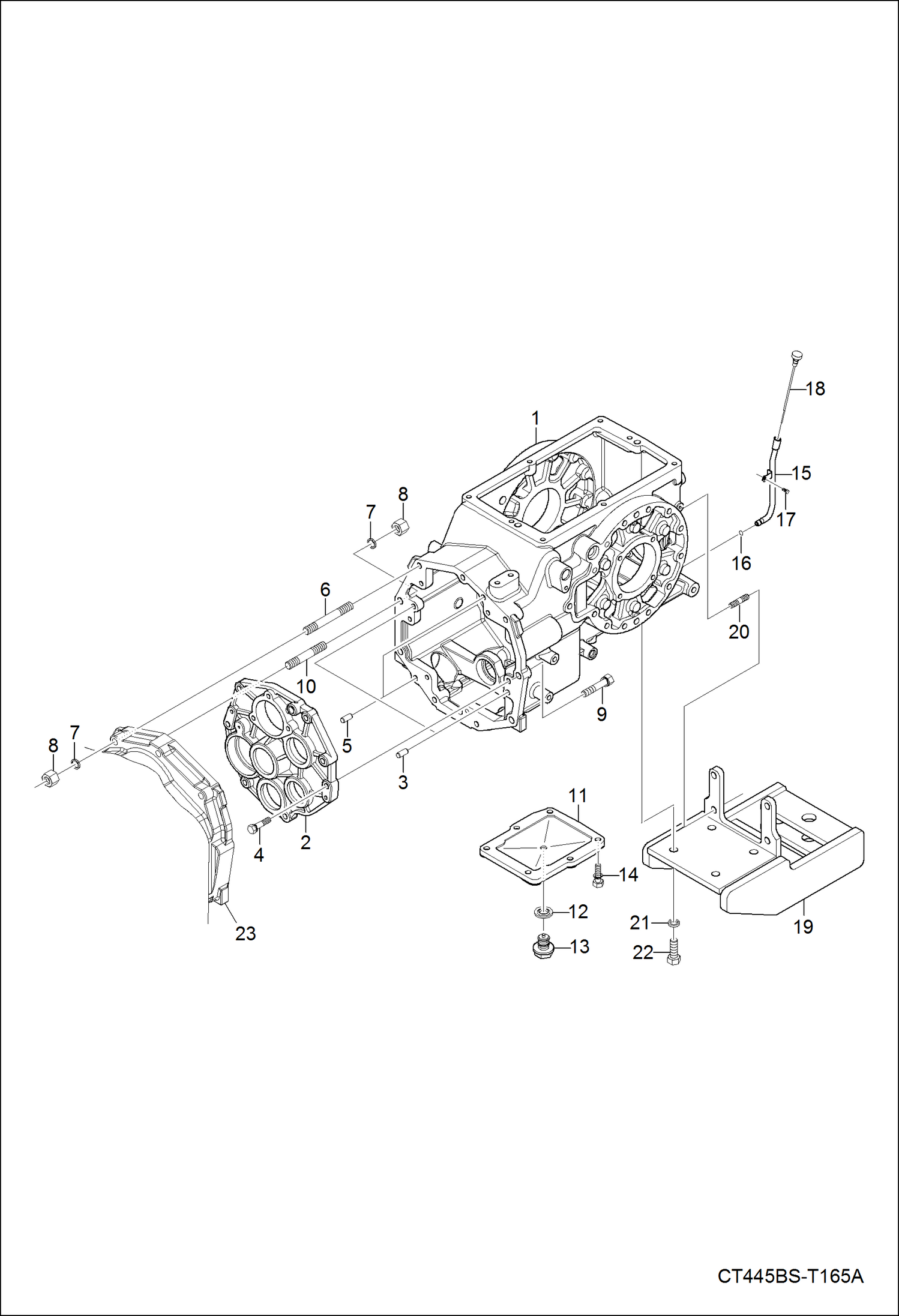

Запчасти Bobcat CT335 TRANSMISSION CASE GROUP DRIVE TRAIN

1

7002440

HOUSING, TRANSMISSION

2

7002067

COVER, BEARING

3

6694171

PIN STRAIGHT

4

6695514

BOLT

5

6694171

PIN STRAIGHT

6

7002686

STUD

7

6697776

WASHER SPRING

8

7002589

NUT

9

6693989

BOLT

10

7002685

STUD

11

7012919

COVER

12

6694129

WASHER SEAL

13

6697538

PLUG

14

6693982

BOLT

15

7002298

GUIDE, OIL GUAGE

16

6696300

O-RING

17

6697049

BOLT

18

7002286

GAUGE, OIL

19

FRAME, SWING DRAWBAR See Illustration DRAWBAR GROUP/ NACT445B-T815A

20

7002685

STUD

21

6694094

WASHER SPRING

22

6694001

BOLT

23

HOUSING, MIDDLE See Illustration MID CASE GROUP/ CT445B-T155A
