Запчасти Bobcat CT335 PTO COUNTER SHAFT GROUP DRIVE TRAIN

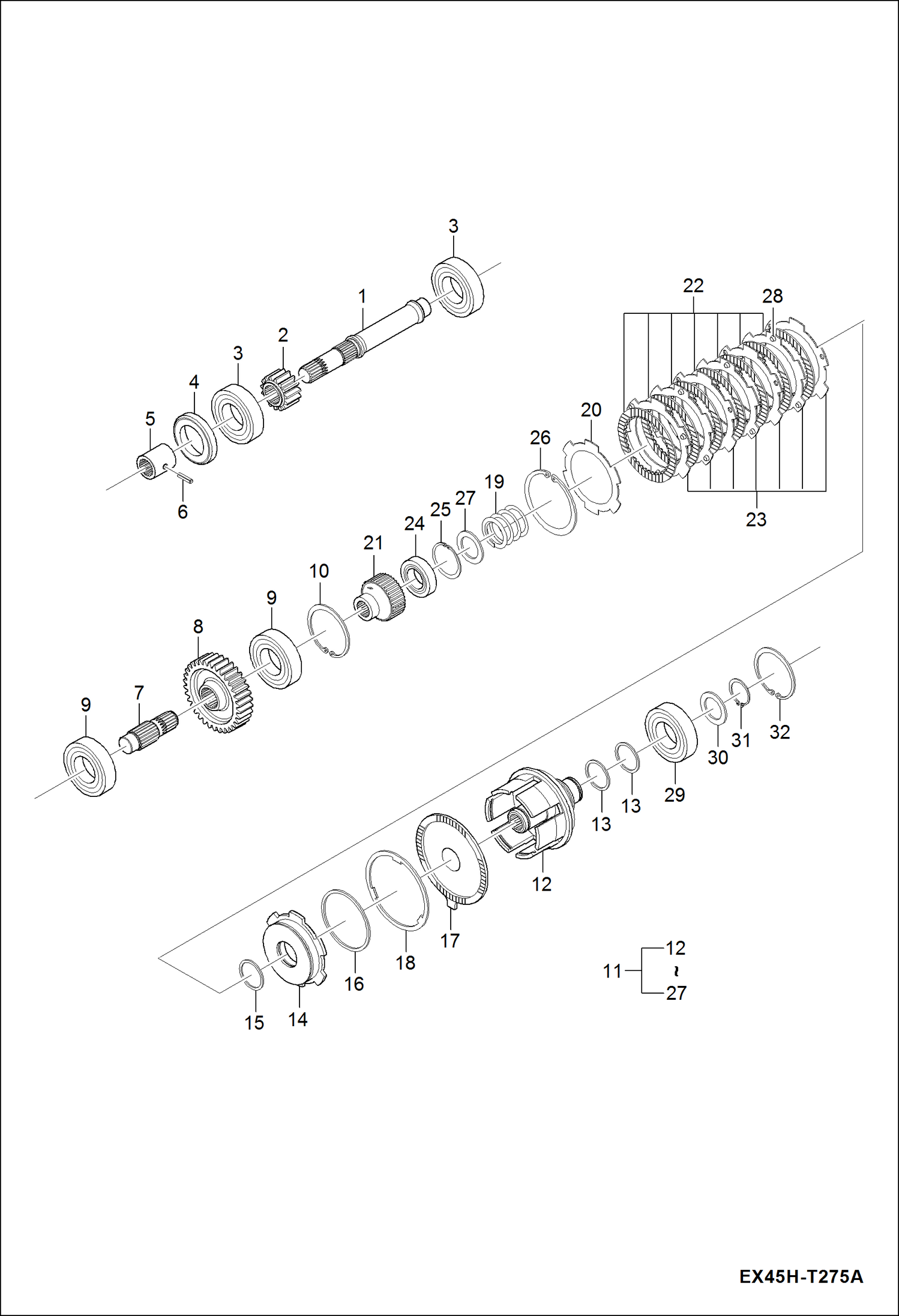

Схема запчастей Bobcat CT335 - PTO COUNTER SHAFT GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7002117

SHAFT, COUNTER

2

7002568

GEAR

3

6694248

BEARING BALL

4

6696576

SEAL OIL

5

7002533

COUPLER

6

6694199

PIN SPRING

7

7002118

SHAFT, COUNTER

8

7002569

GEAR

9

6694248

BEARING BALL

10

6694102

RING SNAP

11

7001971

CLUTCH, PTO ASSY Ref. 12-27

12

7001984

HOUSING, PTO CLUTCH CYL

13

7002363

RING, SEAL

14

7002102

PISTON, CLUTCH

15

7002313

RING, PISTON

16

7002314

RING, PISTON

17

7002085

PLATE, BRAKE

18

7002341

PLATE, RETURN

19

7002680

SPRING

20

7002320

PLATE, PRESSURE

21

7002407

HUB, SPLINE

22

7002099

DISK, CLUTCH

23

7002101

PLATE, CLUTCH

24

7002059

BEARING, BALL

25

6694114

RING SNAP

26

7002392

RING, SNAP

27

6696712

SPACER

28

7002358

BUMPER, RUBBER

29

6694243

BEARING BALL

30

6696712

SPACER

31

6695723

CIR-CLIP

32

6694103

RING SNAP

Выбрано товаров: 32
