Запчасти Bobcat CT335 PTO SHAFT GROUP DRIVE TRAIN

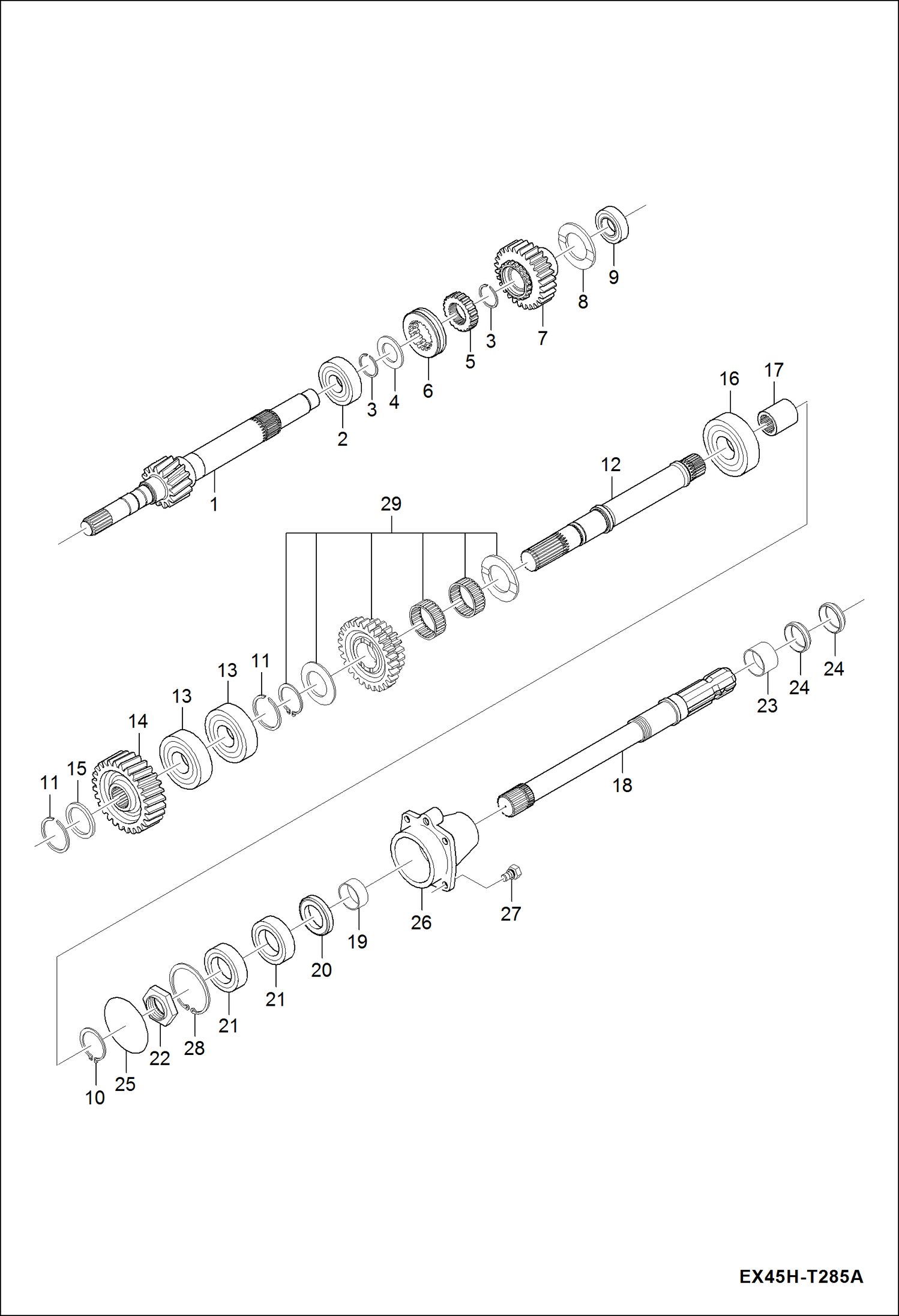

Схема запчастей Bobcat CT335 - PTO SHAFT GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7002197

SHAFT, GEAR

2

7002060

BEARING, BALL

3

7002098

RETAINER, CIR-CLIP EXTERNAL

4

7002399

PLATE, SPACER

5

7002406

COUPLER, SPLINE

6

7002373

COLLAR, SHIFT

7

7002571

GEAR

8

7002430

COLLAR, THRUST

9

6694248

BEARING BALL

10

6694112

RING SNAP

11

7002097

RETAINER, CIR-CLIP EXTERNAL Was 6694112 - B,D

12

7002144

SHAFT, DRIVE PTO

13

6694242

BEARING BALL

14

7002570

GEAR

15

6696898

WASHER

16

6694237

BEARING BALL

17

7002534

COUPLER

18

7002016

SHAFT, OUTPUT PTO

19

7002451

SLEEVE, WEAR

20

7002293

SEAL, OIL

21

7002061

BEARING, BALL

22

7002591

NUT

23

7002662

SLEEVE

24

7002292

SEAL, OIL

25

6694163

O-RING

26

7002071

HOUSING, BEARING

27

6693966

BOLT

28

7002393

RING, SNAP

29

GEAR ASSY See Illustration FRONT DRIVE SYSTEM GROUP/ EX35H-T265A

Выбрано товаров: 29
