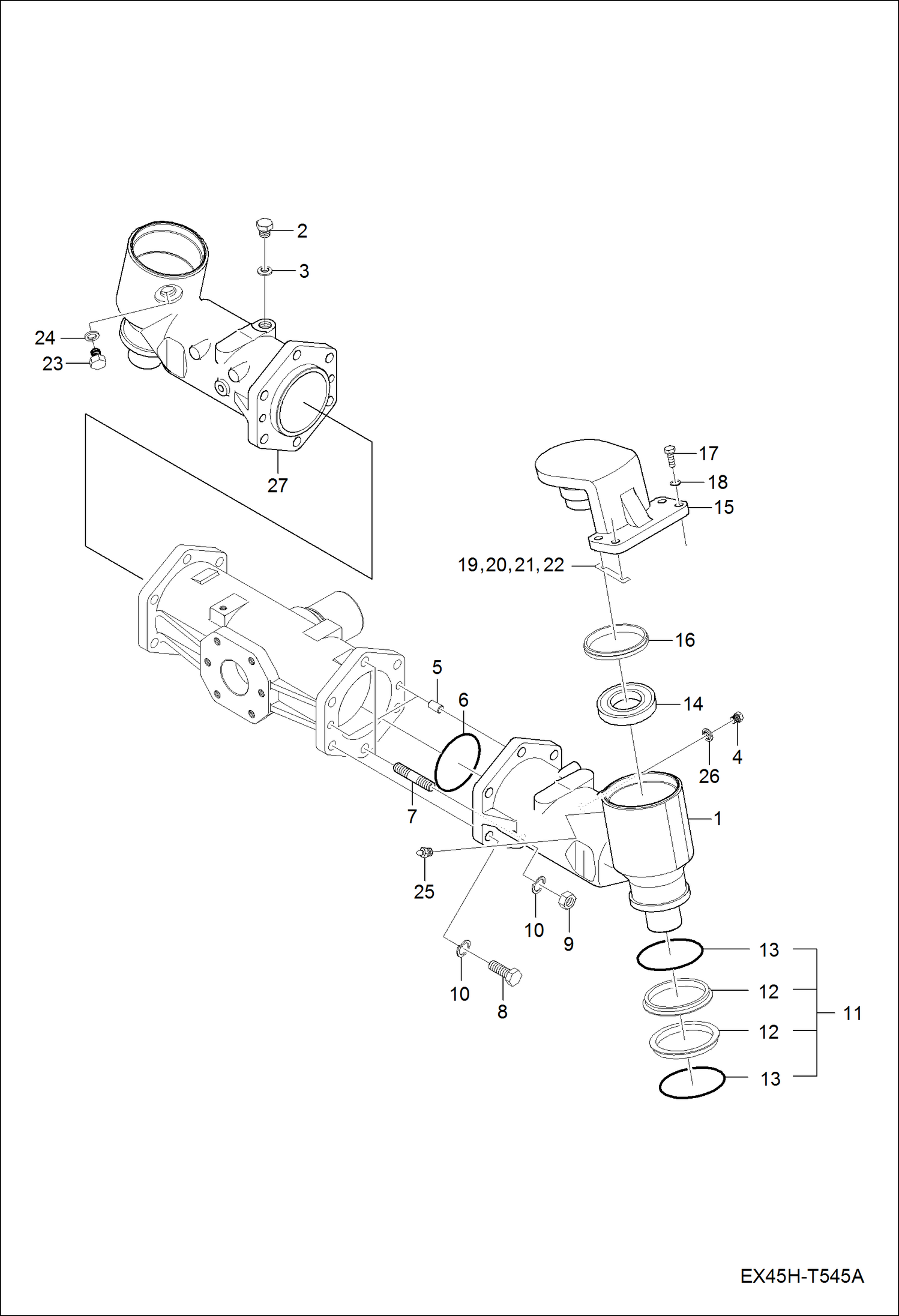

Запчасти Bobcat CT335 BEVEL GEAR CASE GROUP (Dual Steering Cylinders) DRIVE TRAIN

1

7001998

HOUSING, BEVEL GEAR LH - Was 7013083 - B

2

6694360

PLUG, FILL

3

6694128

WASHER SEAL

4

6697534

PLUG

5

6696393

PIN STRAIGHT

6

6696279

O-RING

7

7002687

STUD

8

7002489

BOLT

9

6696242

NUT

10

6694094

WASHER SPRING

11

7002175

SEAL, FLOATING Ref. 12 & 13

12

7002361

RING, SEAL

13

7002594

ORING

14

7002471

BEARING

15

7001978

SUPPORT, AXLE CASE

16

7002288

SEAL, OIL

17

6695528

BOLT

18

6697776

WASHER SPRING

19

7002459

SHIM 0,5 mm

20

7002461

SHIM 0,8 mm

21

7002464

SHIM 1,0 mm

22

7002467

SHIM 1,2 mm

23

7002629

PLUG

24

6696921

WASHER SEAL

25

6694227

FITTING, GREASE

26

6694125

WASHER, SEALING

27

7002920

HOUSING, BEVEL GEAR RH
