Запчасти Bobcat CT335 BEVEL GEAR SHAFT GROUP DRIVE TRAIN

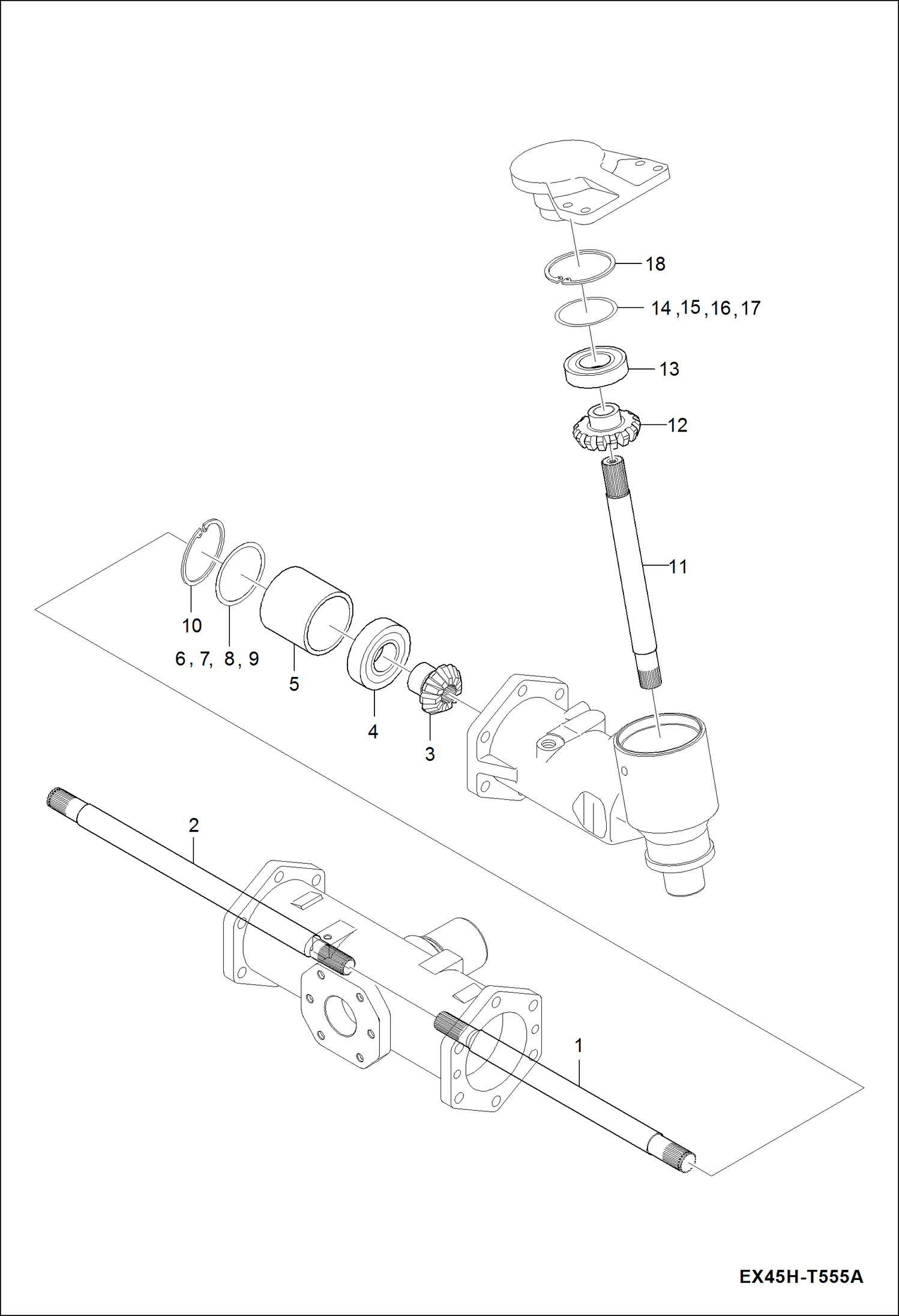

Схема запчастей Bobcat CT335 - BEVEL GEAR SHAFT GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7001960

SHAFT, DIFF GEAR LH LH

2

7002000

SHAFT, DIFF GEAR RH

3

7021042

KIT, GEAR BEVEL W/Ref. 12 - Was 7002078 - A

4

7002060

BEARING, BALL

5

SPACER NLA - not used - Was 7002672 - D

6

7002457

SHIM 0,4 mm

7

7002462

SHIM 0,8 mm

8

7002465

SHIM 1,0 mm

9

7002468

SHIM 1,2 mm

10

6696493

RING SNAP

11

7002199

SHAFT, GEAR BEVEL

12

7021042

KIT, GEAR BEVEL W/Ref. 3 - Was 7002076 - A

13

7002062

BEARING, BALL

14

7002458

SHIM 0,4 mm

15

7002463

SHIM 0,8 mm

16

7002466

SHIM 1,0 mm

17

7002469

SHIM 1,2 mm

18

7002395

SUPPORT, COUPLER

Выбрано товаров: 18
