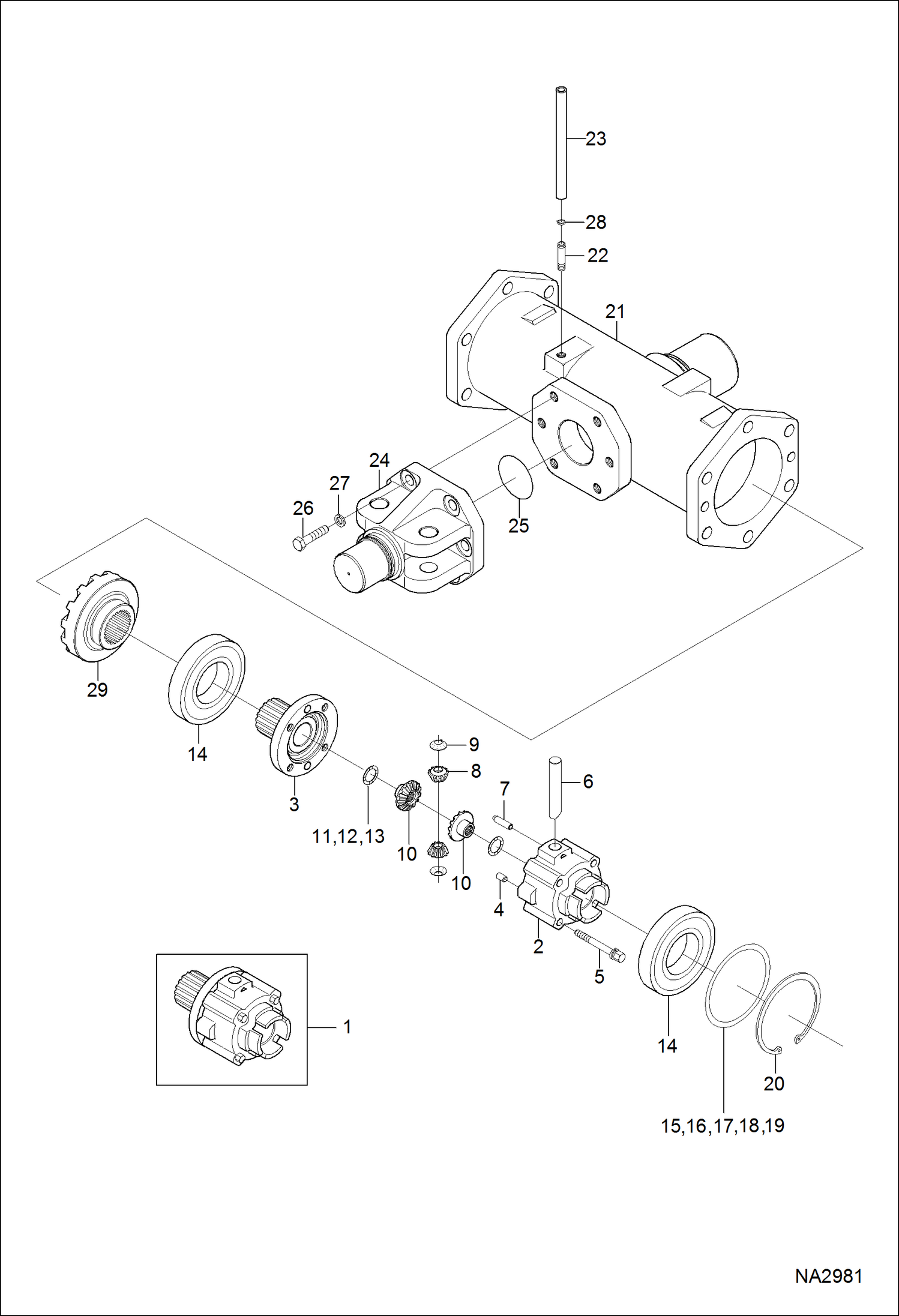

Запчасти Bobcat CT335 FRONT AXLE SUPPORT & DIFFERENTIAL GROUP (Dual Steering Cylinders) DRIVE TRAIN

1

7002183

DIFFERENTIAL, FRONT assy - Ref. 2-13

2

6695707

HOUSING FRONT DIFF

3

7002131

COVER, DIFF

4

6694171

PIN STRAIGHT

5

6695516

BOLT

6

6696617

SHAFT DIFF PINION

7

6696350

PIN STRAIGHT

8

6695875

GEAR, PINION

9

6696903

WASHER, DIFF PINION

10

6696011

GEAR DIFF SIDE

11

6696657

SHIM 0,8 mm

12

6696659

SHIM 1,0 mm

13

6696662

SHIM 1,2 mm

14

6695457

BEARING BALL

15

6696656

SHIM 0,8 mm

16

6696658

SHIM 1,0 mm

17

6696661

SHIM 1,2 mm

18

6696664

SHIM 2,0 mm

19

6696665

SHIM 2,3 mm

20

7002394

RING, SNAP 3 mm thick for 7001974 front axle support

20

7012822

RING, SNAP 4 mm thick for 7021633 front axle support

21

7001974

SUPPORT, FRONT AXLE with 3 mm snap ring groove for 7002394 snap ring

21

7021633

SUPPORT, FRONT AXLE with 4 mm snap ring groove for 7012822 snap ring

22

6695791

CONNECTOR AIR BREATHER

23

6696117

HOSE, OVER FLOW

24

6697485

PIN CENTER

25

6696271

O-RING

26

6695528

BOLT

27

6697776

WASHER SPRING

28

6694323

CLAMP, HOSE

29

GEAR, SPIRAL BEVEL
