Запчасти Bobcat CT335 FRONT AXLE BRACKET GROUP DRIVE TRAIN

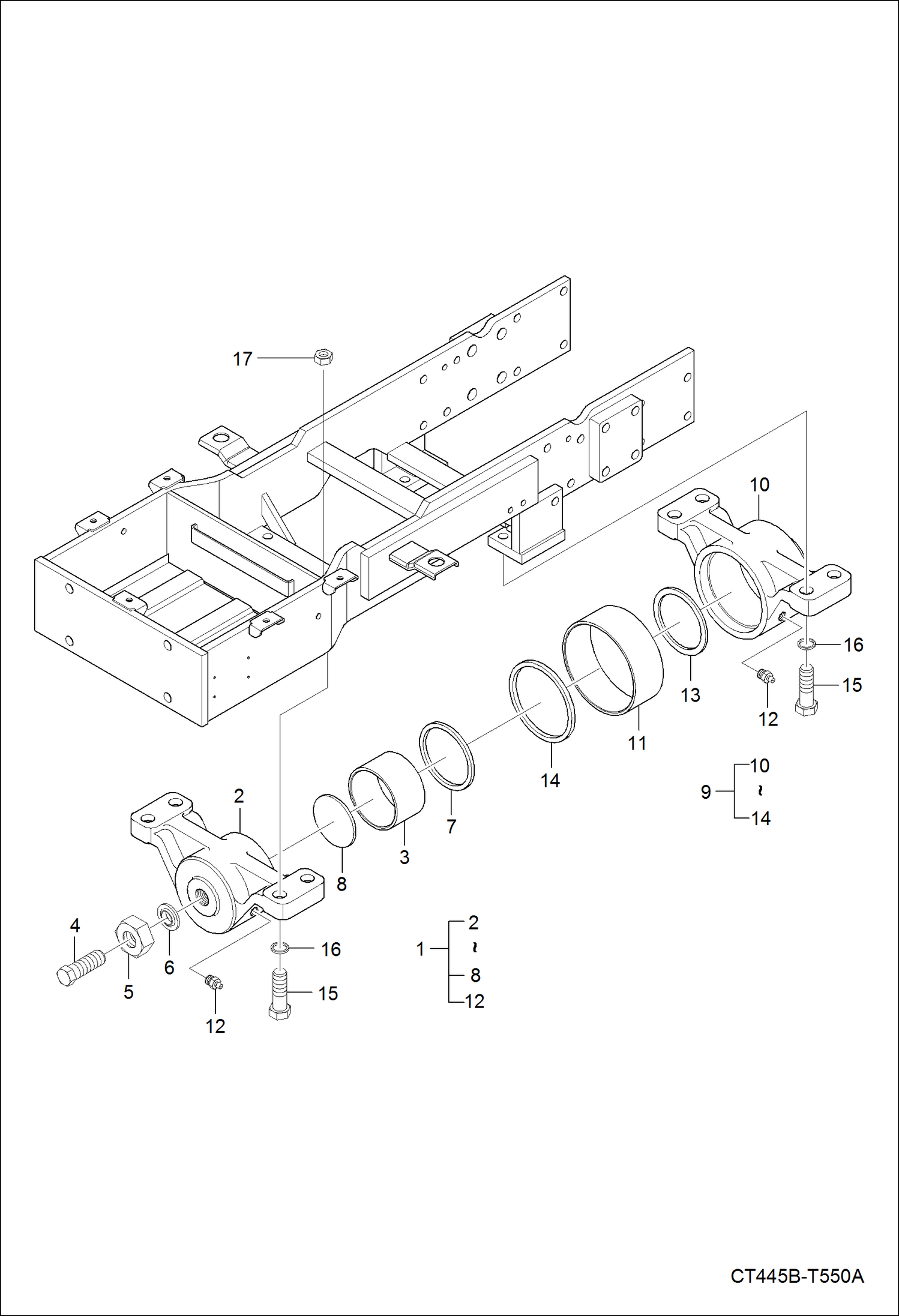

Схема запчастей Bobcat CT335 - FRONT AXLE BRACKET GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7013309

BRACKET, FRONT Ref. 2-8 & 12

2

7002514

BRACKET

3

6695658

BUSHING DX

4

6694389

BOLT

5

6694058

NUT

6

6694388

WASHER SEAL

7

6696271

O-RING

8

6695739

BUSHING

9

7013310

BRACKET, REAR Ref. 10-14

10

7002515

BRACKET

11

7002520

BUSHING

12

6694227

FITTING, GREASE

13

7002427

COLLAR, THRUST

14

7002595

ORING

15

7002490

BOLT

16

6694094

WASHER SPRING

17

6696242

NUT

Выбрано товаров: 17
