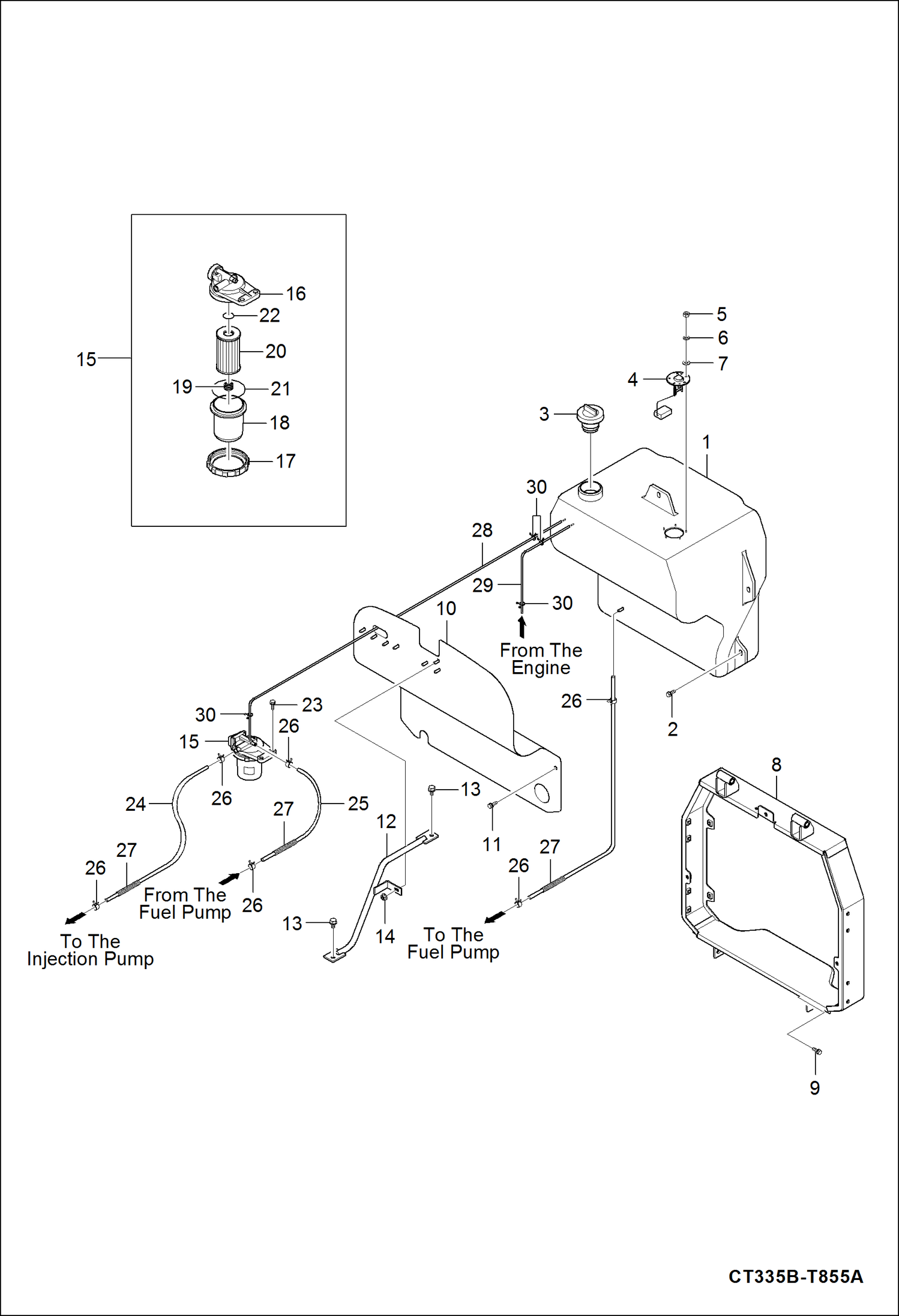

Запчасти Bobcat CT335 FUEL TANK GROUP MAIN FRAME

1

7013058

TANK, FUEL Was 7002191

2

6694027

BOLT FLANGE

3

6695370

CAP, FUEL

4

7002190

SENDER, FUEL

5

6694037

NUT

6

6694090

WASHER SPRING

7

6694076

WASHER PLAIN

8

7013059

SUPPORT, TANK FUEL Was 7001997 - A

9

6695512

BOLT

10

7013062

PLATE Was 7002125 - A

11

6694027

BOLT FLANGE

12

7002691

SUPPORT

13

6695569

BOLT FLANGE 8 mm x 20 mm long

13

6694027

BOLT FLANGE 8 mm x 16 mm long

14

6696258

NUT FLANGE

15

7002188

FILTER, FUEL assy - Ref. 16-22

16

6697045

HOUSING BODY FUEL FILTER

17

6696486

RING RETAINER

18

6696463

HOUSING FILTER

19

6696732

SPRING

20

6695912

FILTER FUEL ELEMENT

21

6694162

SEAL O RING

22

6694147

O-RING

23

7002481

BOLT

24

6696103

HOSE 1, FUEL

25

6696102

HOSE, FUEL

26

6694297

CLAMP, HOSE

27

6694403

GUARD, SPRING

28

6694280

HOSE, FUEL RETURN

29

7002189

HOSE, FUEL

30

6697140

CLAMP, HOSE
