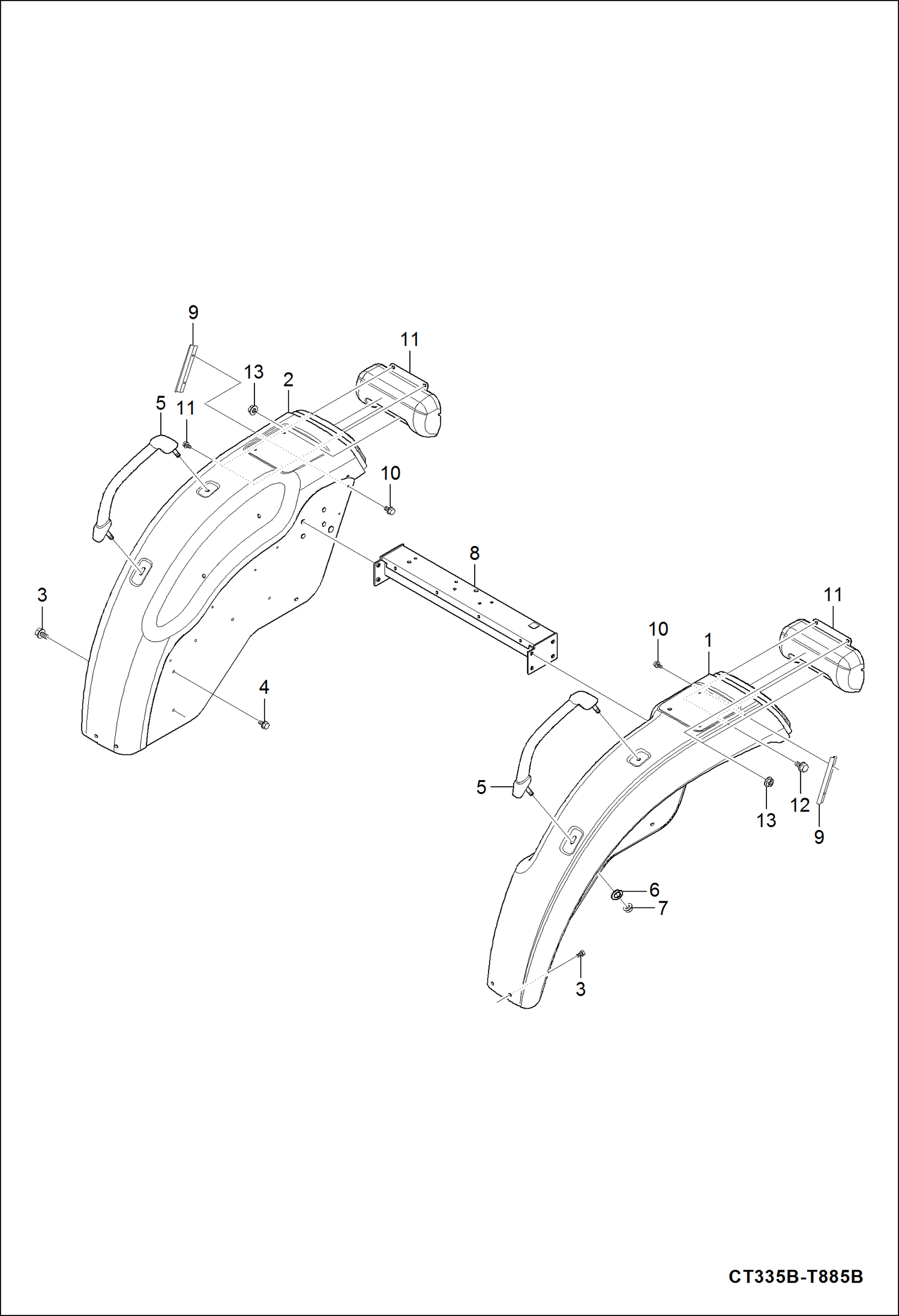

Запчасти Bobcat CT335 FENDER GROUP MAIN FRAME

1

7010617

FENDER, LH Was 7002254 - A

2

7010618

FENDER, RH Was 7002342 - A

3

6694027

BOLT FLANGE

4

6694026

BOLT FLANGE

5

7002205

HANDLE, GRAB

6

6694093

WASHER SPRING

7

7002586

NUT

8

7012322

SUPPORT, FENDER Was 7002169 - A

9

7002116

CLAMP, CORD

10

6695557

BOLT, FLANGE

11

7002538

COVER

12

7002482

BOLT

13

6696258

NUT FLANGE
