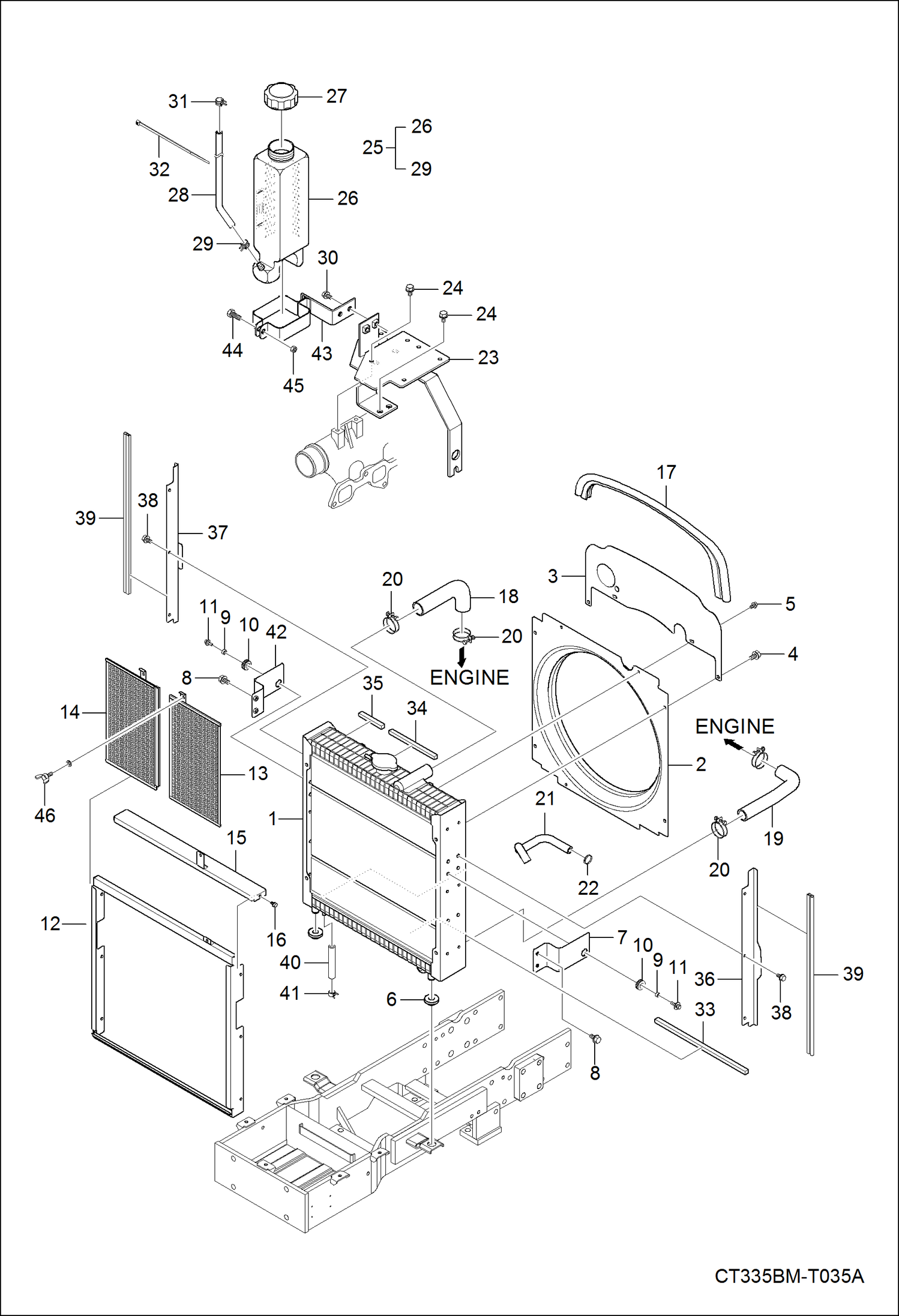

Запчасти Bobcat CT335 RADIATOR GROUP POWER UNIT

1

7013126

EXCHANGER, WATER RADIATOR

1

7002330

CAP, RADIATOR

2

7002163

SHROUD, FAN

3

7013039

PLATE

4

6695586

BOLT FLANGE

5

6695570

BOLT, FLANGE

6

7000278

CUSHION

7

7002158

BRACKET, EXCHANGER

8

6694027

BOLT FLANGE

9

6695127

SPACER

10

6695128

GROMMET

11

6693977

BOLT

12

7013087

GUIDE, SCREEN

13

7002129

SCREEN, DEBRIS

14

7002130

SCREEN, DEBRIS

15

7002536

COVER

16

6695586

BOLT FLANGE

17

7002652

SEAL

18

7001991

HOSE, WATER FORMED

19

7001992

HOSE, WATER FORMED

20

6695444

CLAMP HOSE

21

7001990

HOSE, HEATER FORMED

22

7012856

CLAMP, HOSE

23

7002503

BRACKET

24

6697054

BOLT

25

7002449

TANK, WATER

26

7002294

TANK, WATER

27

7002187

CAP

28

7002216

HOSE, HEATER

29

7002218

CLAMP, HOSE

30

6694027

BOLT FLANGE

31

6694323

CLAMP, HOSE

32

6695800

BAND, CORD

33

7002550

FOAM

34

7002551

FOAM

35

7002552

FOAM

36

7002376

COVER, SIDE LH

37

7002379

COVER, SIDE RH

38

6695586

BOLT FLANGE

39

7002653

SEAL

40

7000815

HOSE 1, FUEL

41

6694297

CLAMP, HOSE

42

7002159

BRACKET, EXCHANGER

43

7002504

BRACKET

44

6693975

BOLT

45

7002174

NUT, FLANGE

46

7000306

BOLT
