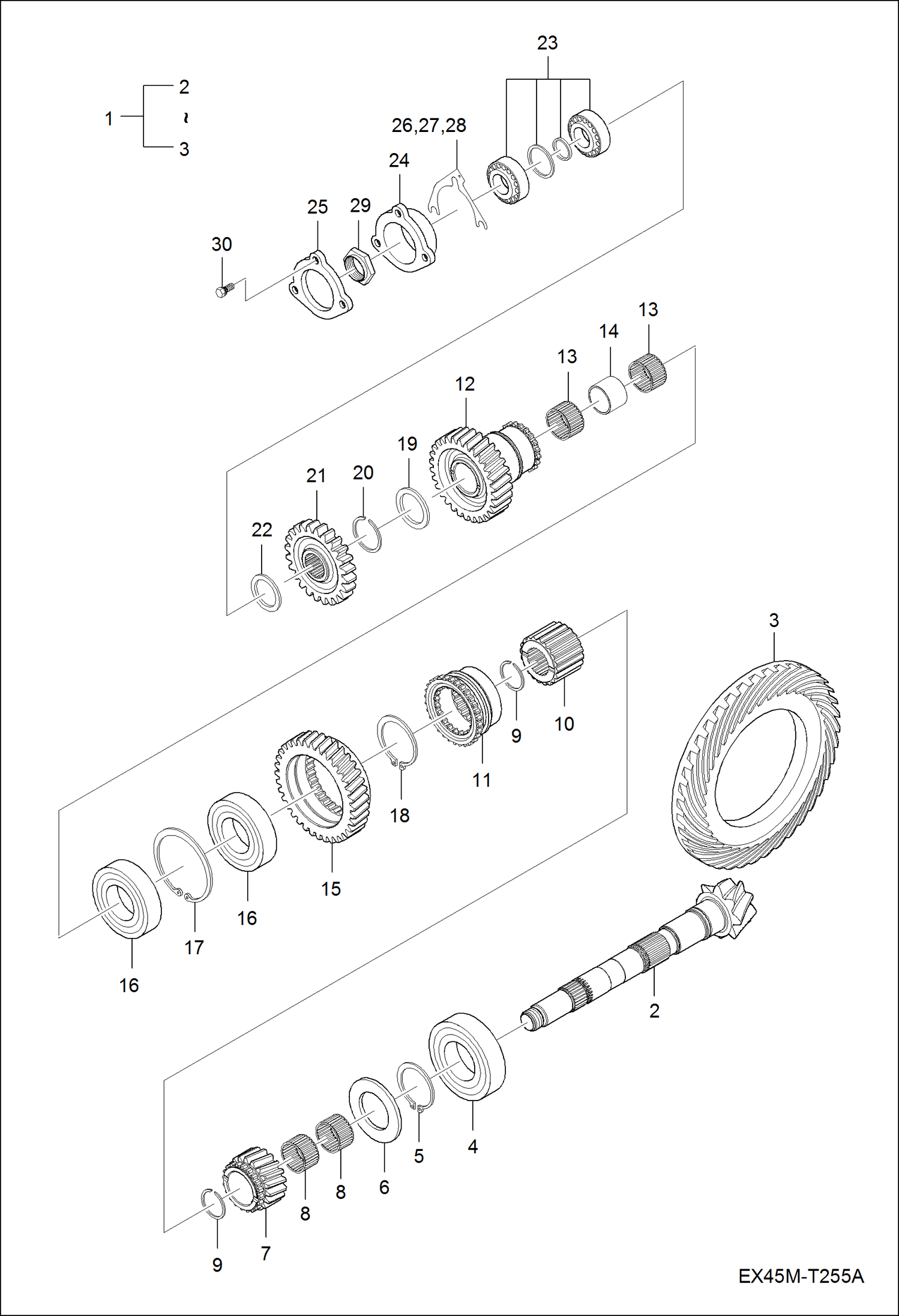

Запчасти Bobcat CT335 SPIRAL BEVEL PINION GROUP DRIVE TRAIN

1

7002873

GEAR, SPIRAL BEVEL ASSY Ref. 2-3

2

7002403

GEAR, SPIRAL BEVEL

3

7002869

PINION, SPIRAL BEVEL

4

7002351

BEARING, ROLLER

5

6694114

RING SNAP

6

7002428

COLLAR, THRUST

7

7012981

GEAR

8

7002281

BEARING, NEEDLE

9

7002097

RETAINER, CIR-CLIP EXTERNAL

10

7002405

COUPLER, SPLINE

11

7002872

COLLAR, SHIFT

12

7002866

SHAFT, GEAR

13

7002280

BEARING, NEEDLE

14

7002671

SPACER

15

7012982

GEAR

16

7002058

BEARING, BALL

17

6696493

RING SNAP

18

7002096

RETAINER, CIR-CLIP EXTERNAL

19

7002429

COLLAR, THRUST

20

7002095

RETAINER, CIR-CLIP

21

7002892

GEAR, BEVEL

22

6695737

COLLAR

23

7002423

BEARING, TAPERED ROLLER

24

7002070

HOUSING, BEARING

25

7002069

COVER, BEARING

26

7002453

SHIM

27

7002455

SHIM

28

7002460

SHIM

29

6694352

NUT

30

6695514

BOLT
