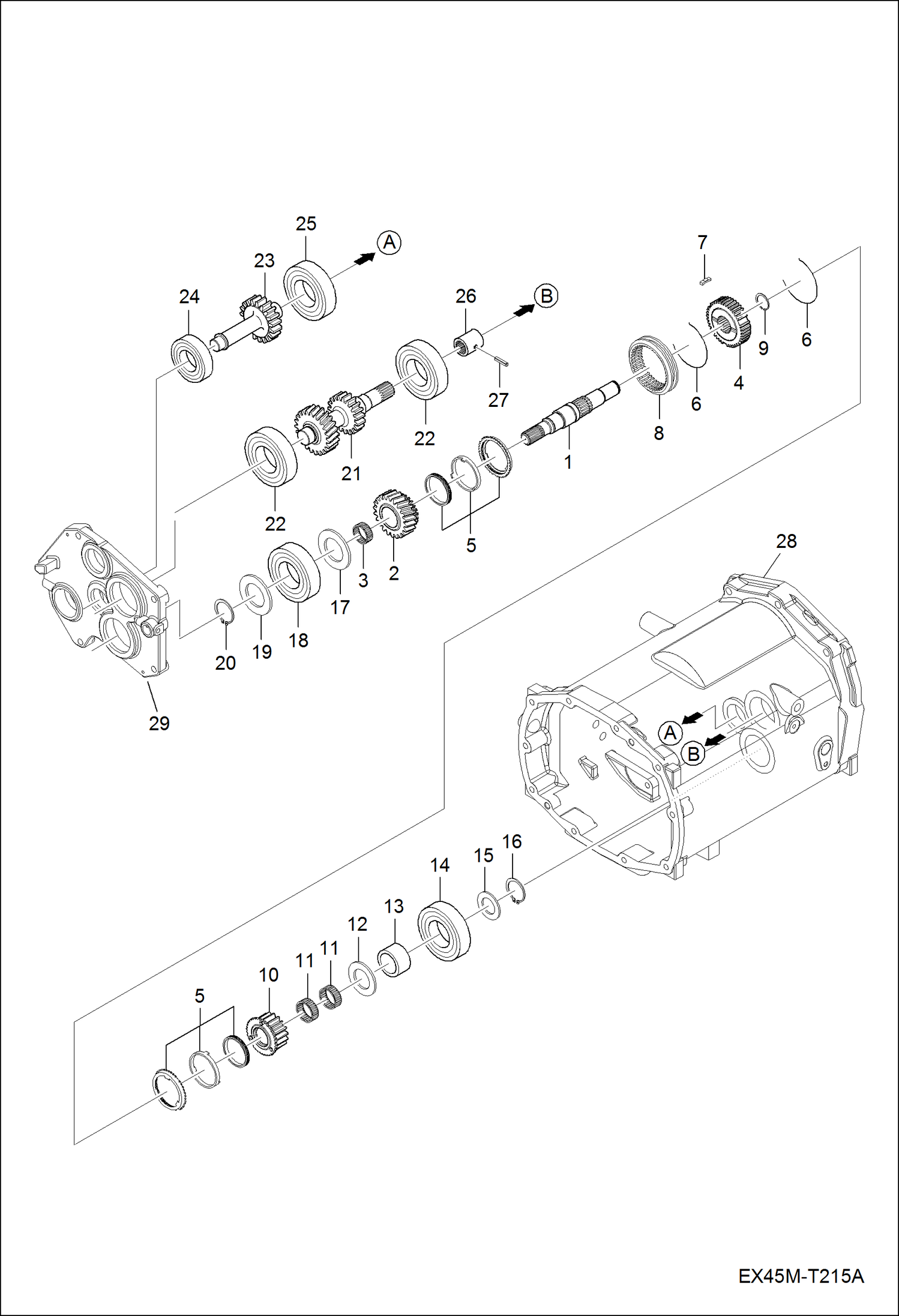

Запчасти Bobcat CT335 SHUTTLE SHAFT GROUP DRIVE TRAIN

1

7012976

SHAFT

2

7012974

GEAR

3

7012831

BEARING, NEEDLE

4

7012914

HUB, SPLINE

5

7012917

RING, SYNCHRO ASSY

6

7012854

SPRING

7

7012911

KEY, SYNCHRO

8

7012916

COLLAR, SHIFT

9

7012915

RING, SNAP

10

7012975

GEAR

11

7012829

BEARING, NEEDLE

12

7002430

COLLAR, THRUST

13

7012918

SPACER

14

7002056

BEARING, BALL

15

6695737

COLLAR

16

6694110

RING SNAP

17

7012893

COLLAR, THRUST

18

6694249

BEARING BALL

19

6696898

WASHER

20

6694112

RING SNAP

21

7012977

SHAFT

22

6694249

BEARING BALL

23

7012979

SHAFT, GEAR

24

6694241

BEARING BALL

25

6695456

BEARING BALL

26

7002533

COUPLER

27

6694199

PIN SPRING

28

HOUSING, MIDDLE See Illustration MID CASE GROUP/ CT445BM-T155A

29

COVER, BEARING See Illustration MID CASE GROUP/ CT445BM-T155A
