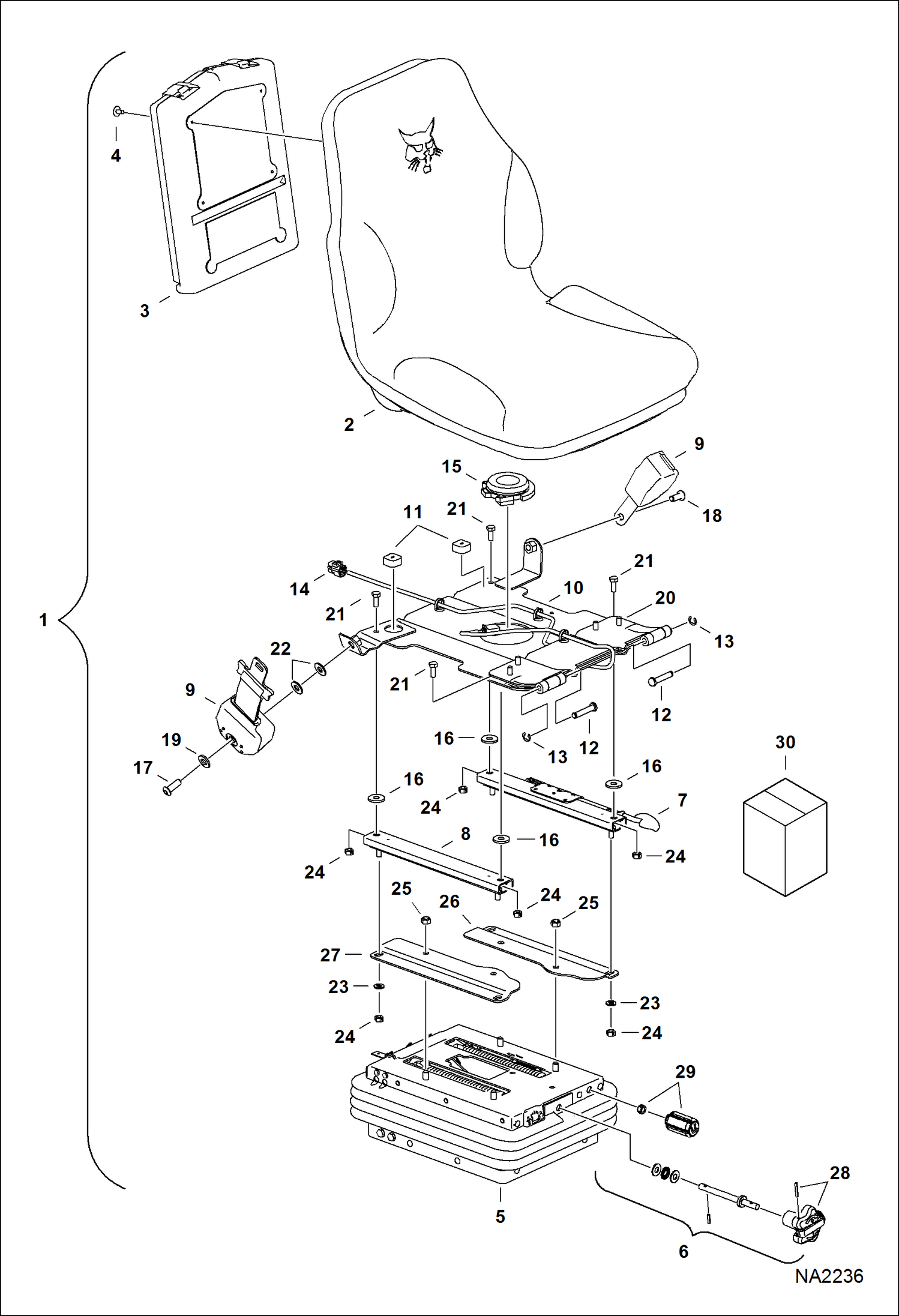

Запчасти Bobcat CT335 OPERATOR SEAT MAIN FRAME

1

7165575

SEAT, DELUXE Ref. 2-30 - Was 7175575 - D

2

7010206

SEAT

3

6686150

BOX

4

7010209

TREE MOUNT

5

7020351

KIT, SUSPENSION ASSY W/Ref. 6 - Was 7010205

6

7020239

KIT, KNOB W/CRANK W/Ref. 28 & 29

7

SLIDE NLA - adjuster W/handle - Order Ref. 30 slide kit - Was 7010208

8

SLIDE NLA - slave - Order Ref. 30 slide kit - Was 6690643

9

7010207

BELT, SEAT set

10

7010204

PLATE seat tilt - W/Ref. 11-14

11

7010219

BUMPER, RUBBER

12

7010216

PIN

13

7010217

CLIP

14

7010218

HARNESS

15

7010213

SENSOR, SEAT

16

6683864

WASHER

17

27CM1030

BOLT

18

27CM1025

BOLT

19

6683865

WASHER

20

1CM816

BOLT

21

1CM820

BOLT

22

7010212

WASHER

23

7010211

WASHER

24

7010210

NUT, LOCK

25

86D6

NUT

26

BRACKET, LH NSS

27

BRACKET, RH NSS

28

7015529

KNOB, ADJUSTMENT WEIGHT

29

7020241

KNOB, ADJUSTMENT HEIGHT

30

6692546

SLIDE KIT Ref. 7 & 8
