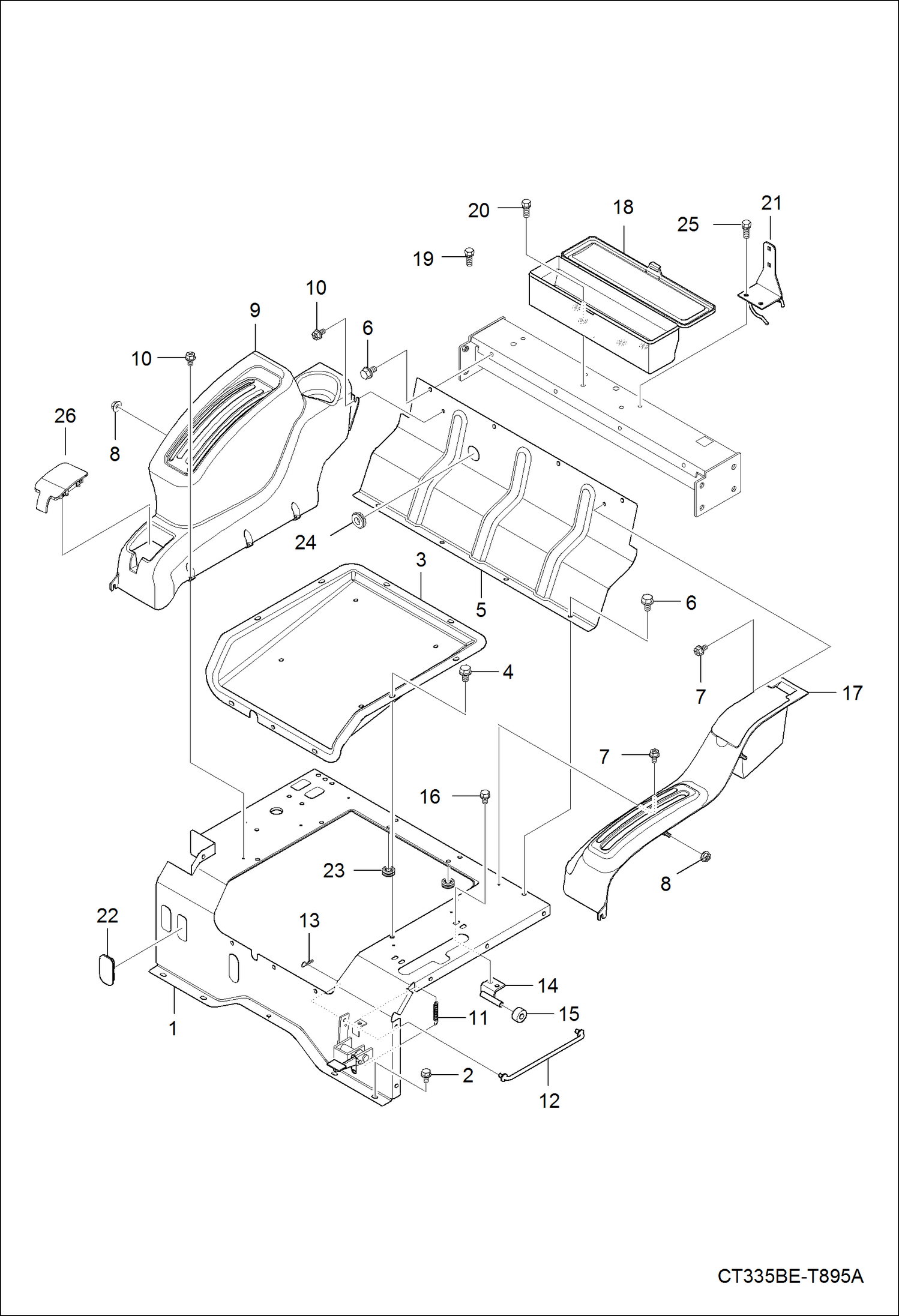

Запчасти Bobcat CT335 SEAT FLOOR GROUP MAIN FRAME

1

7001988

COVER, SEAT FLOOR

2

6694027

BOLT FLANGE 8 mm x 16 mm long - was 20 mm long - Was 6695569 - B

3

7013085

PLATE, SUPPORT SEAT Was 7002029 - B

4

6694027

BOLT FLANGE 8 mm x 16 mm long - was 20 mm long - Was 6695569 - B

5

7002332

COVER, REAR

6

6694027

BOLT FLANGE 8 mm x 16 mm long - was 20 mm long - Was 6695569 - B

7

6695586

BOLT FLANGE

8

6696258

NUT FLANGE

9

7002023

GUIDE, LEVER RH

10

6695586

BOLT FLANGE

11

7002307

SPRING, RETURN PEDAL

12

7002026

ROD, DIFF SET

13

6694211

PIN, SNAP

14

7002906

BRACKET Was 7002508 - A

15

7002124

BUSHING, CUSHION

16

6694027

BOLT FLANGE 8 mm x 16 mm long

17

7002008

GUIDE, LEVER LH assy

17

7002539

COVER

18

7002437

BOX, TOOL

19

6693974

BOLT

20

6694027

BOLT FLANGE 8 mm x 16 mm long

21

7013080

BRACKET W/hook

21

7002510

BRACKET W/O hook

22

7002540

COVER

23

6696060

GROMMET

24

6697308

GROMMET

25

6694027

BOLT FLANGE

26

7020873

COVER
