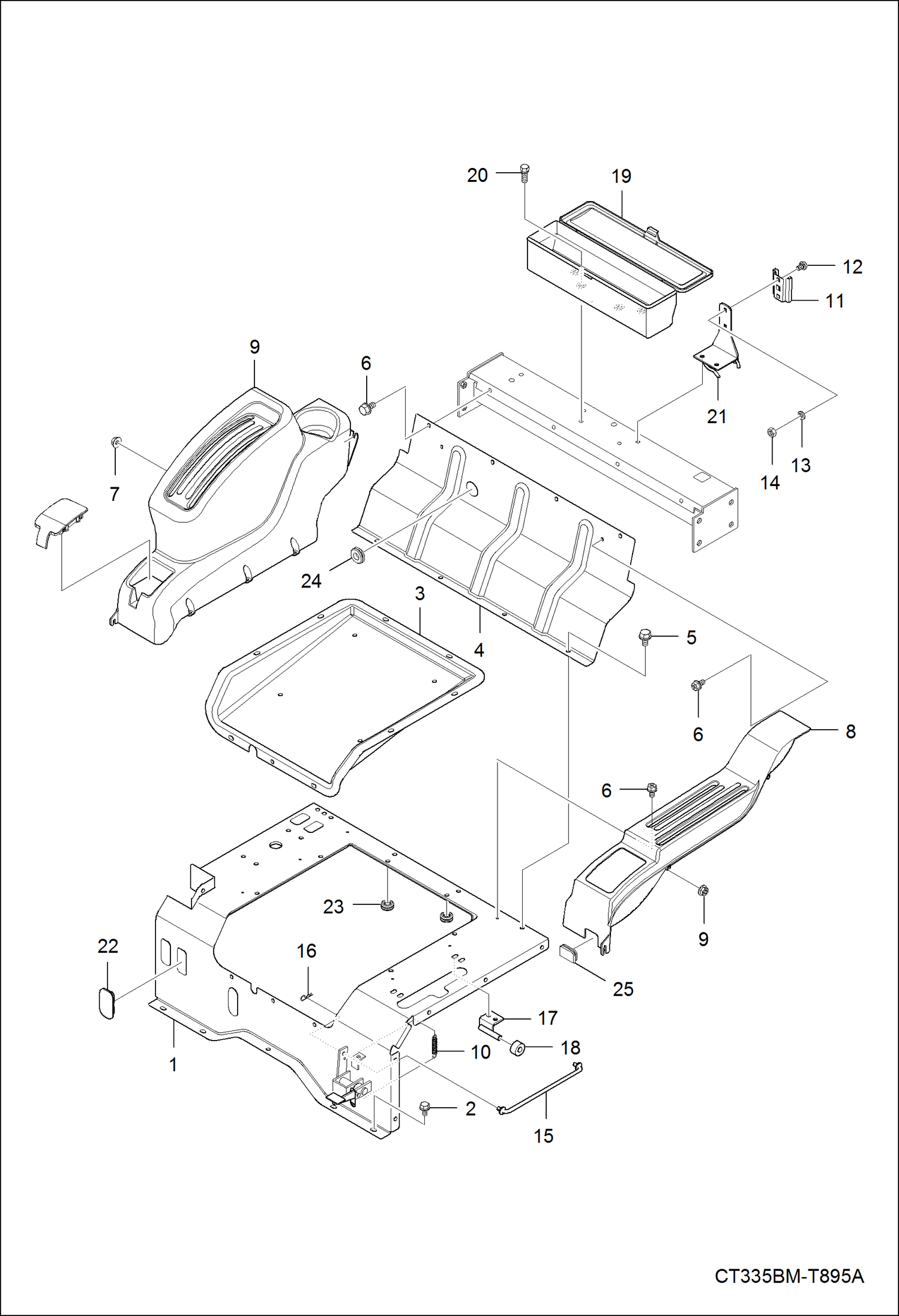

Запчасти Bobcat CT335 SEAT FLOOR GROUP MAIN FRAME

1

7013030

COVER, SEAT FLOOR

2

6695569

BOLT FLANGE

3

7013085

PLATE, SUPPORT SEAT

4

7002332

COVER, REAR

5

6694027

BOLT FLANGE

6

6695586

BOLT FLANGE

7

6696258

NUT FLANGE

8

7013037

GUIDE, LEVER

9

7002023

GUIDE, LEVER RH

10

7002307

SPRING, RETURN PEDAL

11

7002509

BRACKET

12

7002643

SCREW

13

6697775

WASHER SPRING

14

6694053

NUT

15

7013051

ROD, DIFF SET

16

6694211

PIN, SNAP

17

7013031

BRACKET

18

7013270

BUSHING, CUSHION

19

7002437

BOX, TOOL

20

6693974

BOLT

21

7013080

BRACKET

22

7002540

COVER

23

6696060

GROMMET

24

6697308

GROMMET

25

7012954

CAP, SEALING
