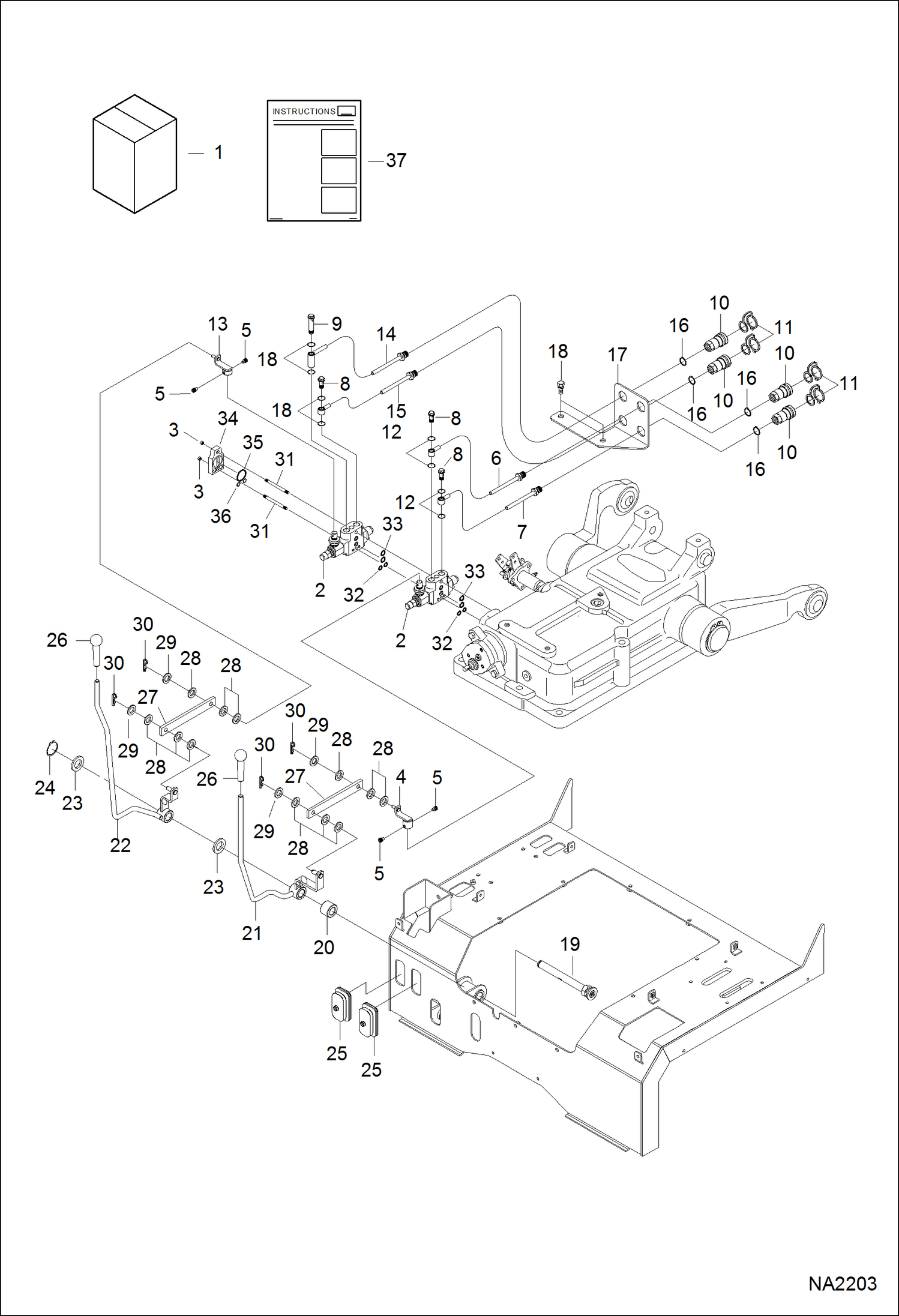

Запчасти Bobcat CT335 REAR AUX KIT (Dual) ACCESSORIES & OPTIONS

1

7173884

KIT, AUX REAR DUAL W/O detent - Ref. 2-33 & 37

1

KIT, AUX REAR DUAL See Illustration REAR AUX VALVE DETENT KIT/ NA1403 - NLA - W/detent - Order 7173884 dual rear aux kit & (2) 7172970 detent kit

2

7010049

VALVE, CONTROL W/O detent

2

VALVE, DOUBLE ACTING See Illustration REAR AUX VALVE DETENT KIT/ NA1403 - NLA - W/detent - not in kit - Order 7010049 valve & 7172970 detent kit - Was 7002137 - A

3

6697461

NUT, LOCK

4

7002114

LEVER, CONTROL

5

6696566

SCREW SET

6

7002239

TUBELINE, HYD

7

7002240

TUBELINE, HYD

8

6695562

BOLT JOINT

9

6697070

BOLT JOINT

10

7002532

COUPLER

11

7002145

CAP, DUST

12

6694137

O-RING

13

7002113

LEVER, CONTROL

14

7002241

TUBELINE, HYD

15

7002242

TUBELINE, HYD

16

7000307

RING, SNAP

17

7003212

SUPPORT, COUPLER

18

6693978

BOLT

19

7003124

SHAFT

20

7002849

SPACER Was 7002664 - A

21

7010050

LEVER, CONTROL LH

22

7010051

LEVER, CONTROL RH

23

6696901

WASHER

24

6697562

RING SNAP

25

7003115

BOOT, RUBBER

26

7002702

HANDLE, GRIP

27

7003408

ROD

28

7003392

WASHER

29

6697774

WASHER

30

6697496

PIN SNAP

31

7002684

STUD

32

7010701

O-RING

33

6694135

SEAL O RING

34

7002541

COVER not in kit

35

7002611

ORING not in kit

36

7002596

ORING not in kit

37

6987317

INSTRUCTIONS
