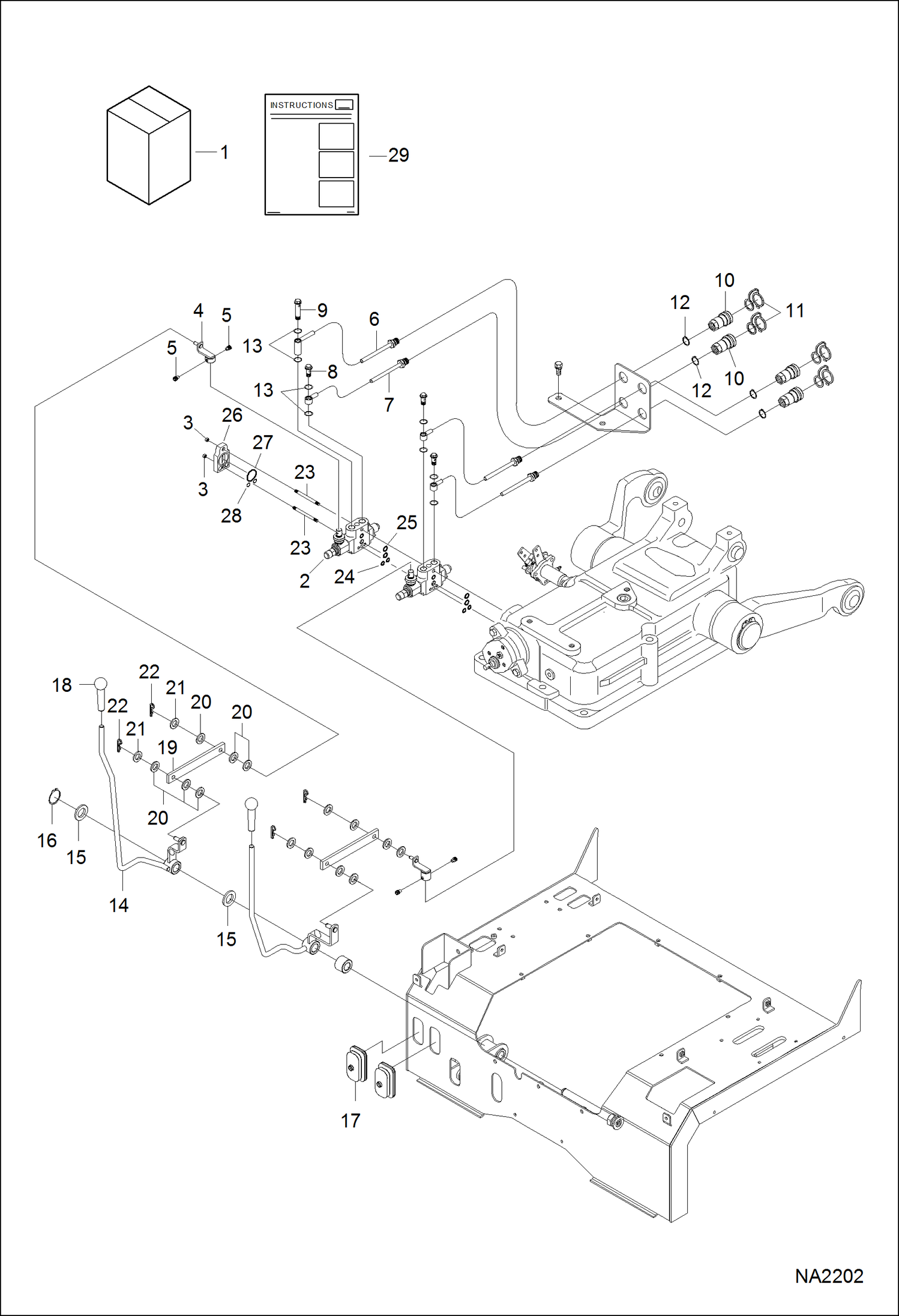

Запчасти Bobcat CT335 REAR AUX KIT (Add On) ACCESSORIES & OPTIONS

1

7173883

KIT, AUX REAR SECOND W/O detent - Ref. 2-23 & 27

1

KIT, AUX REAR SECOND See Illustration REAR AUX VALVE DETENT KIT/ NA1403 - W/detent - Order 7173883 second rear aux kit & 7172970 detent kit

2

7010049

VALVE, CONTROL W/O detent

2

VALVE, DOUBLE ACTING See Illustration REAR AUX VALVE DETENT KIT/ NA1403 NLA - W/detent - not in kit - Order 7010049 valve & 7172970 kit - Was 7002137 - A

3

6697461

NUT, LOCK

4

7002113

LEVER, CONTROL

5

6696566

SCREW SET

6

7002241

TUBELINE, HYD

7

7002242

TUBELINE, HYD

8

6695562

BOLT JOINT

9

6697070

BOLT JOINT

10

7002532

COUPLER

11

7002145

CAP, DUST

12

7000307

RING, SNAP

13

6694137

O-RING

14

7010051

LEVER, CONTROL

15

6696901

WASHER

16

6697562

RING SNAP

17

7002639

ROD

18

7002702

HANDLE, GRIP

19

7003408

ROD

20

7003392

WASHER

21

6697774

WASHER

22

6697496

PIN SNAP

23

7002684

STUD

24

7010701

O-RING

25

6694135

SEAL O RING

26

7002541

COVER not in kit

27

7002611

ORING not in kit

28

7002596

ORING not in kit

29

6987319

INSTRUCTIONS
