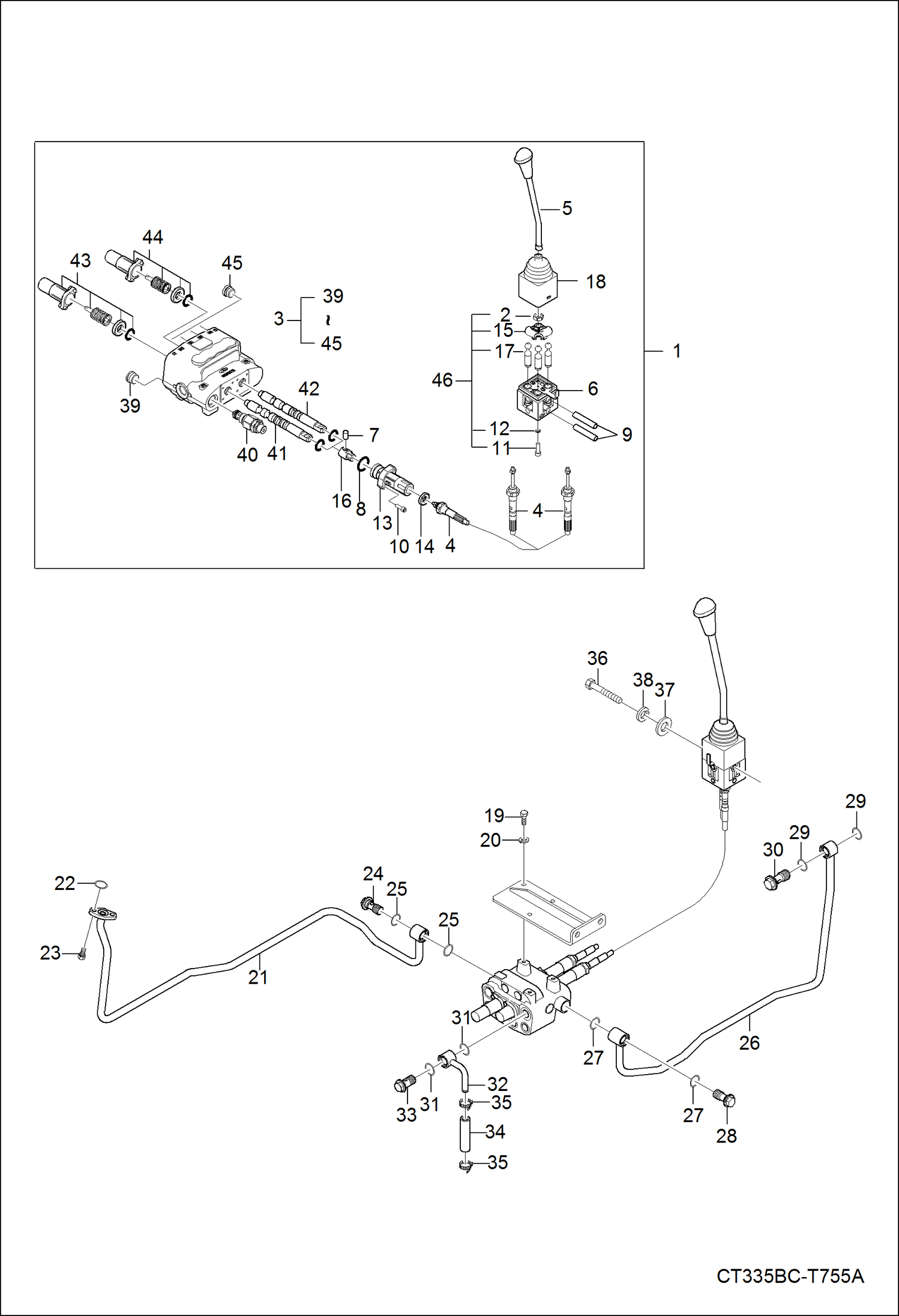

Запчасти Bobcat CT335 JOYSTICK VALVE GROUP ACCESSORIES & OPTIONS

1

VALVE, JOYSTICK ASSY NLA - Order individual components Ref. 2-18 - Was 7003213 - A

2

7008988

NUT Was 6697462 - A

3

7012834

VALVE, JOYSTICK Ref. 39-45 - Was 7000453 - A

4

7003048

CABLE, PUSH-PULL

5

7002252

HANDLE, JOYSTICK

6

7002250

HOUSING, JOYSTICK

7

6696332

PIN

8

7000818

O RING

9

7000819

RING

10

7000820

BOLT

11

7000821

BOLT

12

7000822

WASHER, SPRING

13

7000823

ENDCAP

14

7000813

WASHER, SEAL

15

7000825

SELECTOR

16

7000826

CONNECTOR

17

7000827

PISTON, VALVE JOYSTICK

18

7000828

BOOT, RUBBER

19

6695575

BOLT

20

6697775

WASHER SPRING

21

7002236

TUBELINE, HYD

22

6694136

O-RING

23

6697054

BOLT 8 mm x 25 mm long- Was 6697054

23

6697056

BOLT 8 mm x 25 mm long

24

6696165

BOLT JOINT

25

6694137

O-RING

26

7002235

TUBELINE, HYD

27

6694137

O-RING

28

6696165

BOLT JOINT

29

6694137

O-RING

30

6696165

BOLT JOINT

31

6694137

O-RING

32

7002231

TUBELINE, HYD

33

6695562

BOLT JOINT

34

7002230

HOSE, RETURN

35

7000814

CLAMP, HOSE

36

6695525

BOLT

36

6695506

BOLT, W/WASHER W/Ref. 38

37

6697774

WASHER

38

6697775

WASHER SPRING

39

6696449

PLUG

40

6696890

VALVE RELIEF

41

6696725

SPOOL

42

6696726

SPOOL Use W/O front aux hyd

42

7178632

SPOOL, VALVE Use W/front aux hyd

43

6696727

CAP, END ASSY spool positioner

44

6696728

BONNET, DETENT HYD VALVE spool positioner - Use W/O front aux hyd

44

7178633

BONNET, DETENT HYD VALVE Use W/front aux hyd

44

7192353

BONNET, DETENT HYD VALVE Use W/front aux hyd

45

6696448

PLUG

46

7003047

KIT, SELECTOR
