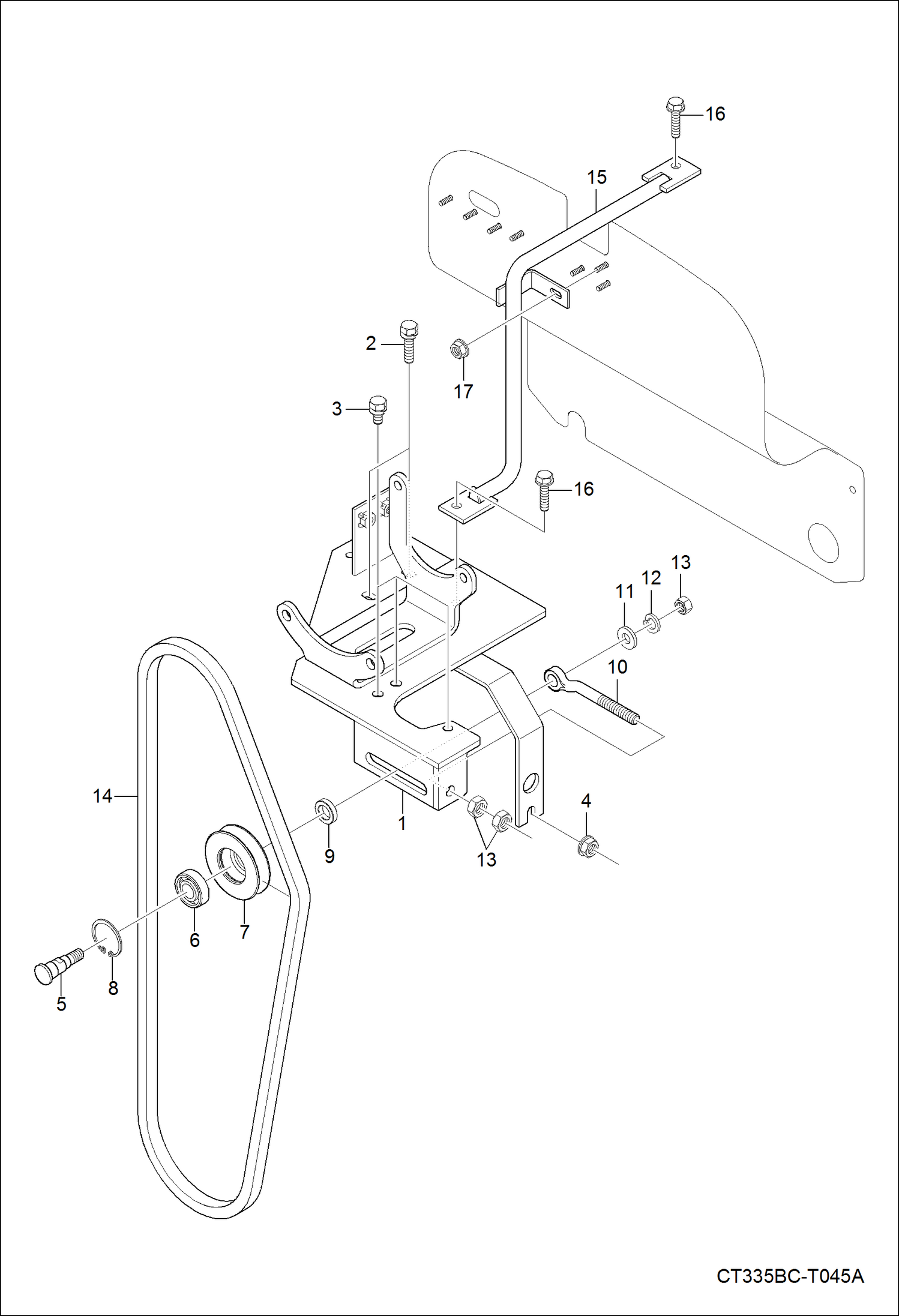

Запчасти Bobcat CT335 A/C BRACKET GROUP POWER UNIT

1

7003067

BRACKET, COMPRESSOR A/C

2

6697056

BOLT

3

6697053

BOLT

4

6694062

NUT FLANGE

5

7003059

BOLT, SHOULDER

6

7003061

BEARING, BALL

7

7003055

PULLEY, IDLER

8

6694097

RING SNAP

9

7003052

SPACER

10

7003060

BOLT

11

7003053

WASHER

12

6694093

WASHER SPRING

13

7003040

NUT

14

7003394

BELT, COMPRESSOR A/C Was 7003134 - B,D

15

7003069

HOLDER, SHUTTLE

16

6695569

BOLT FLANGE

17

6696258

NUT FLANGE
