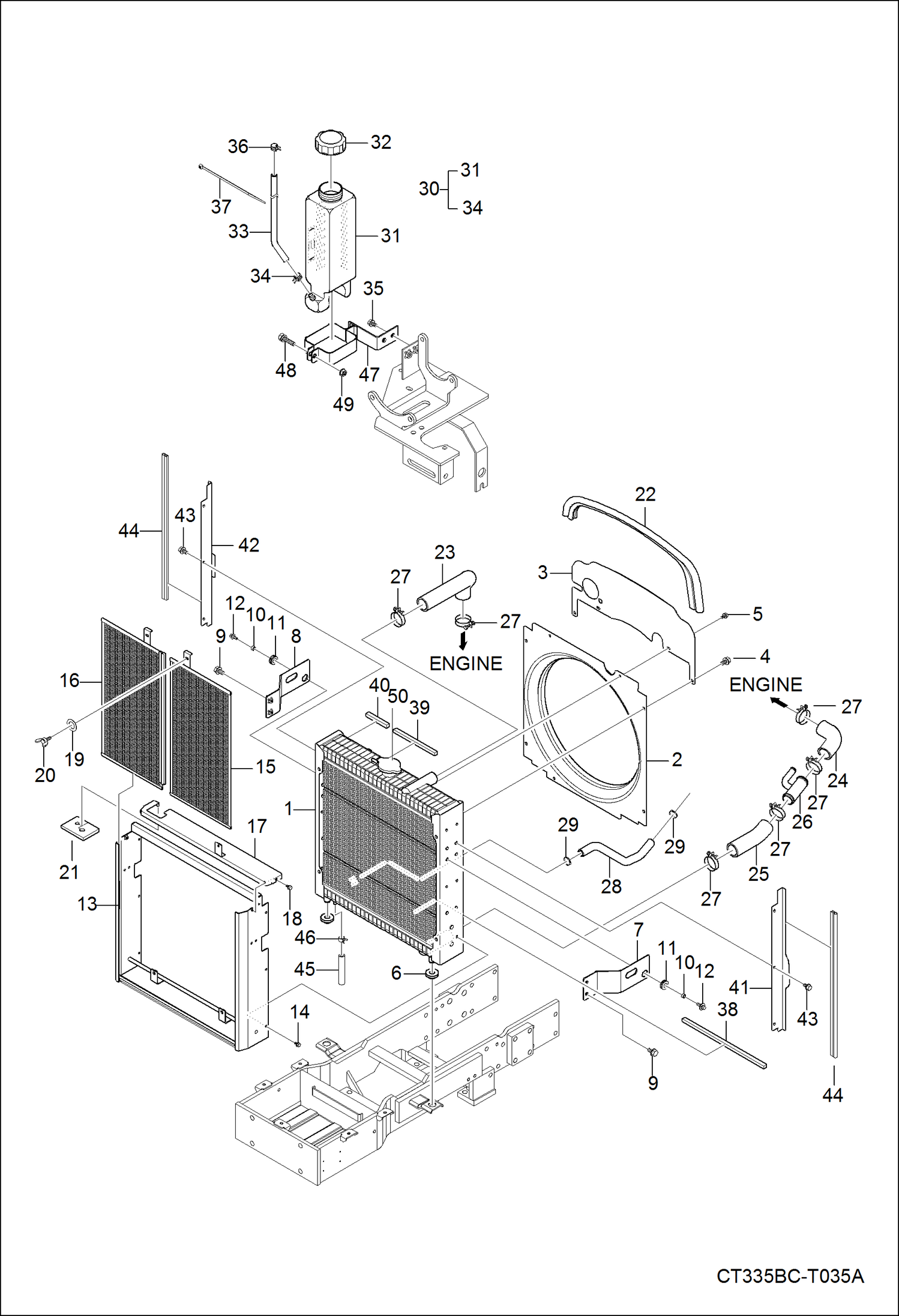

Запчасти Bobcat CT335 RADIATOR GROUP POWER UNIT

1

7013126

EXCHANGER, WATER RADIATOR W/Ref. 50 - Was 7002450 - A

2

7002163

SHROUD, FAN

3

7003087

PLATE

4

6695586

BOLT FLANGE

5

6695570

BOLT, FLANGE

6

7000278

CUSHION

7

7002158

BRACKET, EXCHANGER

8

7002159

BRACKET, EXCHANGER

9

6695569

BOLT FLANGE

10

6695127

SPACER

11

6695128

GROMMET

12

6693977

BOLT

13

7003082

GUAGE, OIL

14

6695586

BOLT FLANGE

15

7003080

SCREEN, DEBRIS

16

7003081

SCREEN, DEBRIS

17

7003083

COVER

18

6695586

BOLT FLANGE

19

6697779

WASHER

20

7000306

BOLT

21

7003088

FOAM

22

7002652

SEAL

23

7003427

HOSE, WATER FORMED Was 7003084 - B

24

7001992

HOSE, WATER FORMED Was 7003085 - A

25

7003086

HOSE, WATER FORMED

26

7003079

PIPE, WATER

27

6695444

CLAMP HOSE

28

7001990

HOSE, HEATER FORMED

29

7012856

CLAMP, HOSE Was 7000282 - A

30

7002449

TANK, WATER assy - Ref. 31-34

31

7002294

TANK, WATER

32

7002187

CAP

33

7002216

HOSE, HEATER

34

7002218

CLAMP, HOSE

35

6694027

BOLT FLANGE

36

6694323

CLAMP, HOSE

37

6695446

BAND

38

7002550

FOAM

39

7002551

FOAM

40

7002552

FOAM

41

7002376

COVER, SIDE LH

42

7002379

COVER, SIDE RH

43

6695586

BOLT FLANGE

44

7002653

SEAL

45

7000815

HOSE 1, FUEL

46

6694297

CLAMP, HOSE Was 7002219 - A

47

7002504

BRACKET

48

6693975

BOLT

49

7002174

NUT, FLANGE

50

7002330

CAP, RADIATOR
